Compression latches for railway

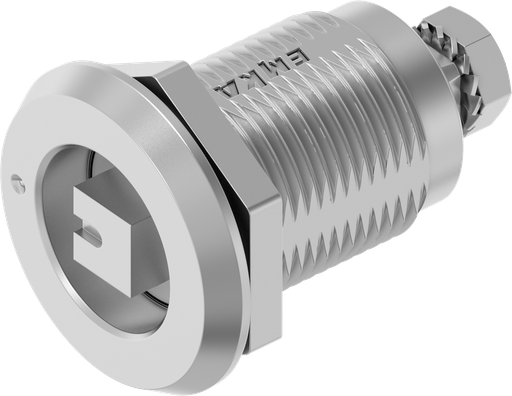

Compression latch railway version, Stainless steel AISI 316; 1000-SU751

with stainless steel nut

Compression latch square 8 railway version, Stainless steel AISI 316; 1000-SU751-01

with stainless steel nut

Compression latch square female 7 with pin and marking, Stainless steel AISI 316; 1000-SU751-05

with stainless steel nut

Compression latch railway version with marking, Stainless steel AISI 316; 1000-SU785

with stainless steel nut

Compression latch square female 7.5 with pin and marking, Stainless steel AISI 316; 1000-SU785-05

with stainless steel nut

Compression latch triangular 7 with marking, left version, Stainless steel AISI 316; 1000-SU925-02LIPH

with stainless steel nut

Compression latch with tube and marking, right version, Stainless steel AISI 316; 1000-SU948-RE

with stainless steel nut

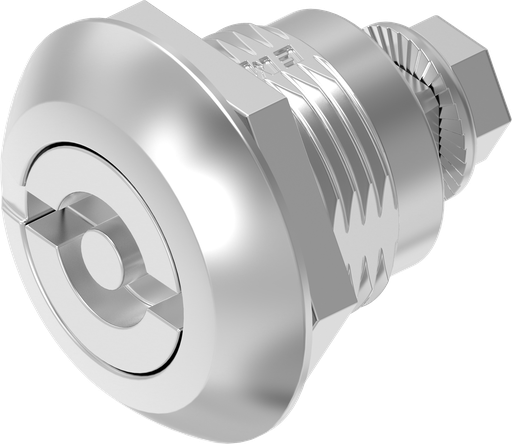

Compression latch double bit 5, Stainless steel AISI 316; 1000-U748-01

with stainless steel nut

Compression latch with adjustable cam height, square 8, Stainless steel AISI 316; 1000-U755-02

with stainless steel nut

Compression latch with slot 2 x 4, Stainless steel AISI 316; 1000-U777-01

with stainless steel nut

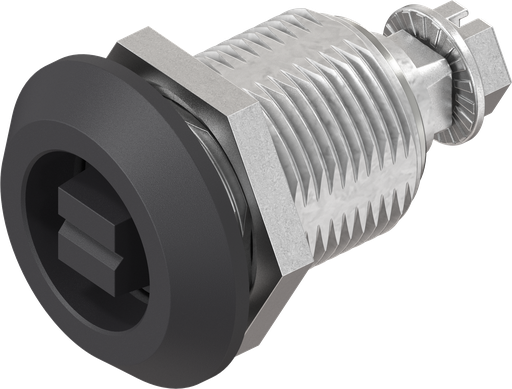

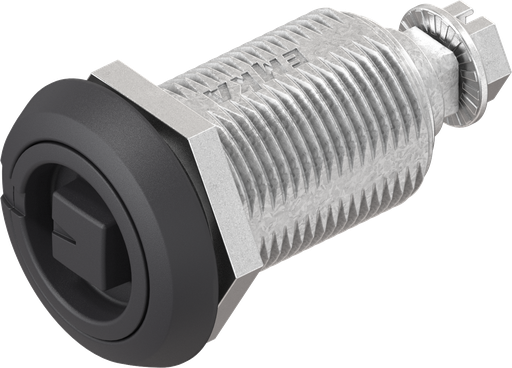

Compression latch railway version, Zinc die black powder-coated; 1000-U831

with nut

Compression latch railway version, Stainless steel AISI 316; 1000-U831-01

with stainless steel nut

Compression latch, square 8, Stainless steel AISI 316; 1000-U834-REPH

with stainless steel nut

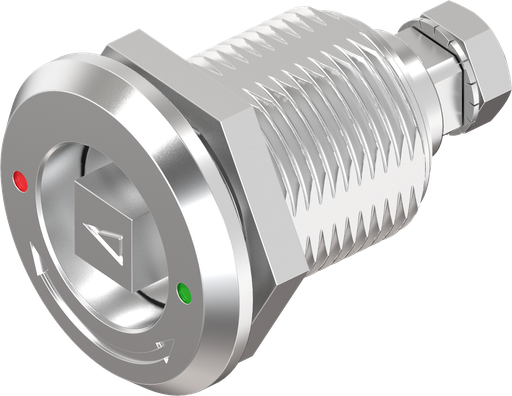

Compression latch railway version with optical opening indicator, Zinc die black powder-coated; 1000-U848

with nut

Compression latch railway version with optical opening indicator, Zinc die chrome-plated; 1000-U848-IA

with nut

Compression latch, square 8, Stainless steel AISI 316; 1000-U852-PH

with stainless steel nut

Compression latch triangular 8, Stainless steel AISI 316; 1000-U853-PH

with stainless steel nut

Compression latch double bit 5, Stainless steel AISI 316; 1000-U855-PH

with stainless steel nut

Compression latch square 8 with marking, left version, Stainless steel AISI 316; 1000-U865-LIPH

with stainless steel nut

Compression latch square 8 with marking, right version, Stainless steel AISI 316; 1000-U865-REPH

with stainless steel nut
