Control module for handles with locking system unit;
Sensor unit;

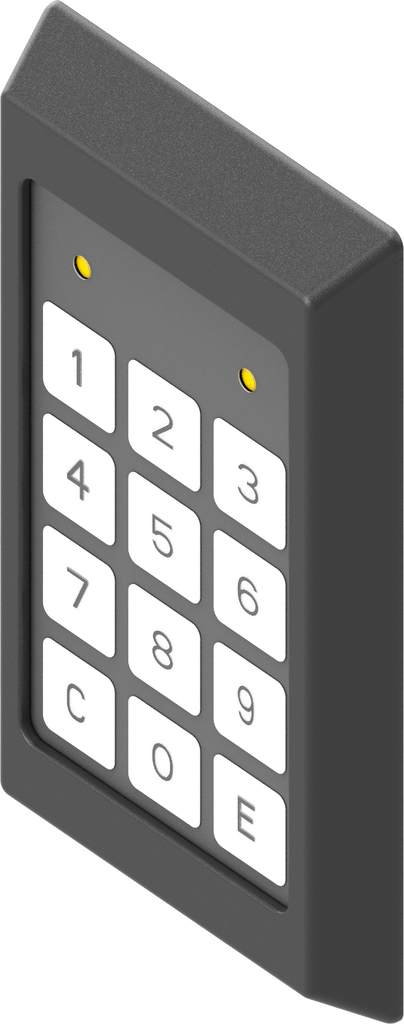

Keypad, Polyamide GF black; 3000-U8-01
Product information:
- The keypad is used in combination with a Locking Unit to locally open selected locks by entering a PIN code
- In combination with the Access Unit only the lock number is entered via the keypad while the RFID card contains the authorisation
- Alternatively, a two-factor authentication for opening a lock is possible in this constellation (personal PIN code + RFID card)
Power supply: 12 VDC, 50 mA
CAN bus ports: 2
Operating temperature: +5 ... +45 ° C
Dimensions (L x B x H): 113 x 64 x 12 mm
Scope of delivery: Connection cable 3 m RJ11
Internal Reference:
3000-U8-01
Product Type:
Electronic components
Program:
3000
Material of the module :
Polyamide GF
Surface of the module:
black
Authentication Unit:
Keypad
Stand-Alone or networked system :
Networked solution
