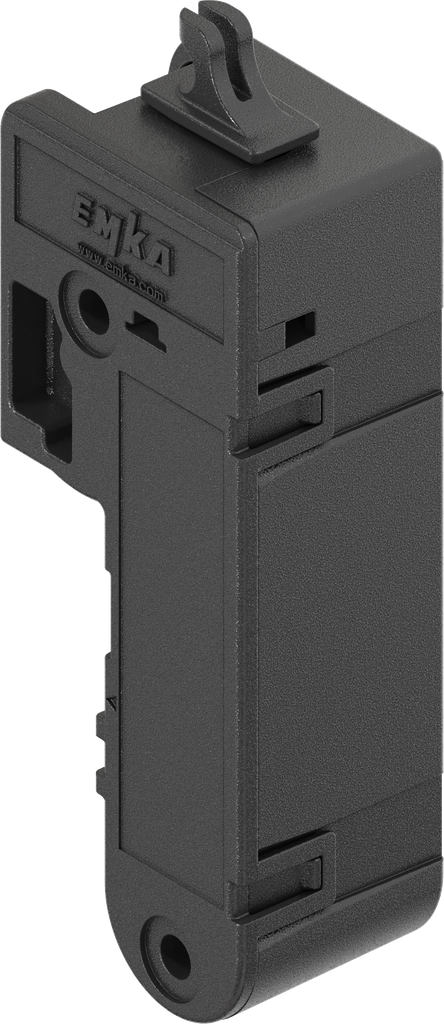

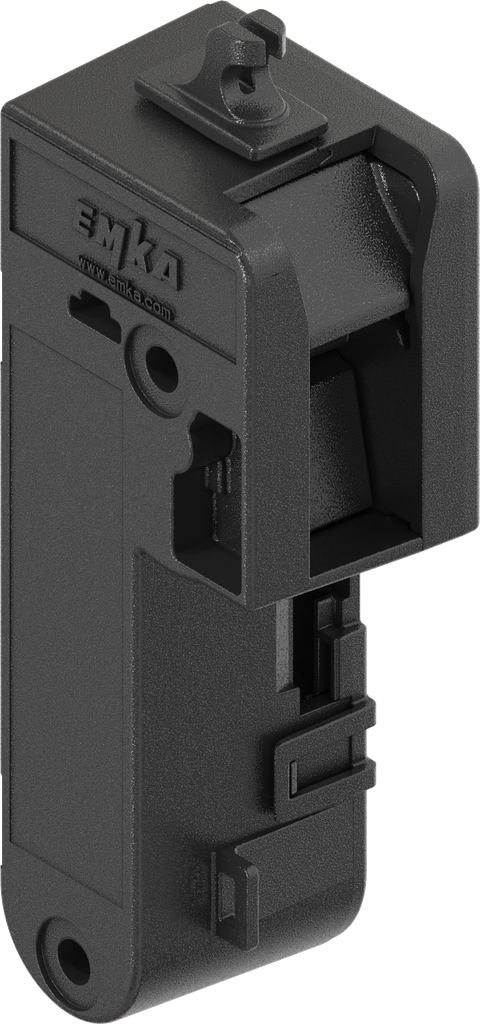

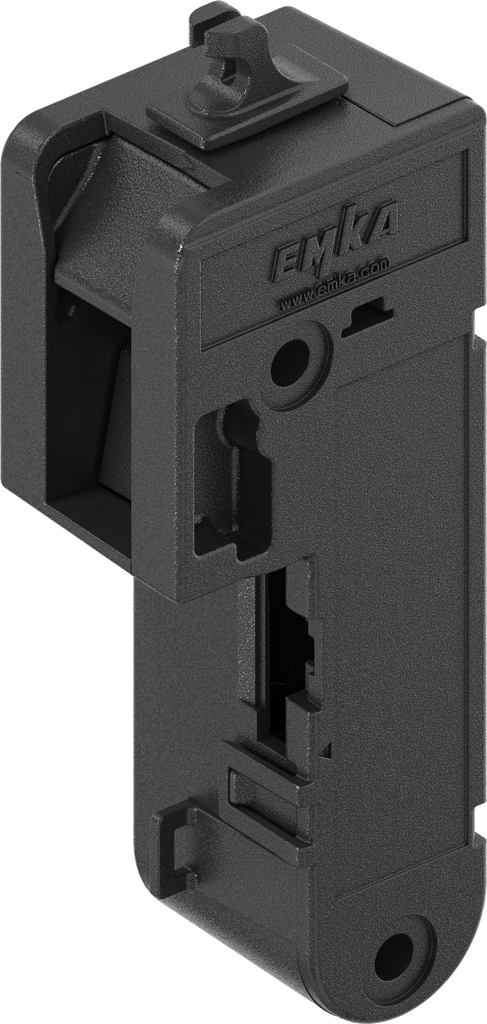

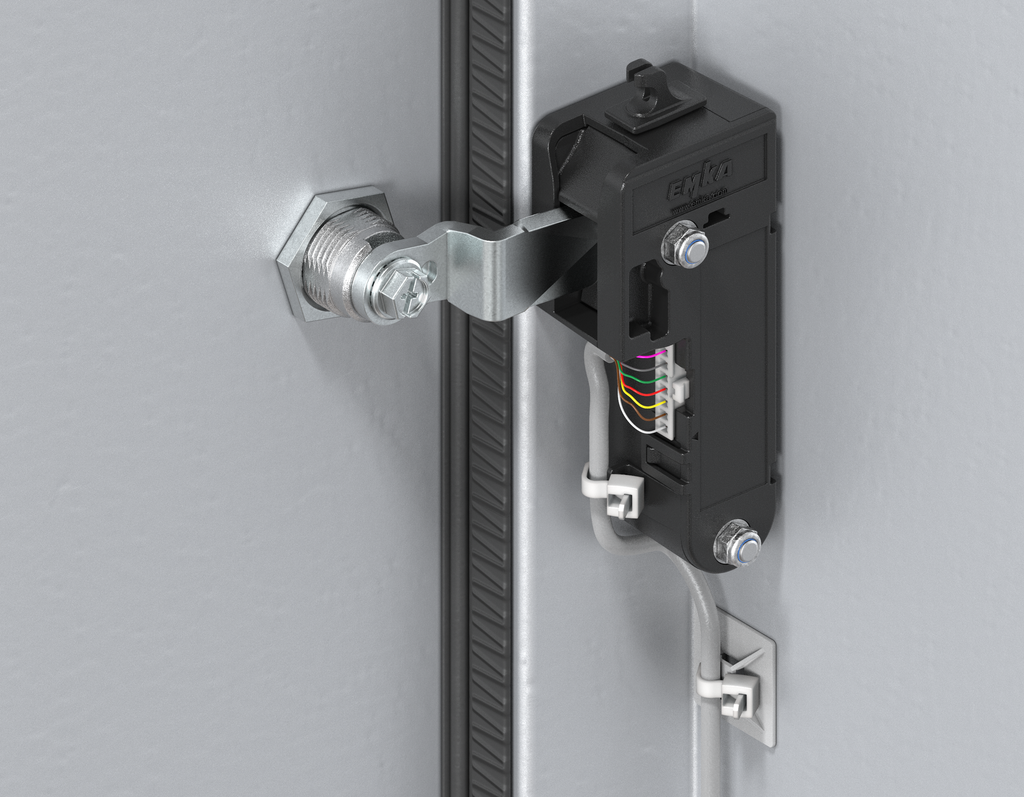

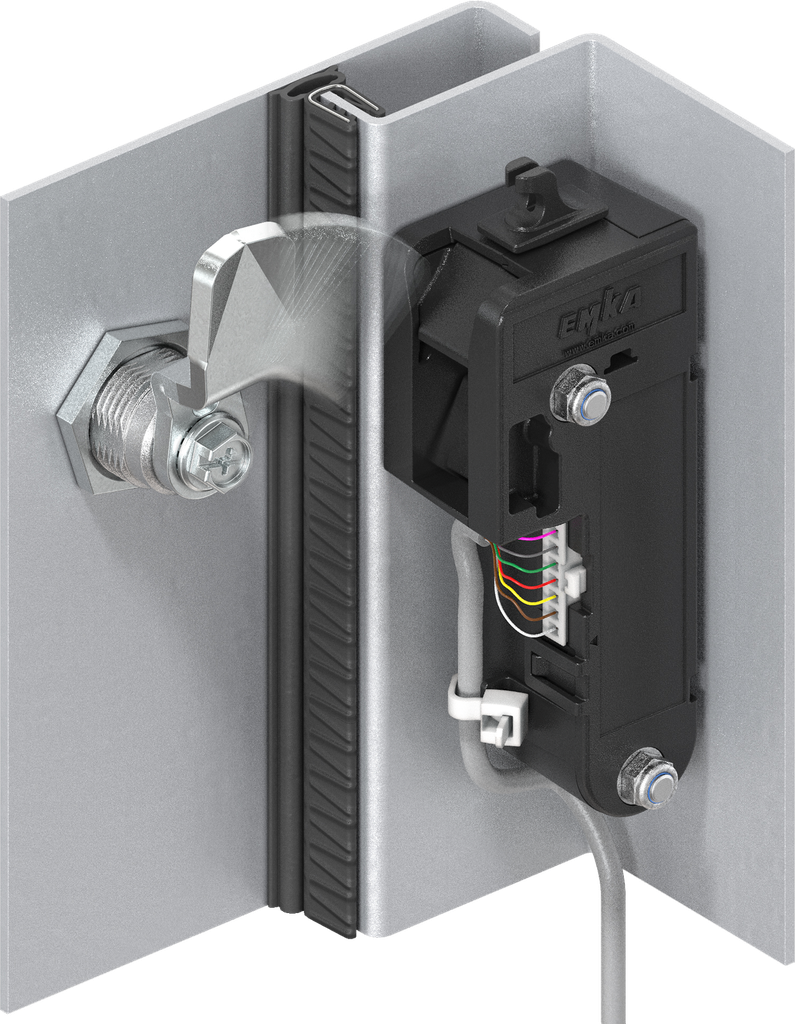

eCam electromechanical cam lock Basic, Polyamide GF black; 3000-U304-01

The electromechanical cam lock eCam is used in different application areas as locking system which is invisible from die outside.
The following versions are available:

• Basic = Cam lock without status feedback
• Basic Plus = Cam lock with status feedback
  Open collector output A1 indicates if the cam is engaged in the catch
• Energy store = Cam lock with status feedback and automatic unlock in case of power failure
  Open collector output A1 indicates if the cam is engaged in the catch
• Broad supply voltage range from 9 ... 32 V
• Open collector output for remote monitoring of the lock status
• Emergency opening in case of power failure possible via Bowden cable

  Power supply: 9 ... 32 VDC, max. 100 mA, stand-by 3 mA
  Output signals: open collector (max. 30 V, 50 mA)

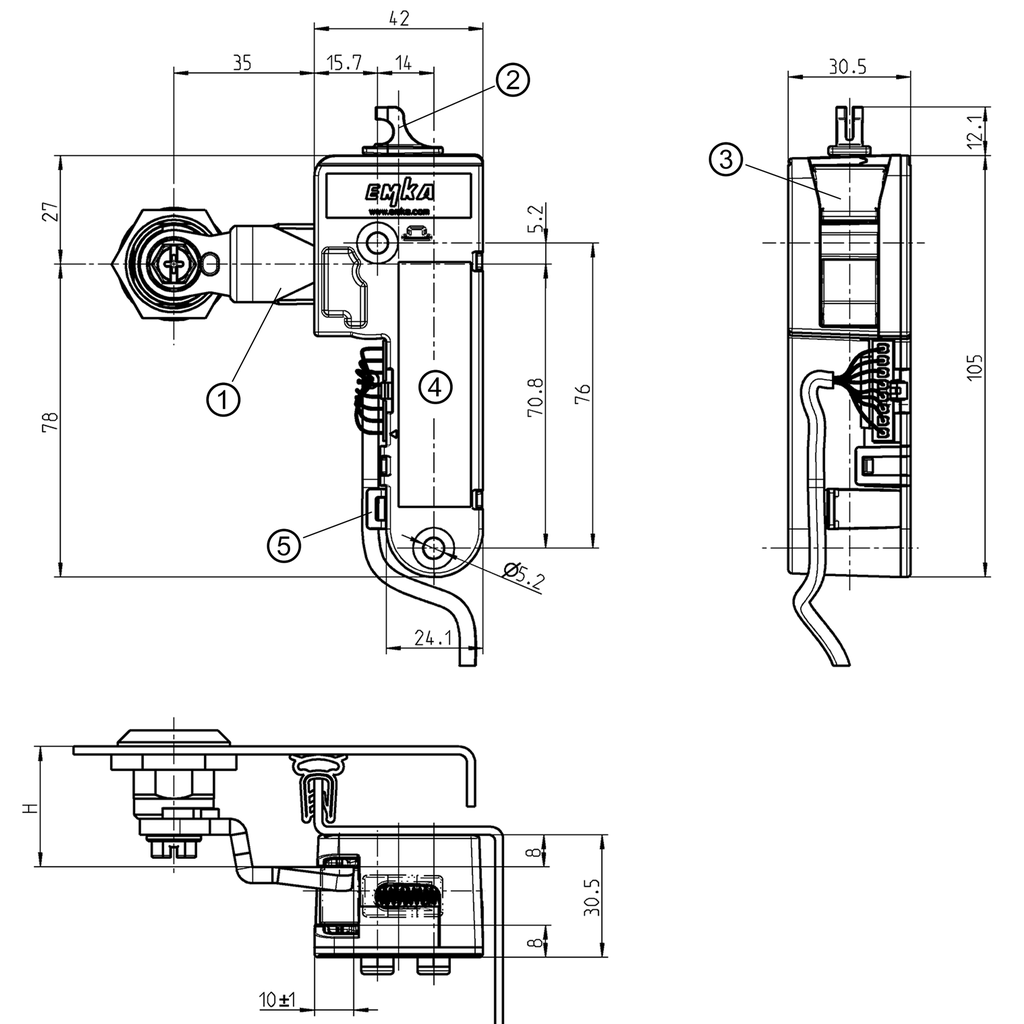

1. Cams L = 45
2. Bowden cable holder
3. Catch
4. Surface for adhesive tape
5. Loop for cable tie

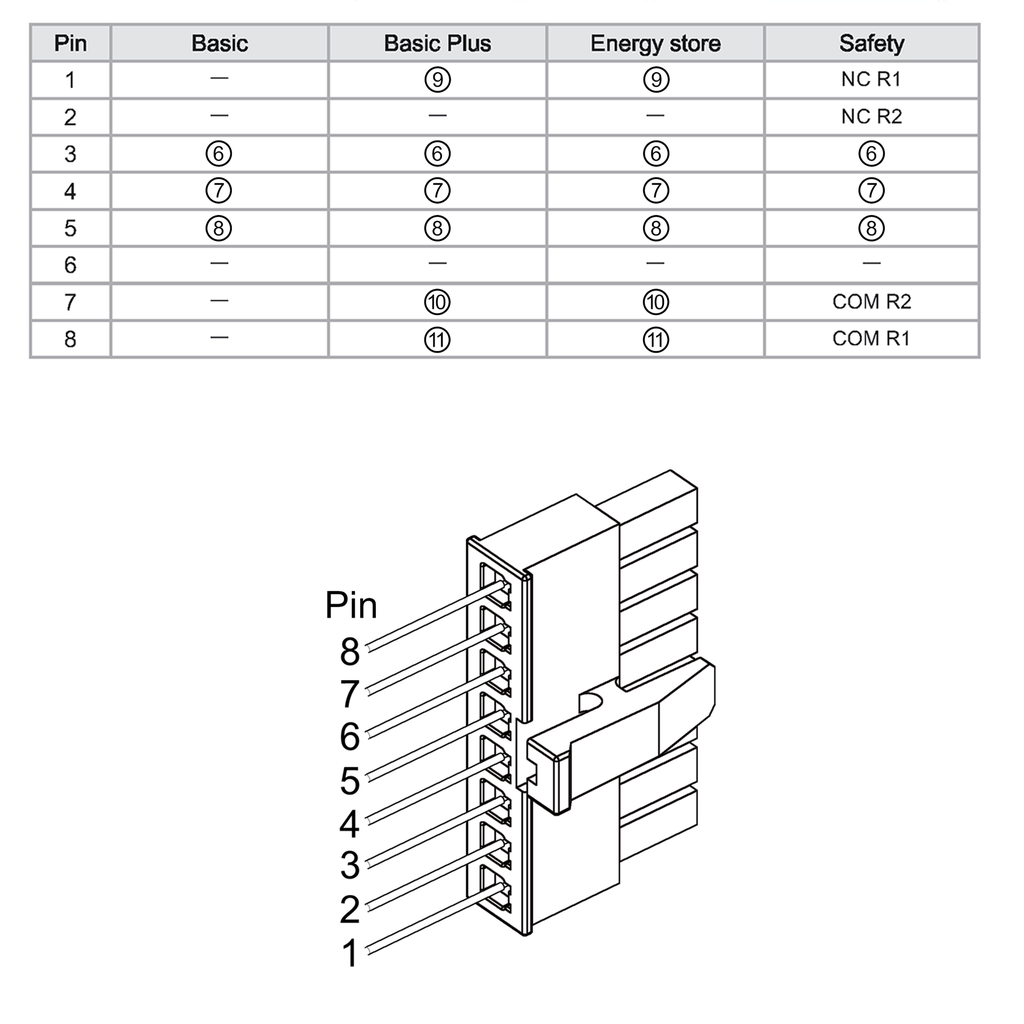

6. Control input
7. V -

8. V +
9. Output A1
10. Door contact A1
11. Door contact A2
