Locking set with insert double bit 3, Zinc die black powder-coated for outdoor use
Locking set for KABA cylinder type 1036, Zinc die black powder-coated

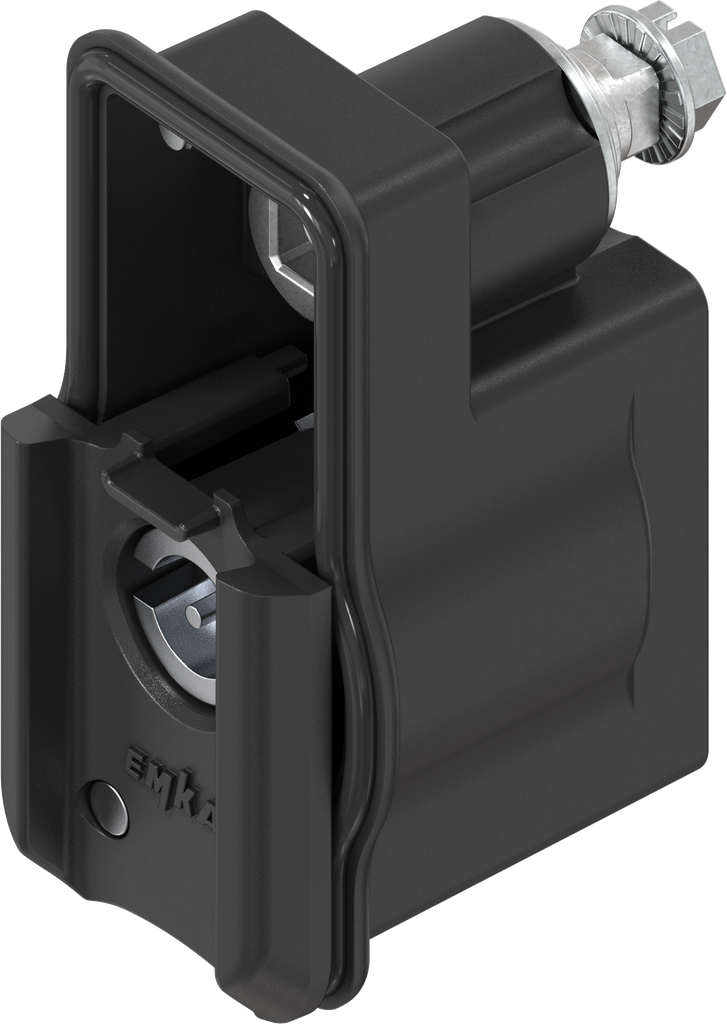

Locking set, left version, with insert double bit 3, Zinc die black powder-coated for outdoor use; 2225-U50-LI
for short version with compression function
100% original guarantee
Return within 30days
Free delivery on all orders
Product Benefits:
- Flat design
- Locking system inserts (locking sets) can be easily changed to the front
- Suitable for standard cut out
- Permanent magnet holds the cylinder cover
- Locking set made of zinc die
- Patent pending
Assembly instruction:
Easy exchange of the locking sets
By removing the two lower screws, the locking set can be easily removed to the front.
Internal Reference:
2225-U50-LI
Standards:
Protection class IP 65
Barcode:
2225-U00050-00000LI
Product Type:
Locking set
Program:
2225
Catalog sheet:
3J-160
Material of the module :
Zinc die
Surface of the module:
black powder-coated for outdoor use
Number of Possible Locking Points:
1 point
Type of actuation:
Double bit 3
Installation Position of Block:
Dish
Cloak:
Yes
Cap dimension L:
Program 2225 = 41
Locking set:
Insert
No Specifications
View All Products

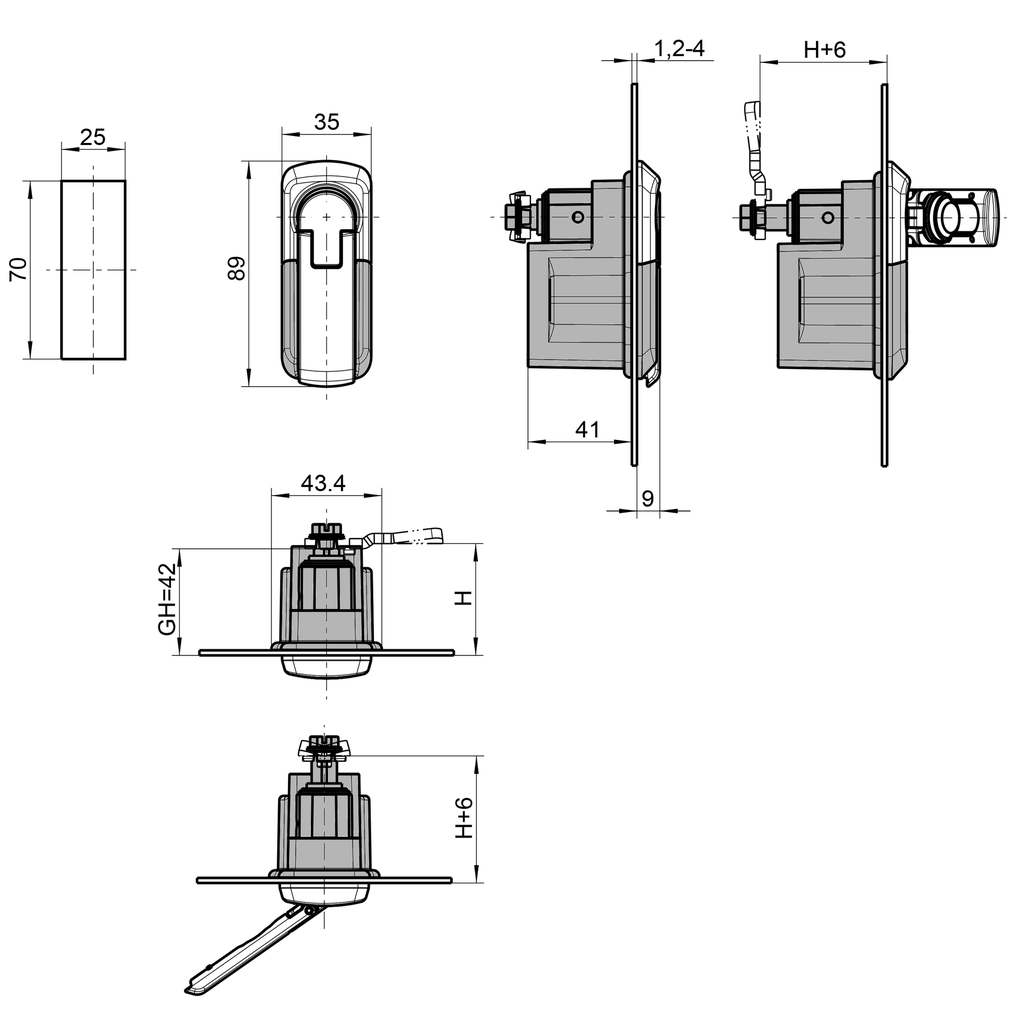

Here you can find the product data sheets and CAD files of this product
