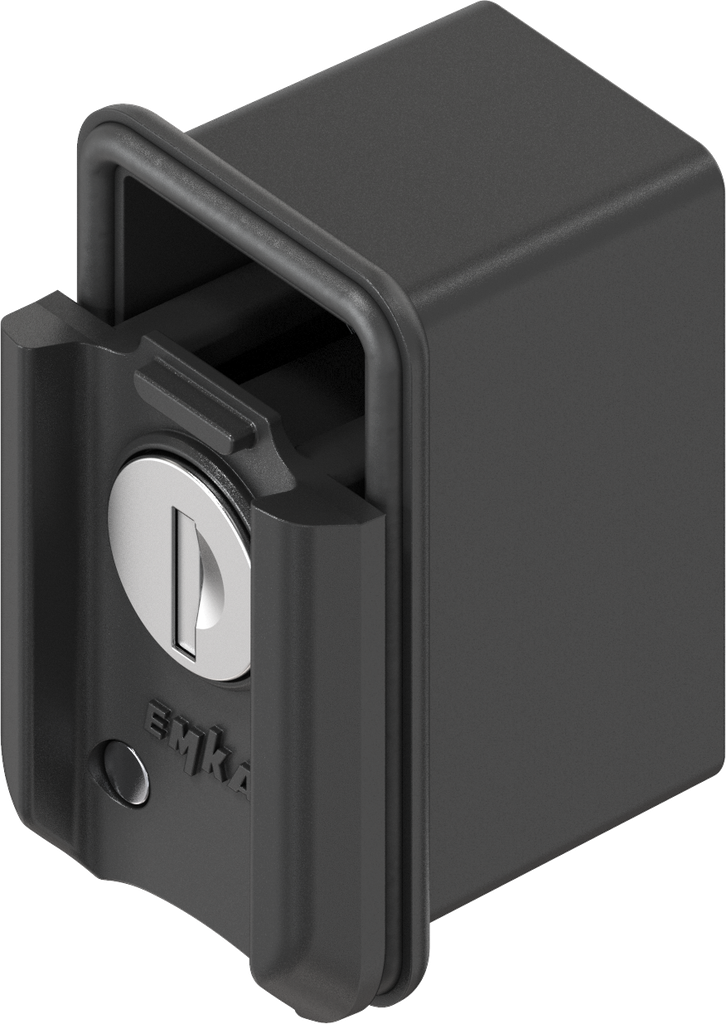

Locking set with round cylinder EK 333, Zinc die black powder-coated for outdoor use
Locking set with round cylinder, keyed different, Zinc die black powder-coated for outdoor use
Locking set with round cylinder, keyed different, Zinc die black powder-coated; 2225-U49
for long version
Product Benefits:
- Flat design Locking system inserts (locking sets) can be easily changed to the front Suitable for standard cut out Permanent magnet holds the cylinder cover Locking set made of zinc die Patent pending
- Locking system inserts (locking sets) can be easily changed to the front
- Suitable for standard cut out
- Permanent magnet holds the cylinder cover
- Locking set made of zinc die
- Patent pending
Assembly instruction:

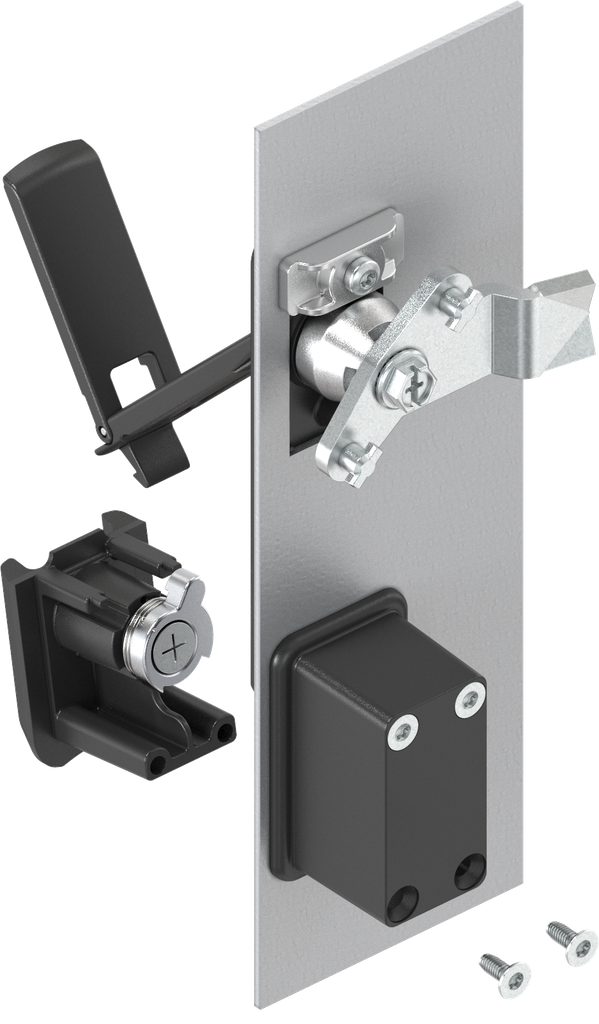

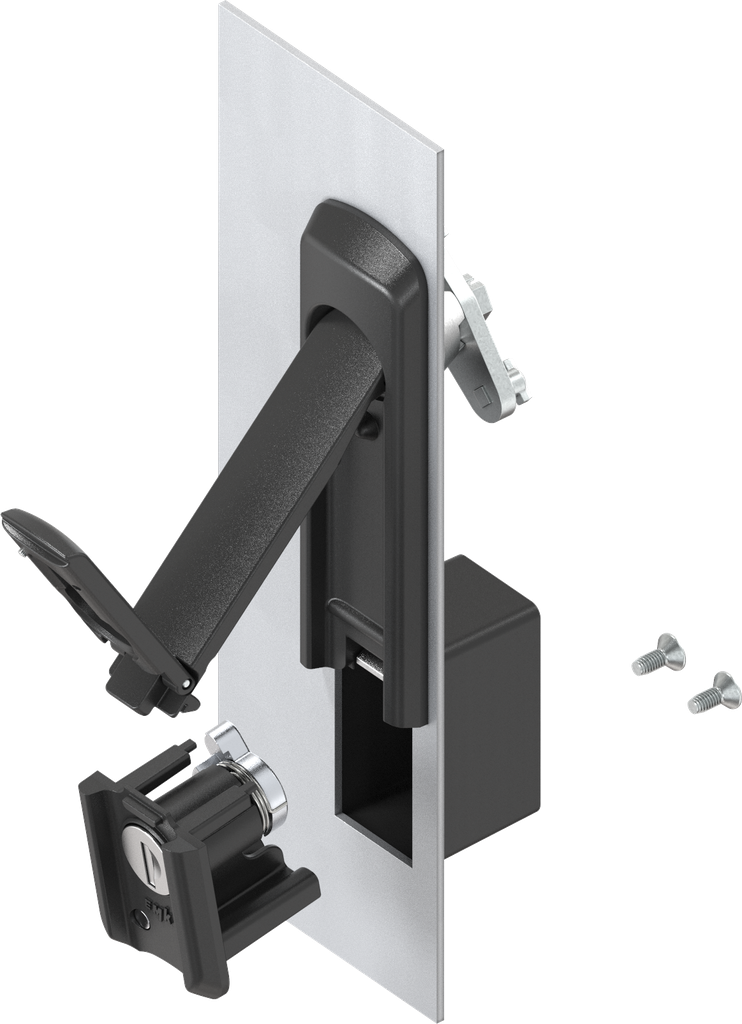

Easy exchange of the locking sets By removing the two lower screws, the locking set can be easily removed to the front.
Internal Reference:
2225-U49
Product Type:
Locking set
Program:
2225
Catalog sheet:
3J-120
Material of the module :
Zinc die
Surface of the module:
black powder-coated
Installation Position of Block:
Dish
Cloak:
Yes

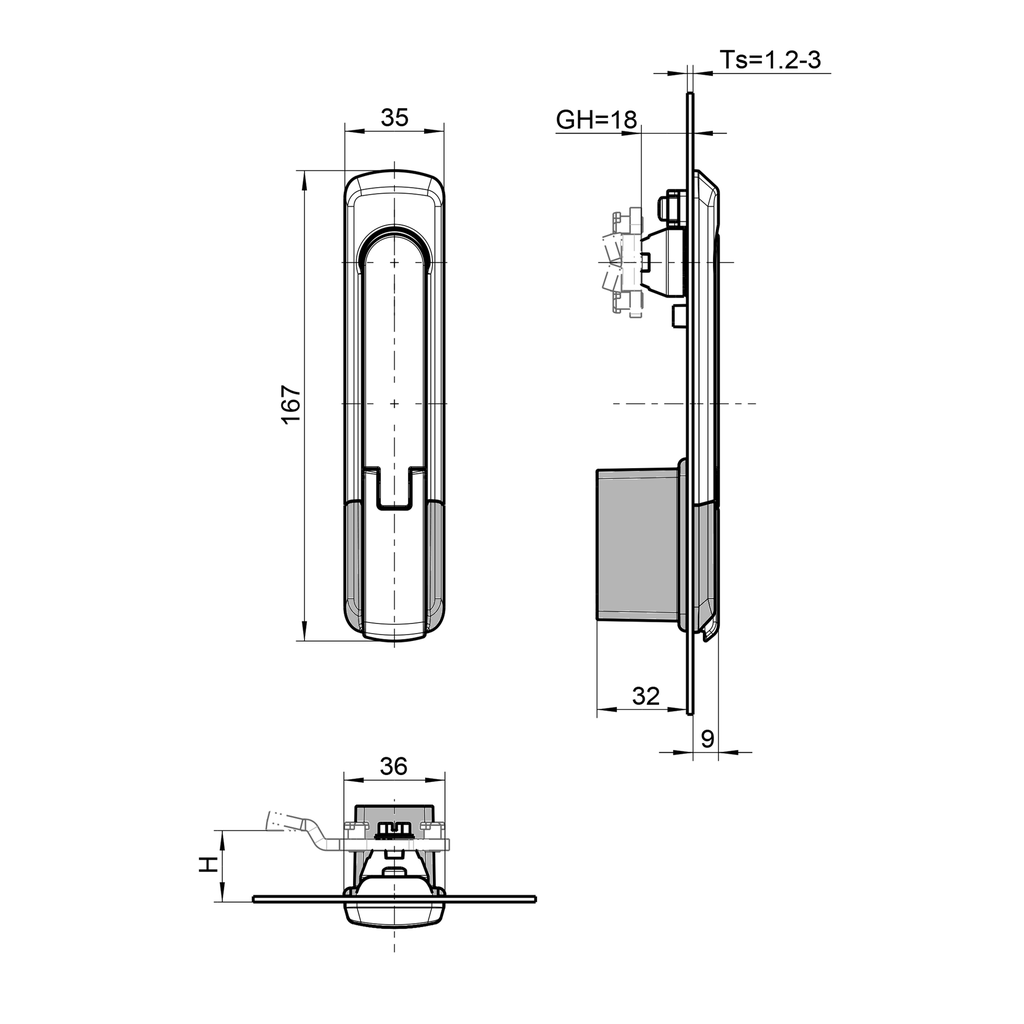

Cap dimension L:
Program 2225 = 32
Round Cylinder Type:
EMKA EK, differently keyed
Locking set:
Round cylinder
No Specifications
View All Products
Here you can find the product data sheets and CAD files of this product
