Locking set, left version, with round cylinder EK 333, Zinc die black powder-coated for outdoor use
Locking set with round cylinder, keyed different, Zinc die black powder-coated

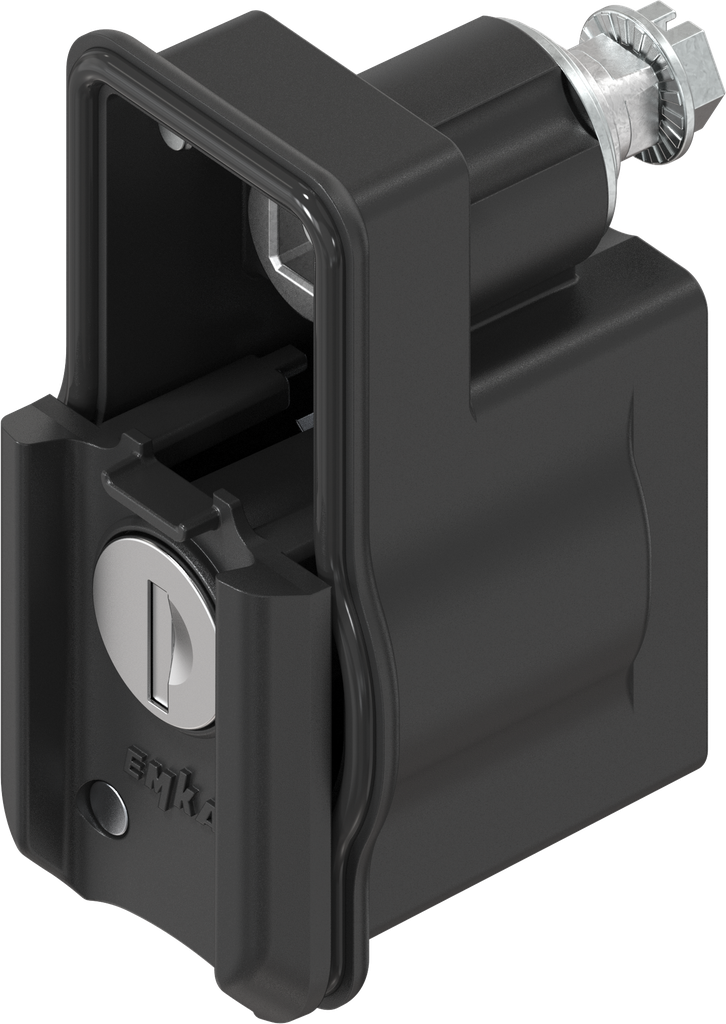

Locking set, right version, with round cylinder EK 333, Zinc die black powder-coated for outdoor use; 2225-U48-RE
for short version with compression function
100% original guarantee
Return within 30days
Free delivery on all orders
Product Benefits:
- Flat design
- Locking system inserts (locking sets) can be easily changed to the front
- Suitable for standard cut out
- Permanent magnet holds the cylinder cover
- Locking set made of zinc die
- Patent pending

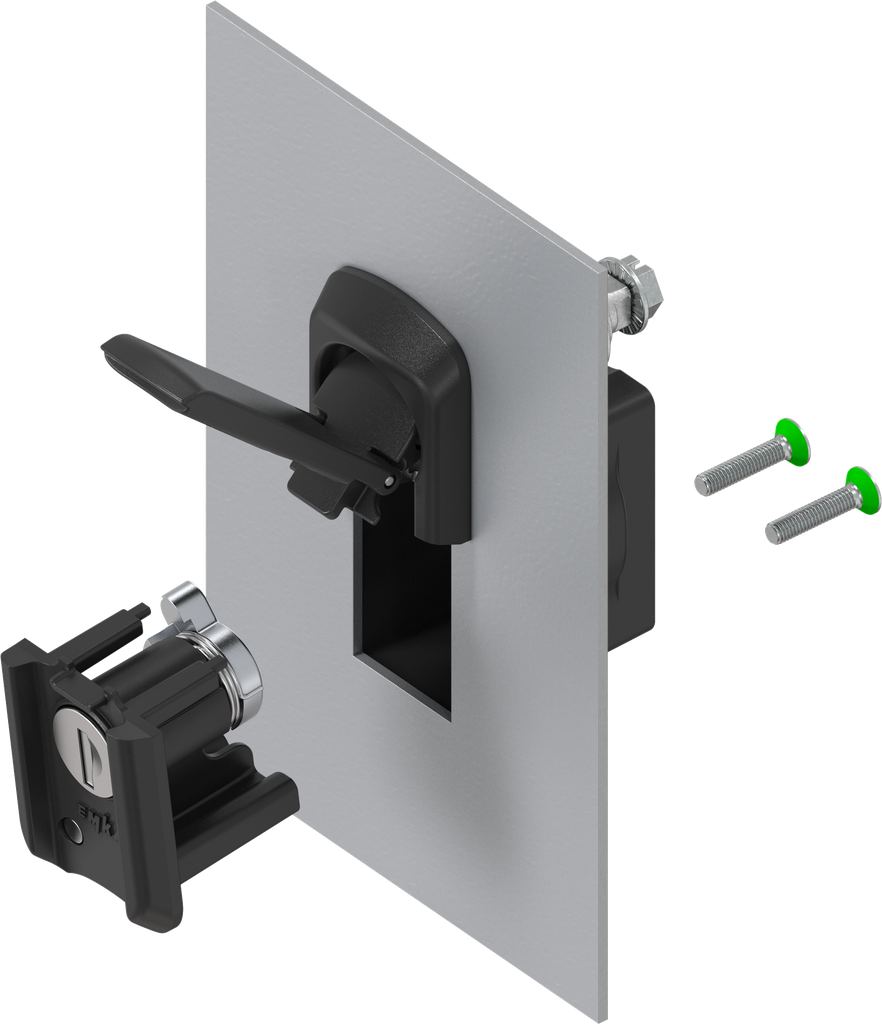

Assembly instruction:
Easy exchange of the locking sets
By removing the two lower screws, the locking set can be easily removed to the front.
Internal Reference:
2225-U48-RE
Standards:
Protection class IP 65
Barcode:
2225-U00048-00000RE
Product Type:
Locking set
Program:
2225
Catalog sheet:
3J-160
Material of the module :
Zinc die
Surface of the module:
black powder-coated for outdoor use
Number of Possible Locking Points:
1 point
Installation Position of Block:
Dish
Cloak:
Yes

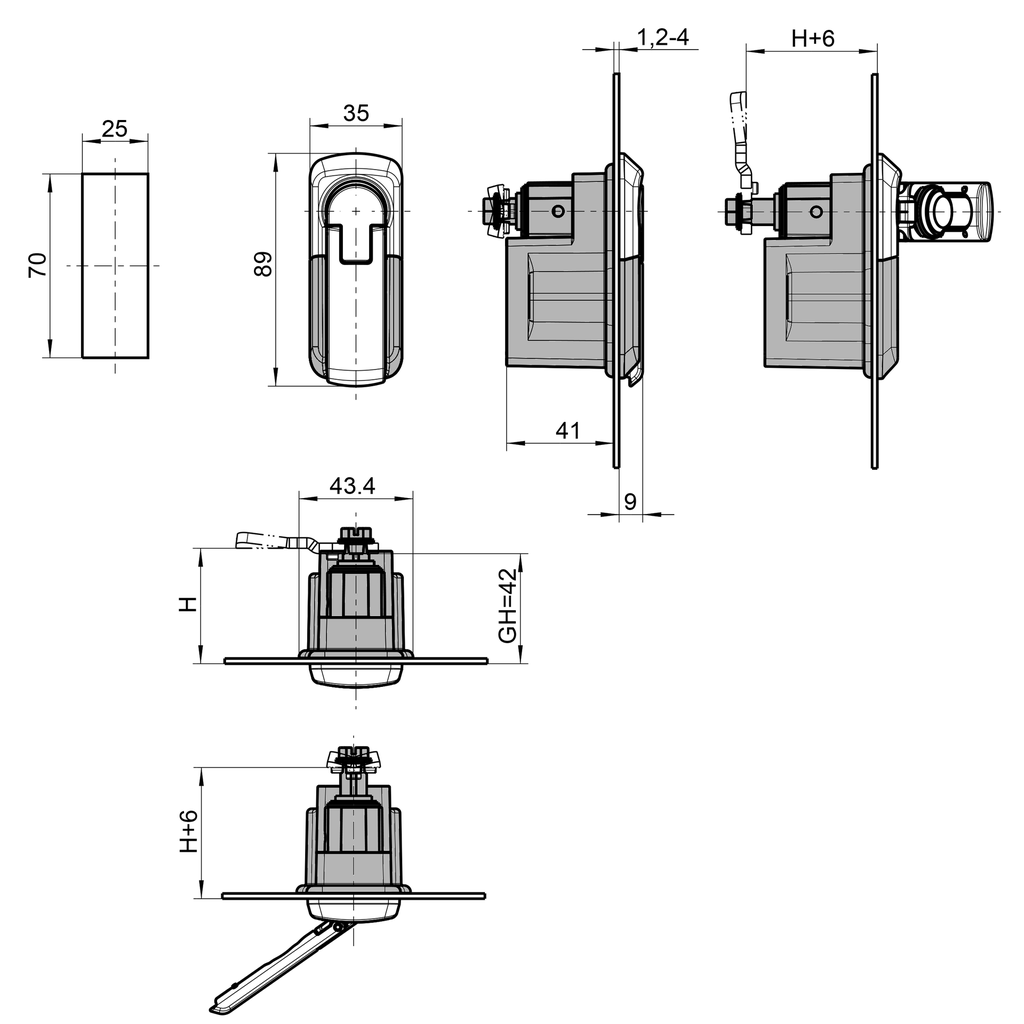

Cap dimension L:
Program 2225 = 41
Round Cylinder Type:
EMKA EK, keyed EK 333
Locking set:
Round cylinder
No Specifications
View All Products
Here you can find the product data sheets and CAD files of this product
