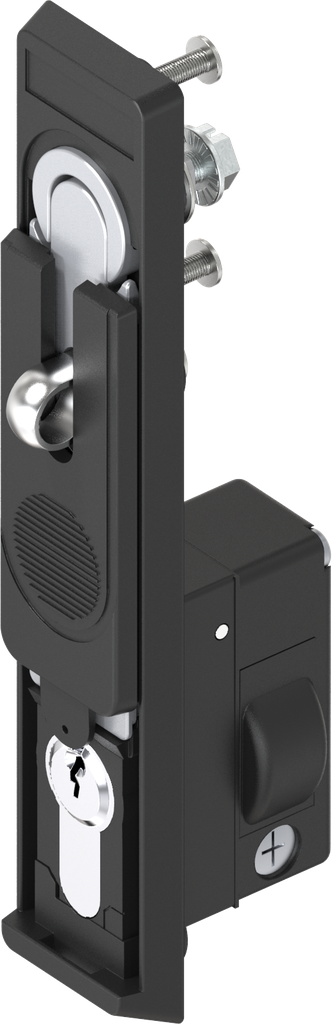

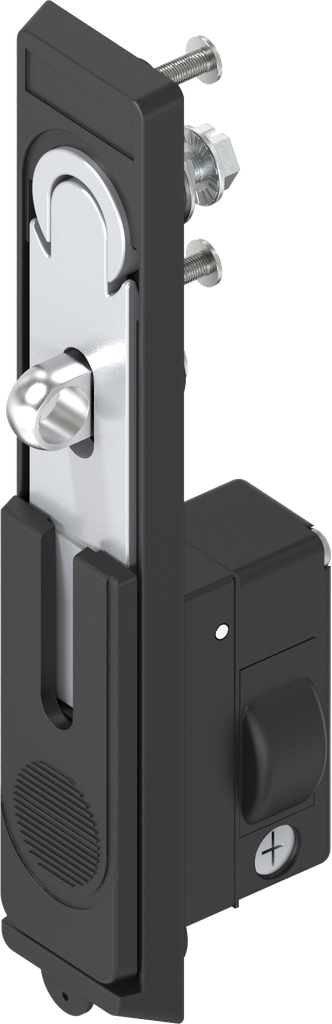

Locking set for ASSA cylinder, Polyamide GF black
Locking set for profile half cylinder (A = 30 mm), Polyamide GF black
Product information:
Swinghandle 2100-U9 can not be assembled with adapter plate 2100-U59
Logo recess: 27 x 8 x 0.5
Multicolour pad print possible
Internal Reference:
2100-U9
Product Type:
Swinghandle, Lifthandle
Program:
2100
Catalog sheet:
3H-420
Material of the module :
Zinc die and polyamide
Surface of the module:
black
Door return variable:
Yes
Number of Possible Locking Points:
1 point, 2 points, 3 point, 4 point, More than 4 points available on request
Number of Locking:
One locking set and for padlock
Mounting Positions :
Inside the sealing,Outside the sealing
Foamed gasket:
Yes
Handle Art(1):
Swinghandle
Suitable for door thickness from:
1.50 mm
Suitable for door thicknesses up to:
2 mm
Sealable:
Yes
Locking set:
Padlock
Locking set modular technology:
Profile half cylinder with cap, A = 30, mounted at the dish,ASSA cylinder with cap, mounted at the dish,KABA cylinder with cap, mounted at the dish,Round cylinder with cap, mounted at the dish,Insert with cap, mounted at the dish,Push button with cap, mounted at the dish
Swivel Handle:
20 mm
Pan Handle Length:
176 mm
Door Version :
Left,Right
Locking components:
Rod control,Bearing bush with cam
Padlock Art:
Padlock with shackle dimension Ø 10
