Locking set with insert double bit 3, Polyamide GF black
Locking set with insert double bit 3, Polyamide GF black
Swinghandle for locking set, Zinc die and polyamide black
Swinghandle for locking set, Zinc die and polyamide black

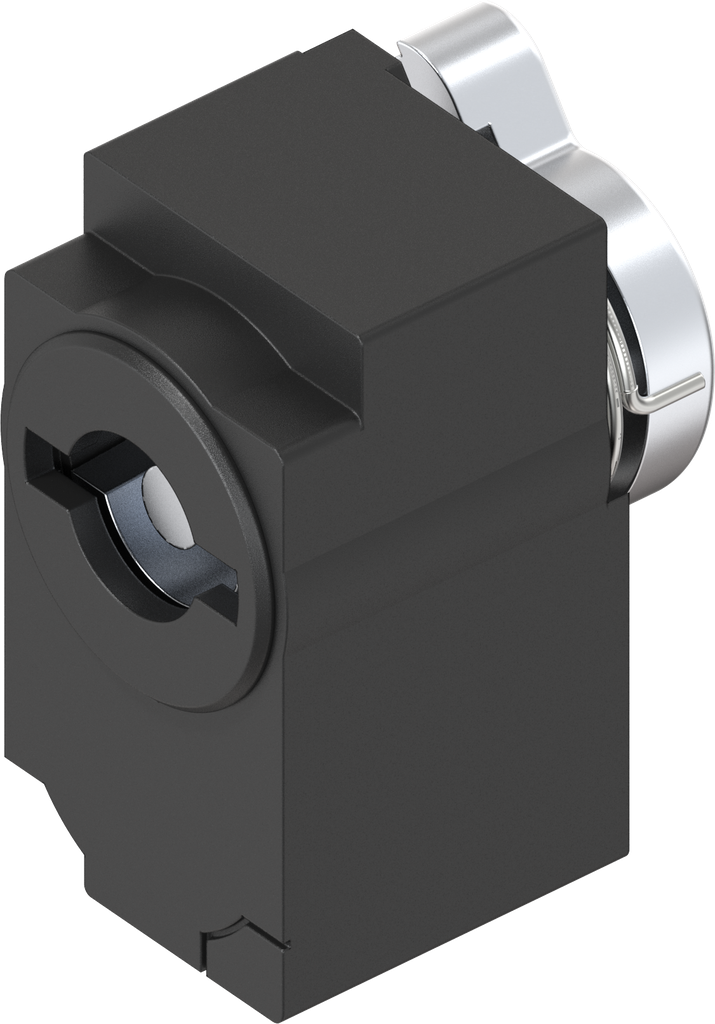

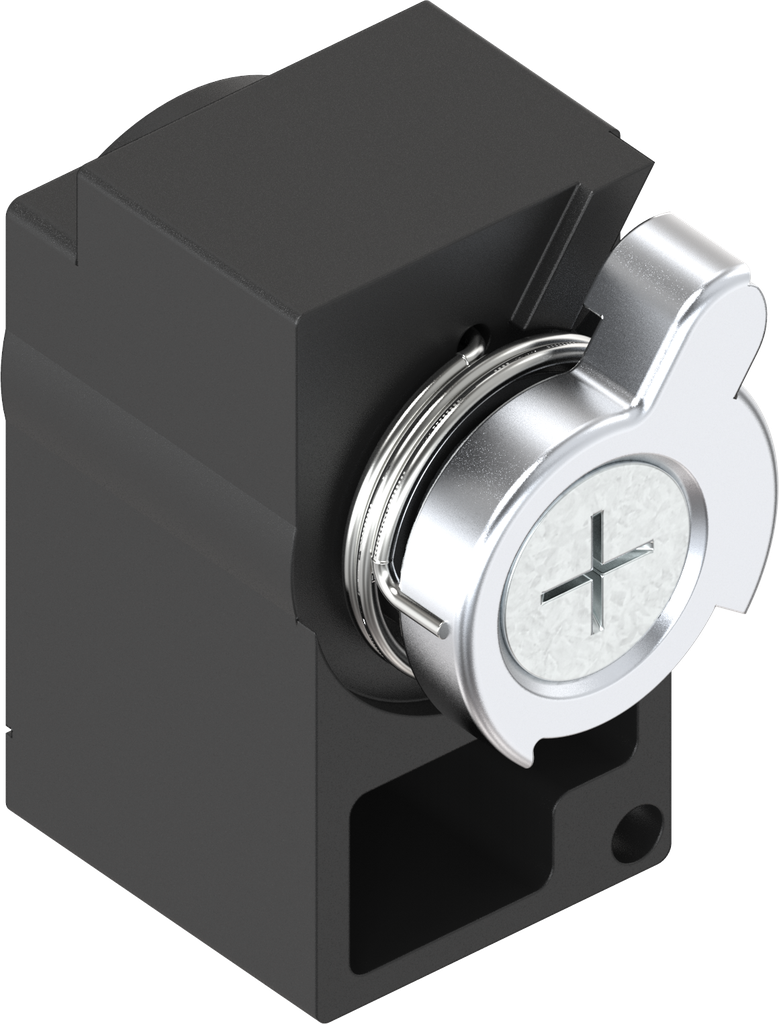

Locking set with insert double bit 5, Polyamide GF black; 2100-B33

https://20241023-uat.emka.opaas.sh/products/2100-b33 https://20241023-uat.emka.opaas.sh/web/image/product.template/65471/image_1920?unique=564970e

    This combination does not exist.

    Contact Us

    Function:

    Insert is spring loaded
    Internal Reference: 2100-B33
    Product Type: Locking set
    Program: 2100
    Catalog sheet: 3XA-240
    Material of the module : Polyamide GF
    Surface of the module: black
    Article with property rights: Yes
    Type of actuation: Double bit 5
    Installation Position of Block: Dish

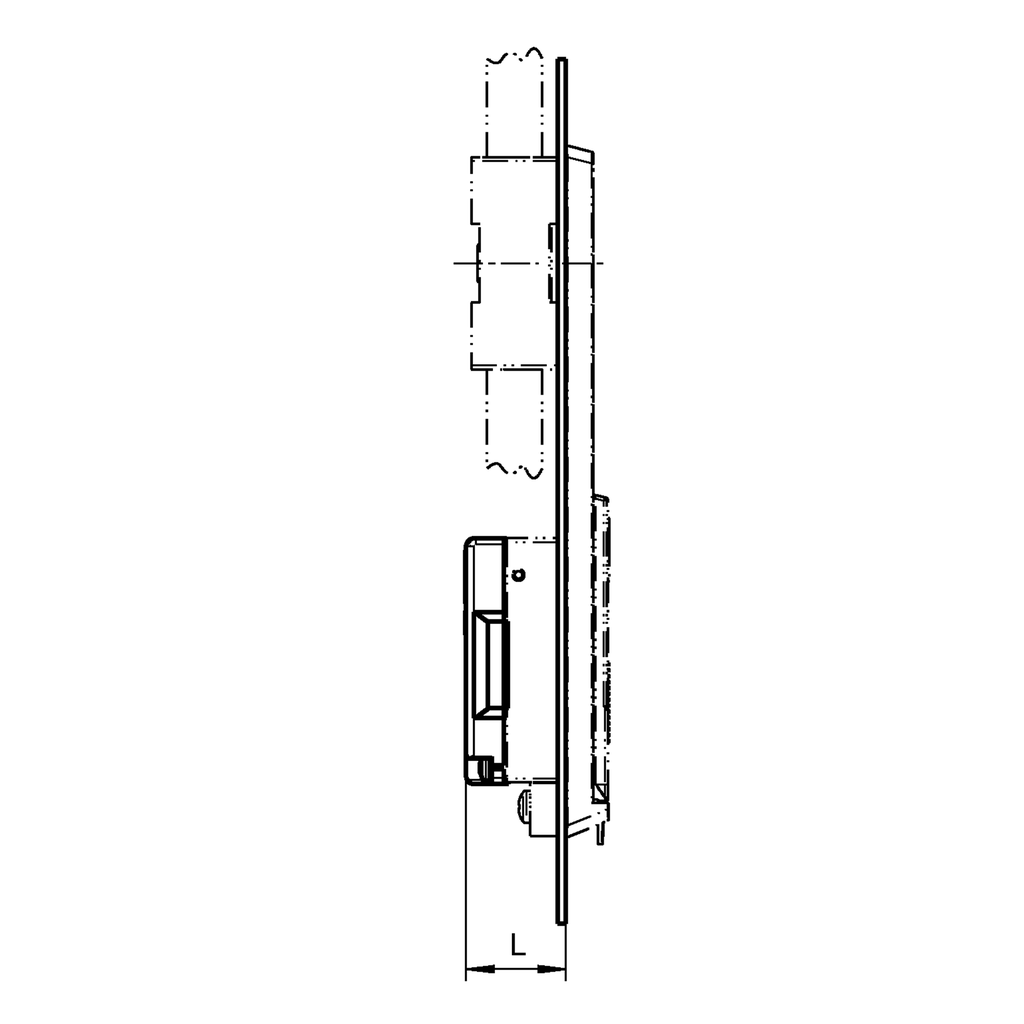

    Cap dimension L: Program 2400 = 20,Program 1180 = 21.5,Program 1190 = 29.5
    Locking set: Insert
    No Specifications
    View All Products
    Keys
    Swinghandle, Lifthandle
    Here you can find the product data sheets and CAD files of this product
    Main catalogue | 3XA-240
    Product data sheet
    CAD file | 2100-B33_igs
    CAD file | 2100-B33_stp
