Function:
Insert is spring loaded
Internal Reference:
2100-B15
Product Type:
Locking set
Program:
2100
Catalog sheet:
3XA-240
Material of the module :
Polyamide GF
Surface of the module:
black
Article with property rights:
Yes
Type of actuation:
Square 7
Installation Position of Block:
Dish

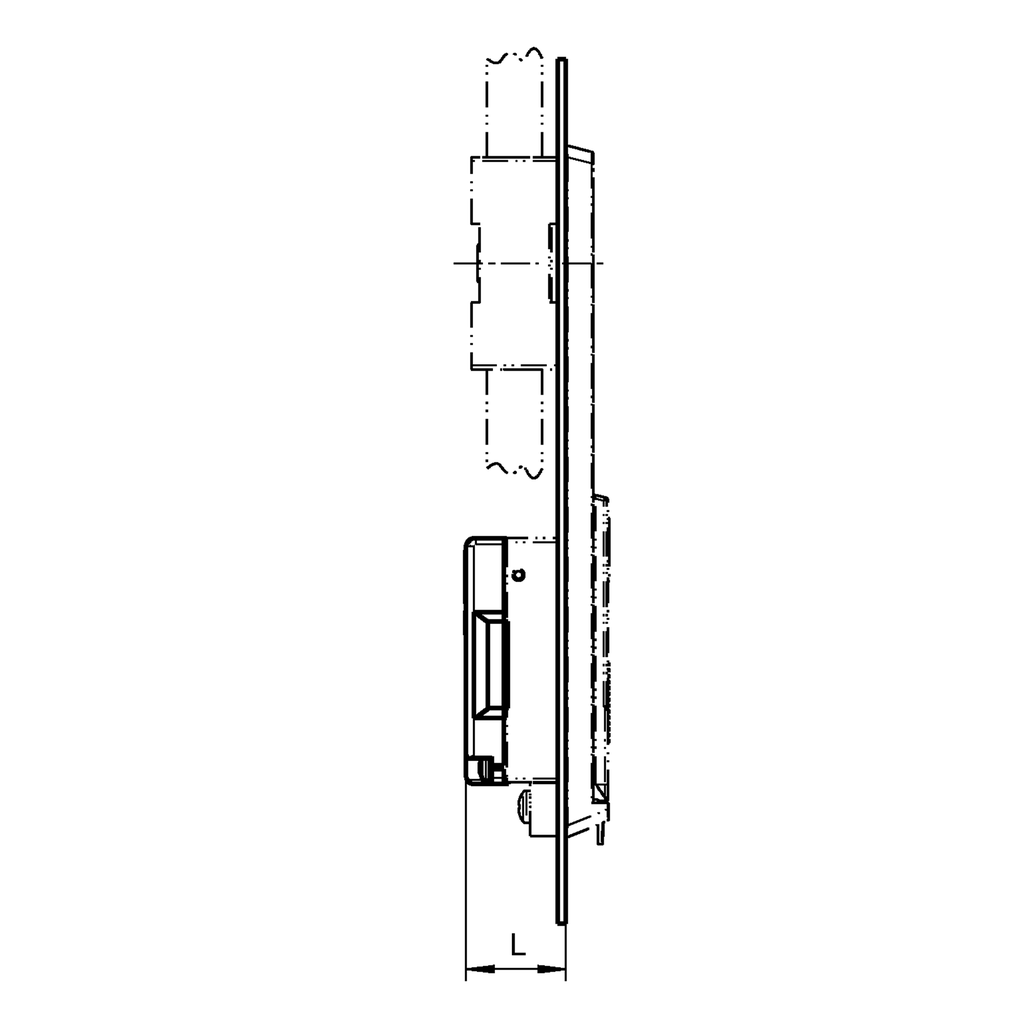

Cap dimension L:
Program 2400 = 20,Program 1180 = 21.5,Program 1190 = 29.5
Locking set:
Insert
