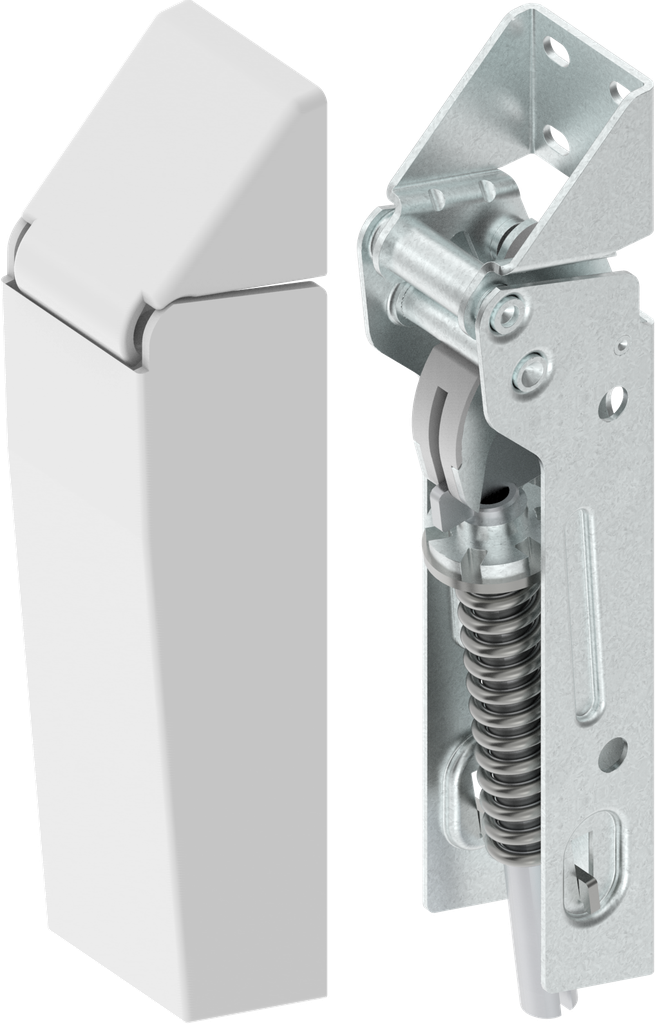

80° Counterbalancing spring-loaded hinge, Steel zinc-plated; 1715-U332
for lid weight with homogeneous distribution of weight in the range of 17 kg with 2 hinges
Product information:

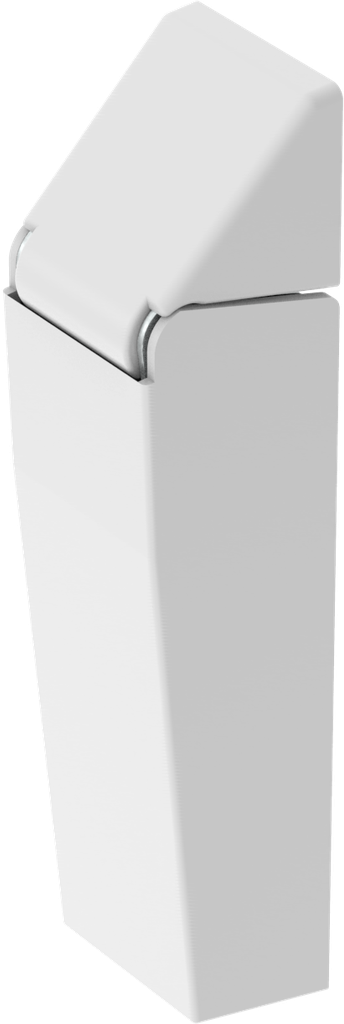

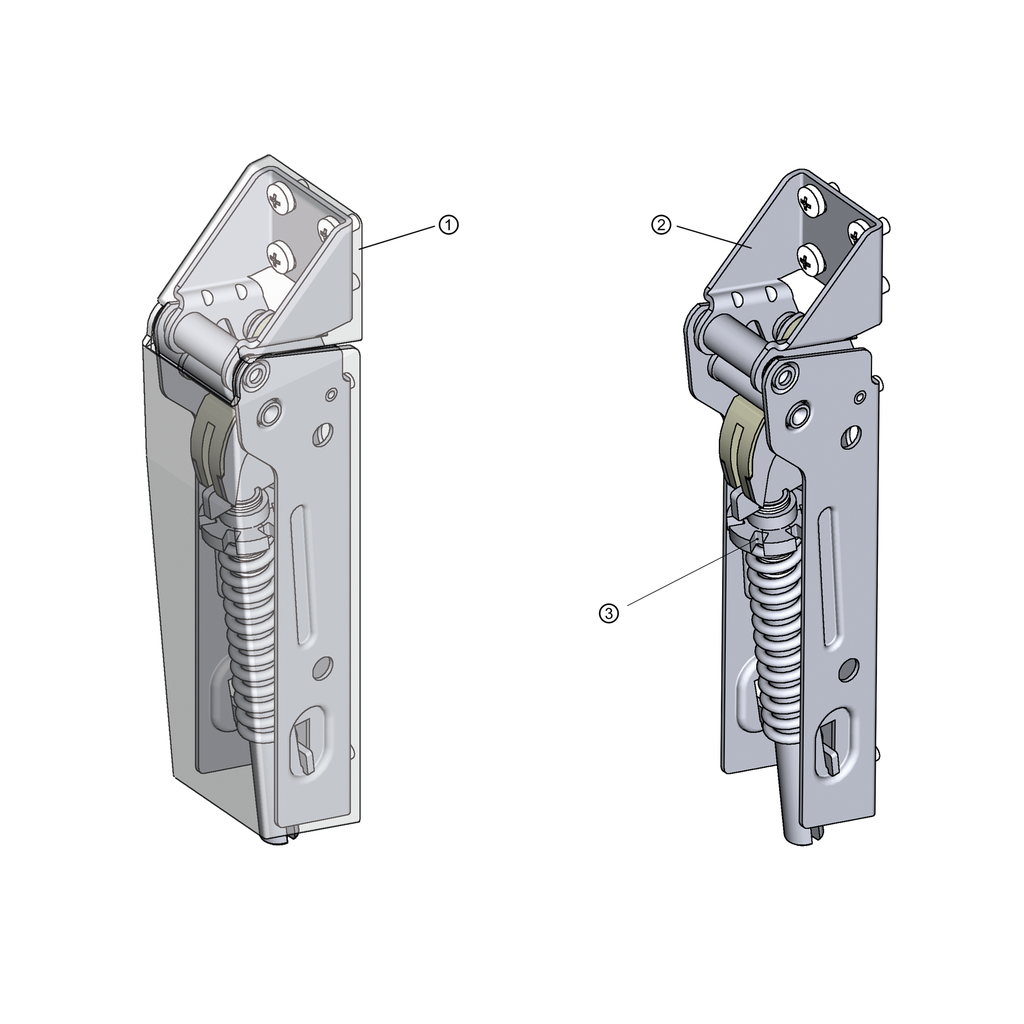

① = Covering caps depicted transparent
② = Depicted without covering caps
③ = By means of the adjusting nut the torque can be set.
Application:
The spring-loaded hinge can be used e.g. for freezers. The covering caps can be put on after assembly of the hinge.
Akeneo Note:
For lid weight with homogeneous distribution of weight in the range of 17 kg with 2 hinges
Internal Reference:
1715-U332
Product Type:
Hinge
Program:
1715
Catalog sheet:
4D-120
Material of the module :
Steel
Surface of the module:
zinc-plated
Door return variable:
Yes
Type of attachment to the frame:
screw-on from outside
Type of fastening on the door:
screw-on from outside
Counterbalancing spring loaded hinge:
Yes
Adjustable :
2D
Hole pattern required in the door:
Bore holes in the door
Max Opening Angle:
80°
Cabinet type :
Single cabinets,In-line cabinets with single door
Door position:
prominent
Door Version :
Left,Right
