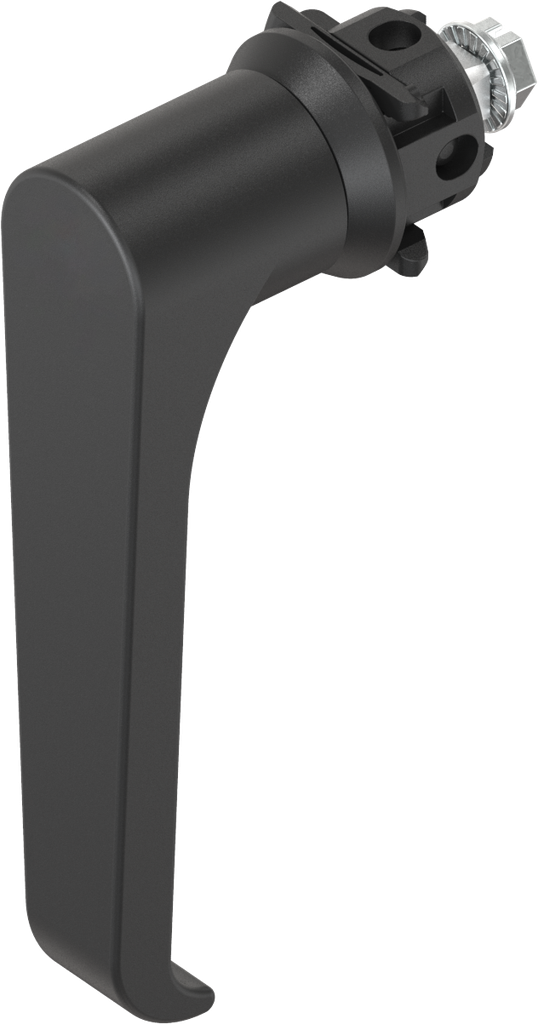

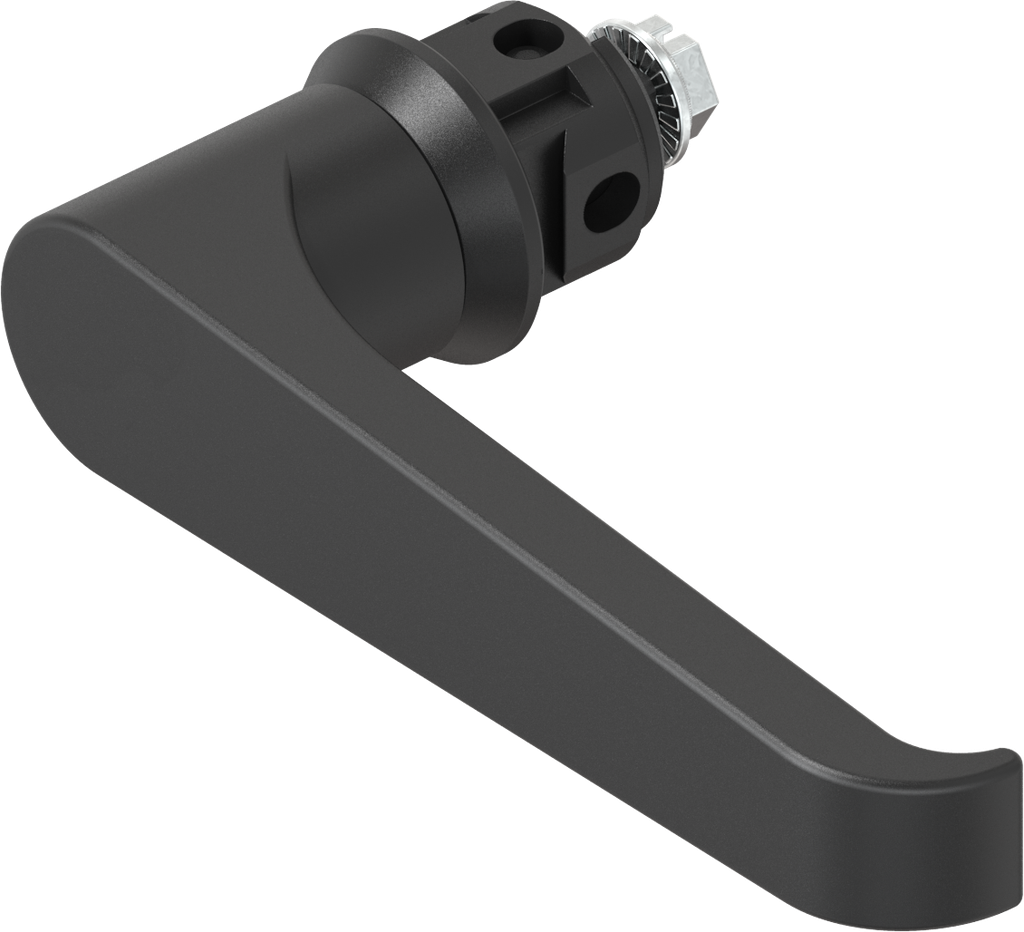

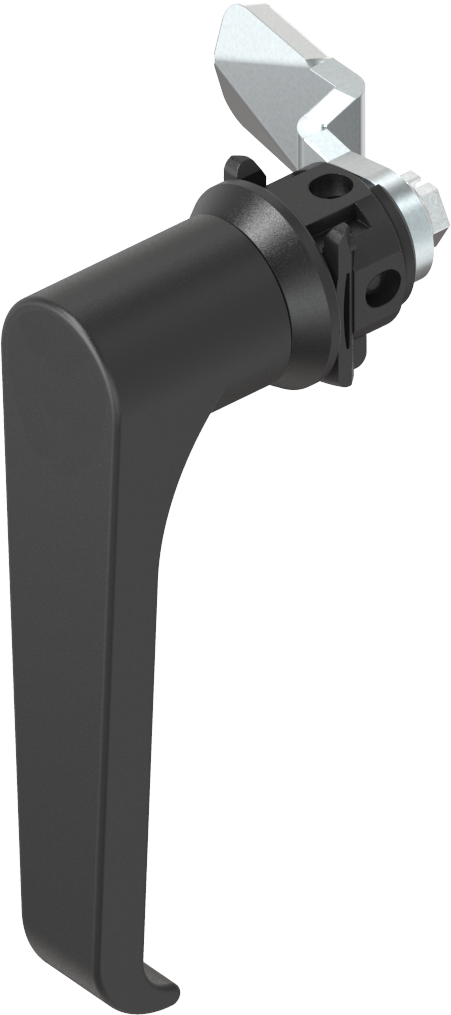

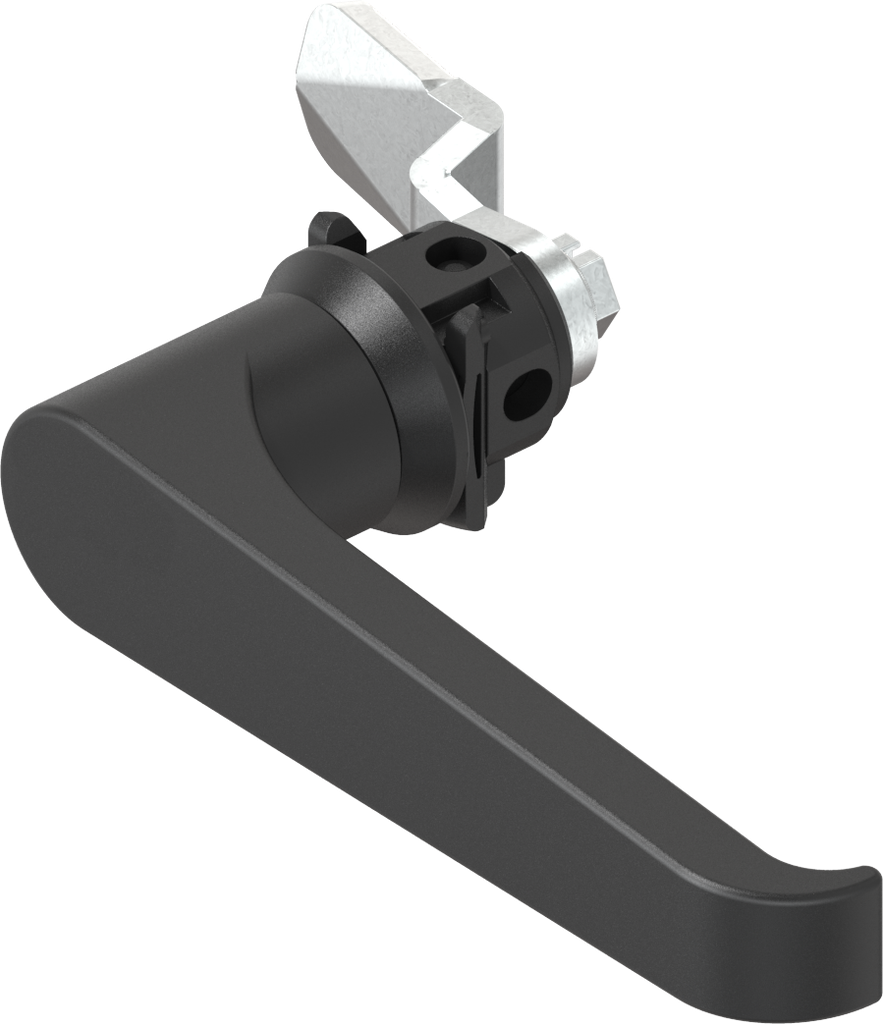

L-handle quarter turn clip fix, non-keyed, Polyamide GF black; 1500-U570

https://20241023-uat.emka.opaas.sh/products/1500-u570 https://20241023-uat.emka.opaas.sh/web/image/product.template/65346/image_1920?unique=49ce720


    This combination does not exist.

    clamp-on / clip fix Inside the sealing Foamed seal Protection class IP 65 Left Right


    Akeneo Note:

    The door thickness depends on the locking clip, which must be selected and ordered separately.

    Internal Reference: 1500-U570
    Product Type: Quarter turn
    Program: 1500
    Catalog sheet: 1D-220
    Material of the module : Polyamide GF
    Surface of the module: black
    Number of Possible Locking Points: 1 point
    Article with property rights: Yes
    Fixing type of housing : clamp-on / clip fix
    Mounting Positions : Inside the sealing
    Housing Head Shape: Round
    Housing Head Size: 30 x 6 mm
    Foamed gasket: Yes
    GH Mass: 18 mm
    Handle Art: L-handle
    Locking set: No locking set, blind
    Door Version : Left,Right
    Locking components: Cam
    Quarter turn types: Quarter turn with handle
    No Specifications
    View All Products
    Cam
    Assembly
    Rod control
    Locking clip
    Here you can find the product data sheets and CAD files of this product
    Main catalogue | 1D-220
    Product data sheet
    CAD file | 1500-U570_igs
    CAD file | 1500-U570_stp
