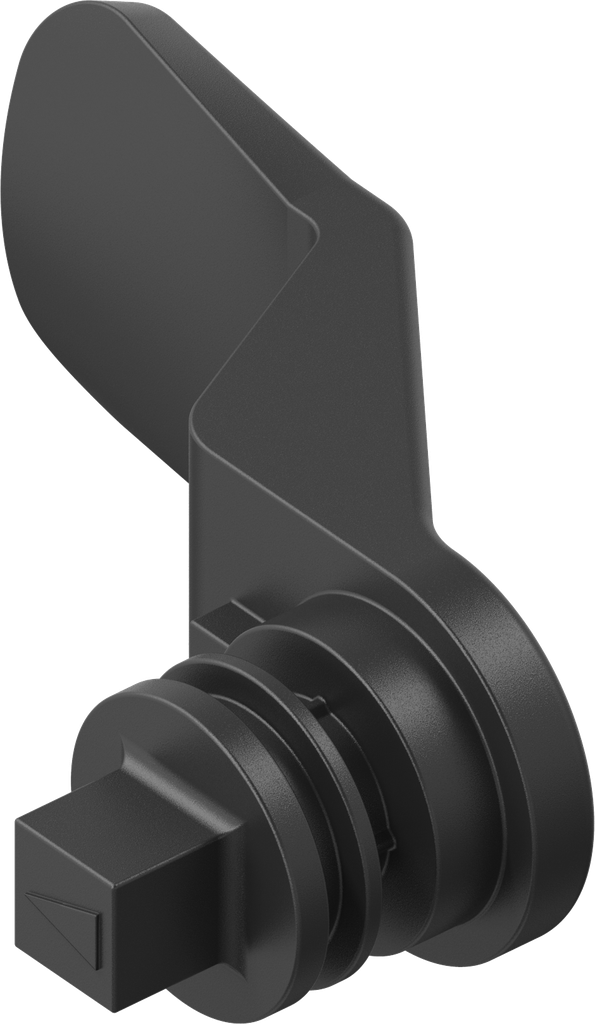

Insert cam square 7, Polyamide GF black
Insert cam square 8, Polyamide GF black
Internal Reference:
1500-136-H30
Product Type:
Insert cam
Material:
Polyamide GF
Program:
1500
Surface:
black
Catalog sheet:
1D-140
Number of Possible Locking Points:
1 point
Type of actuation:
Square 7
For GH measure:
15 mm
Compression Value :
3 mm
Offset:
positive
offset of cam:
15 mm

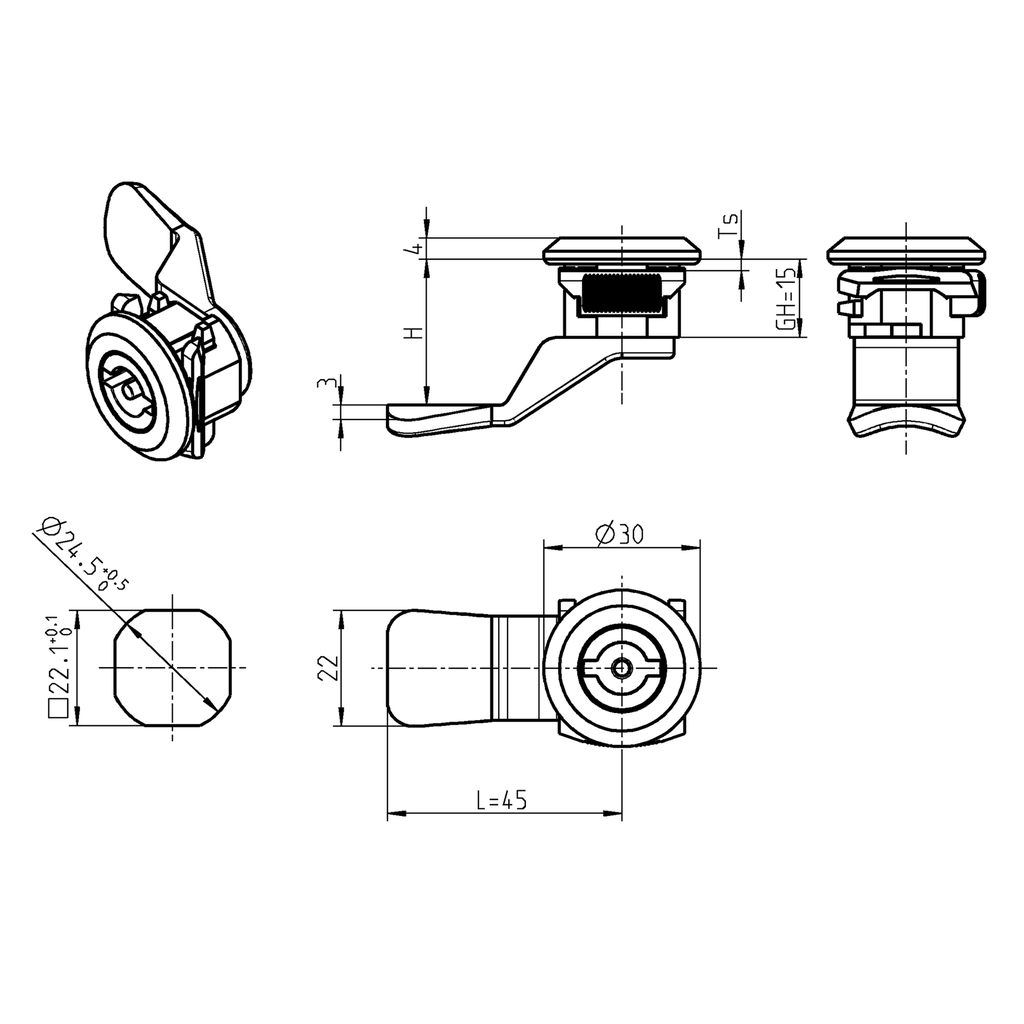

Dimension L:
45 mm
O-ring position:
Slot
Locking set:
Insert
No Specifications
View All Products
Here you can find the product data sheets and CAD files of this product
