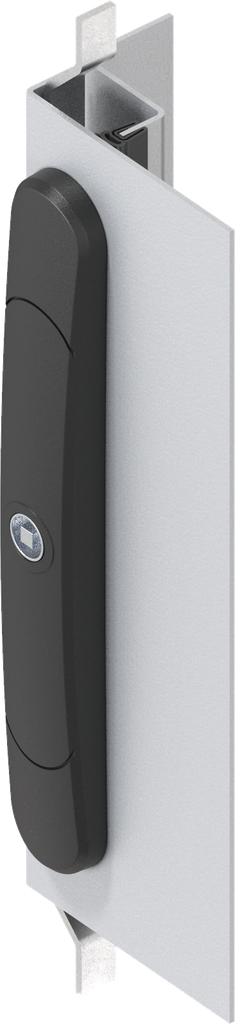

Flat rod with double roller for small bending area, Steel zinc-plated

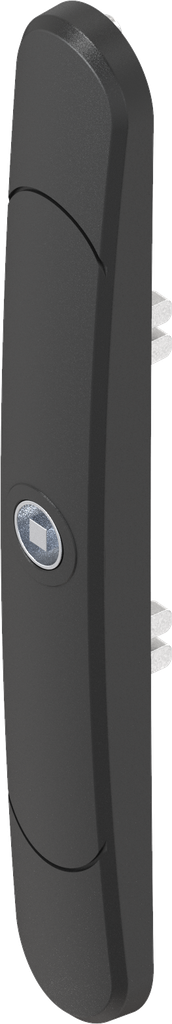

Escutcheon with double bit 3 for small bending area, Polyamide GF black
Product Benefits:
- Bi-directional escutcheon
- Variable positioning of the rods depending on hinge fixing
- Small cut out due to outside mechanics
- Innovative new and well-priced technology
- Attractive design
- Larger clearance due ro narrow bending 33 x 25 mm or 37 x 25 mm
- Patented
Product information:
Rod movement is bi-directional

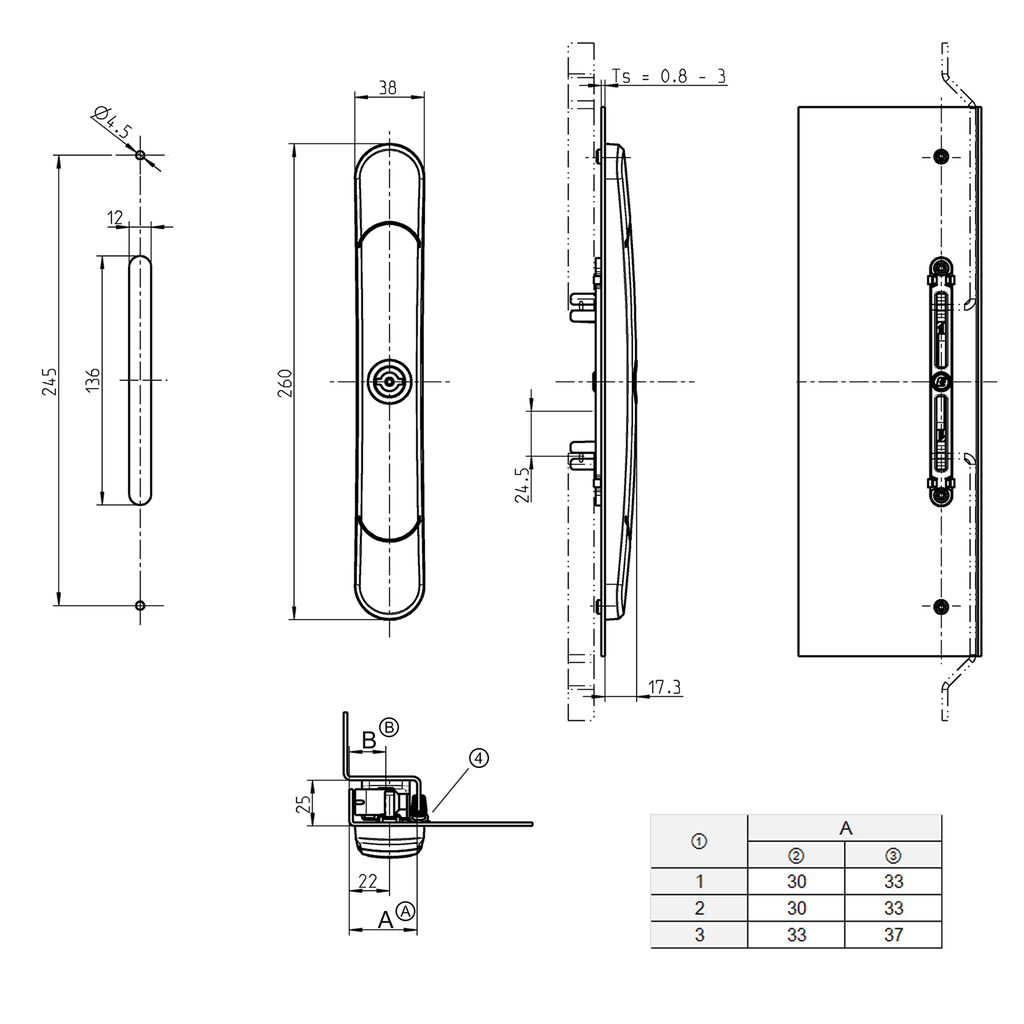

Ⓐ = The values in the table for dimension A with seal refer to the seal 1011-10 The values for dimension A are different for other seals.
Ⓑ = Dimension B should have the same value as the fixing dimension of the hinge bracket if the door is to be used right or left. Dimension B depends on the hinge to be used

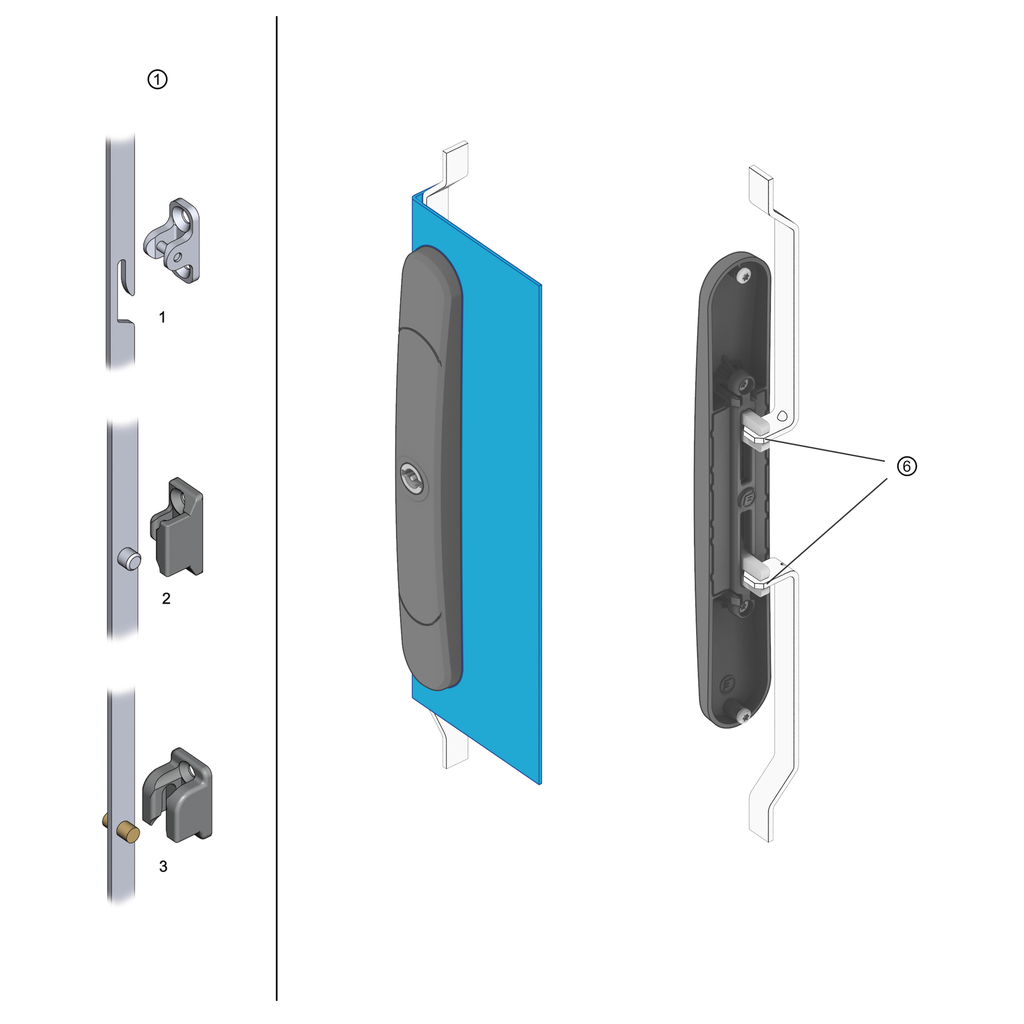

① = Locking type
② = Without seal
③ = With seal
④ = Seal example 1011-10

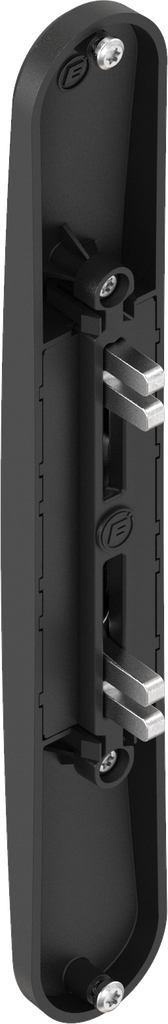

⑥ = Variable rod control
Internal Reference:
1390-U33
Product Type:
Escutcheon
Program:
1390
Catalog sheet:
3FA-130
Material of the module :
Polyamide GF
Surface of the module:
black
Number of Possible Locking Points:
2 points, 4 point, More than 4 points available on request
Article with property rights:
Yes
Type of actuation:
Square 6
Mounting Positions :
Outside the sealing
With integrated rod control / 3-point cam:
Yes
Suitable for door thickness from:
0.80 mm
Suitable for door thicknesses up to:
3 mm
Locking components:
Integrated rod control
No Specifications
