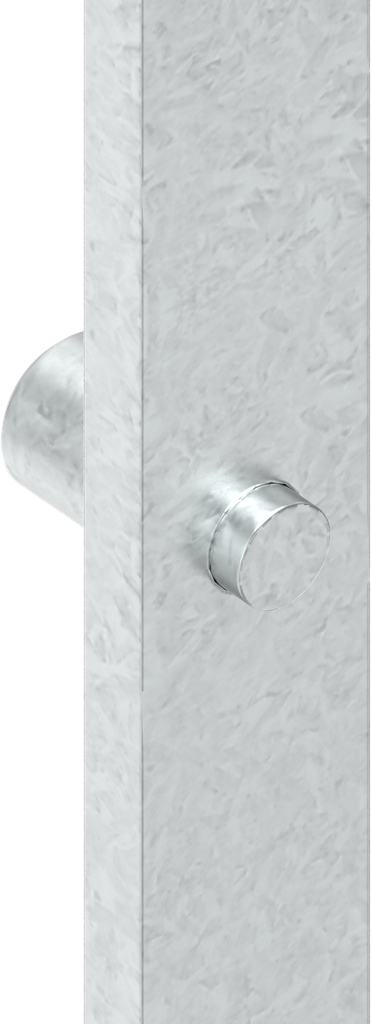

Flat rod 10 x 3 with single roller for small bending area, Steel zinc-plated
Flat rod with notch for small bending area top, Steel zinc-plated
Product information:
For rods with notch one upper and one lower flat rod respectively must be ordered.
Internal Reference:
1325-U220-07
Product Type:
Rod
Program:
1325
Surface:
zinc-plated
Catalog sheet:
3ZA-605
Material of the module :
Steel
Surface of the module:
zinc-plated
Connecting rod position:
Outside the sealing, top or bottom
Number of Possible Locking Points:
2 points
Article with property rights:
Yes
Mounting Positions :
Outside the sealing

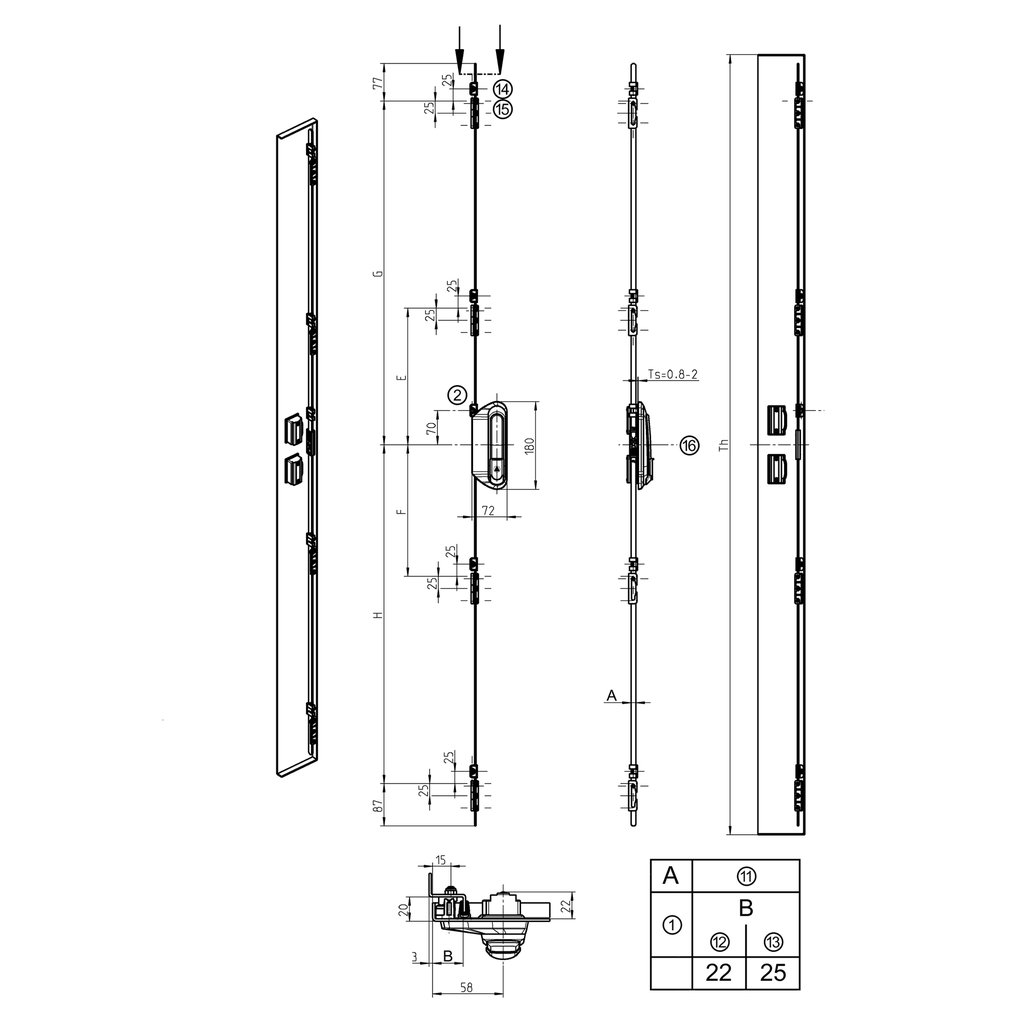

F dimension:
270
Flat Bar Outside:
Flat rod with single roller
For Door Height:
1900-2200
H Dimension:
845
No Specifications
