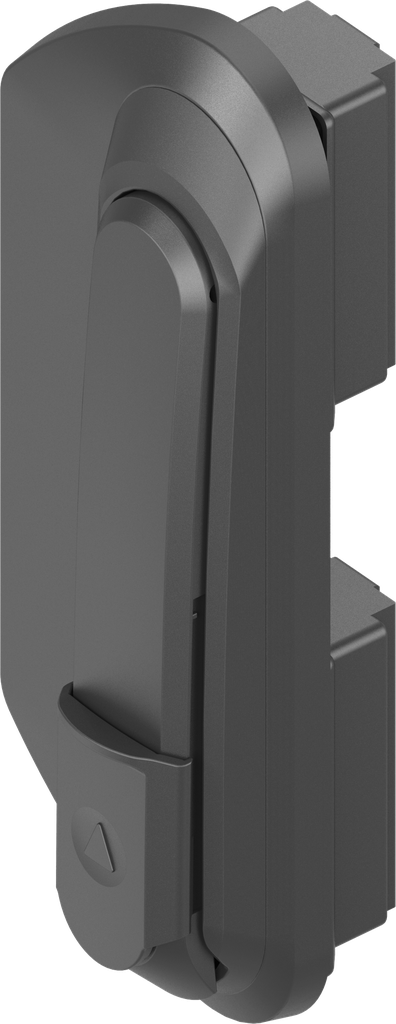

Swinghandle with variable use of locking sets for small bending area for flat rod 10 x 3, Polyamide GF black; 1325-U202
for flat rod 10 x 3 mm
Product Benefits:
- Innovative award-winning design
- Ergonomic surface feel
- Variable locking options
- Quick assembly and simple right-left change
- Integrated scratch prevents surface damage (handle / dish)
- Rattle-free rod connection due to patented clip-in connection
- Larger clearance due to narrow bending 33 x 25 mm or 37 x 25 mm
Product information:

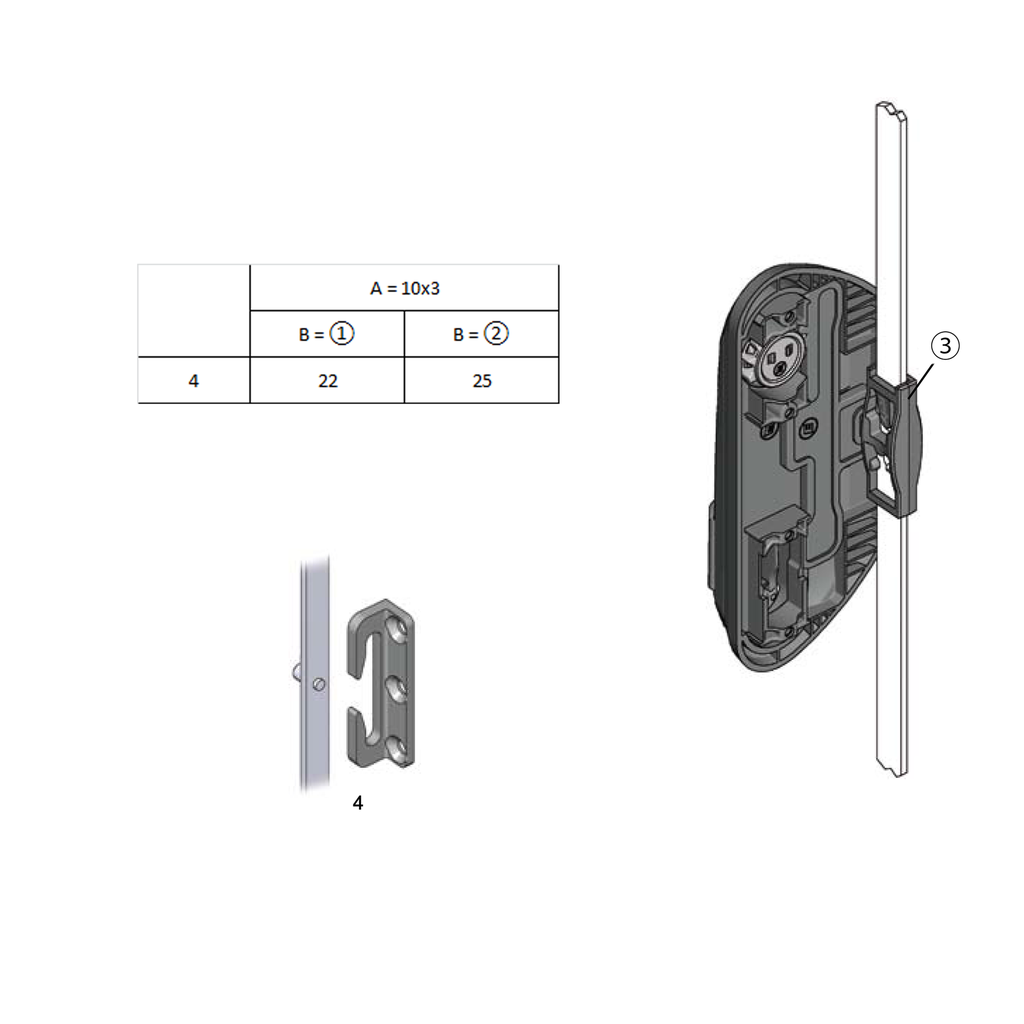

1 = Rod with cut out
2 = Rod with single roller
3 = Rod with double roller
Function:
Rod movement is unidirectional
Internal Reference:
1325-U202
Product Type:
Swinghandle, Lifthandle
Program:
1325
Catalog sheet:
3ZA-605
Material of the module :
Polyamide GF
Surface of the module:
black
Dimension A, Variable:
20 mm
Number of Possible Locking Points:
2 points, 4 point
Number of Locking:
One locking set
Article with property rights:
Yes
Attachment of the trough:
Screw-on cap IP 65
Mounting Positions :
Outside the sealing
For small bending area:
Yes
Foamed gasket:
Yes
Consistent convenient swinging:
Yes
Handle Art(1):
Swinghandle
Integrated scratch protection:
Yes

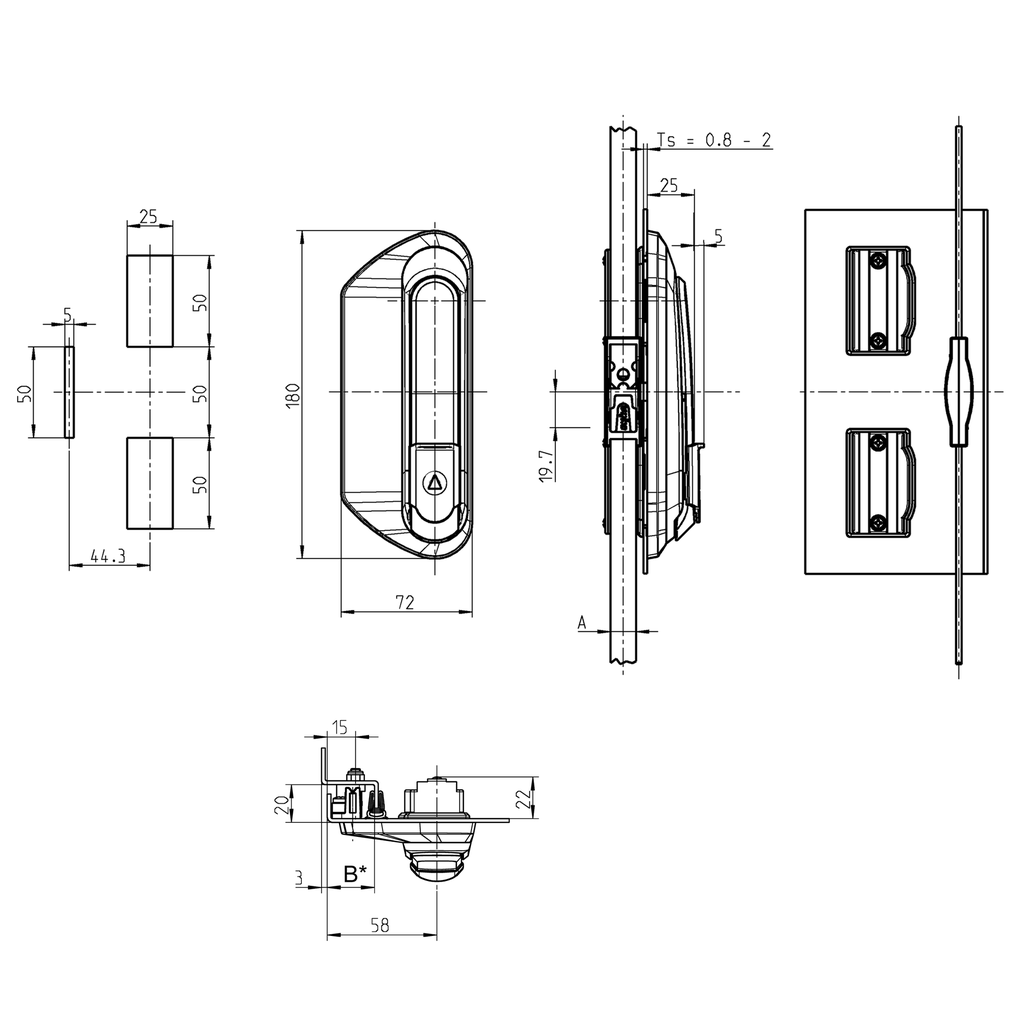

Suitable for door thickness from:
0.80 mm
Suitable for door thicknesses up to:
2 mm
Locking set modular technology:

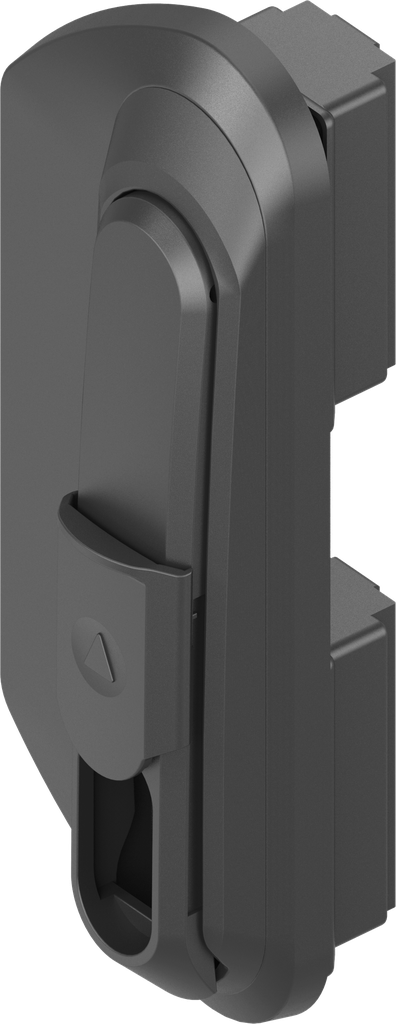

Profile half cylinder, A = 30, handle assembly,Round cylinder, handle assembly,Insert, handle assembly
locking set cover:
Yes
Key Removable:
Key can be withdrawn in any handle position
Swivel Handle:
25 mm
Pan Handle Length:
180 mm
Door revolvable / reversible:
Yes
Door Version :
Left,Right
Locking components:
Integrated rod control
No Specifications
