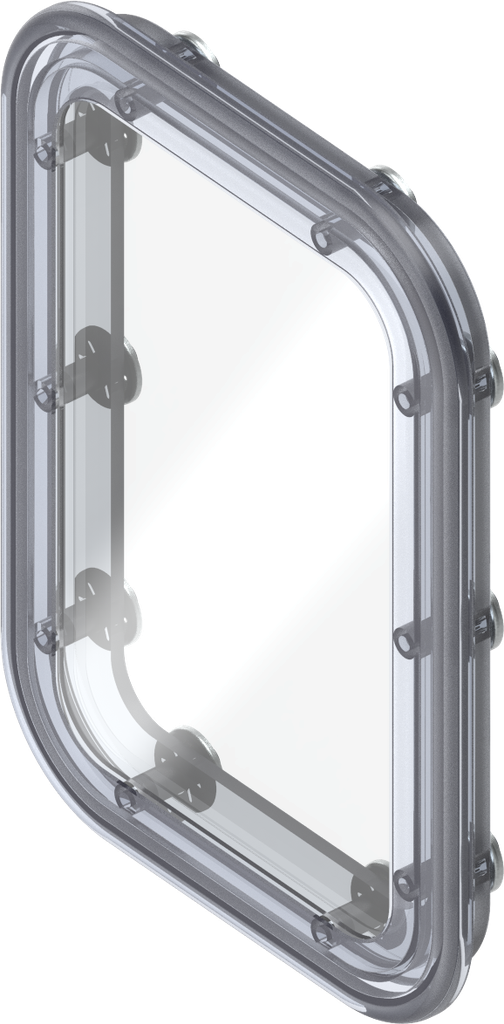

Viewing window, foamed, without frame, Polycarbonate crystal clear
Swinghandle "long" with RC2 for profile half cylinder 40 mm (A = 30 mm) with additional locking cam position 30°, Zinc die black powder-coated

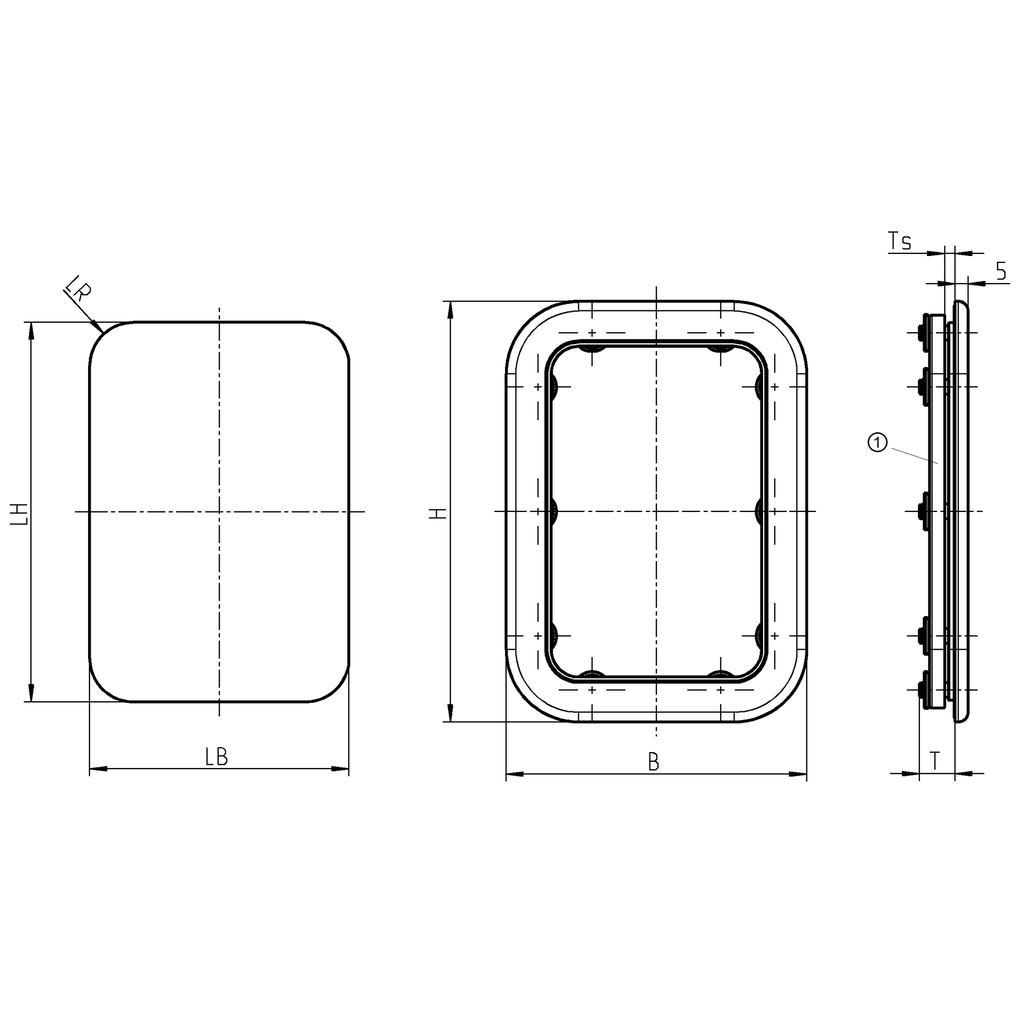

Product information:
- 1 = Frame
- LH = 156.5 mm
- LB = 107 mm
- LR = 20 mm
- T = 17 mm
Internal Reference:
1250-U7
Product Type:
Viewing windows
Program:
1250
Catalog sheet:
8D-540
Material of the module :
Polycarbonate
Surface of the module:
crystal clear
Foamed gasket:
Yes
Viewing Window:
with shaft clamping rings with frame
Viewing Window 1250:
B = 175; H = 125
Window 1250; door thickness up to:
6 mm
No Specifications
No Matching Products
Here you can find the product data sheets and CAD files of this product
