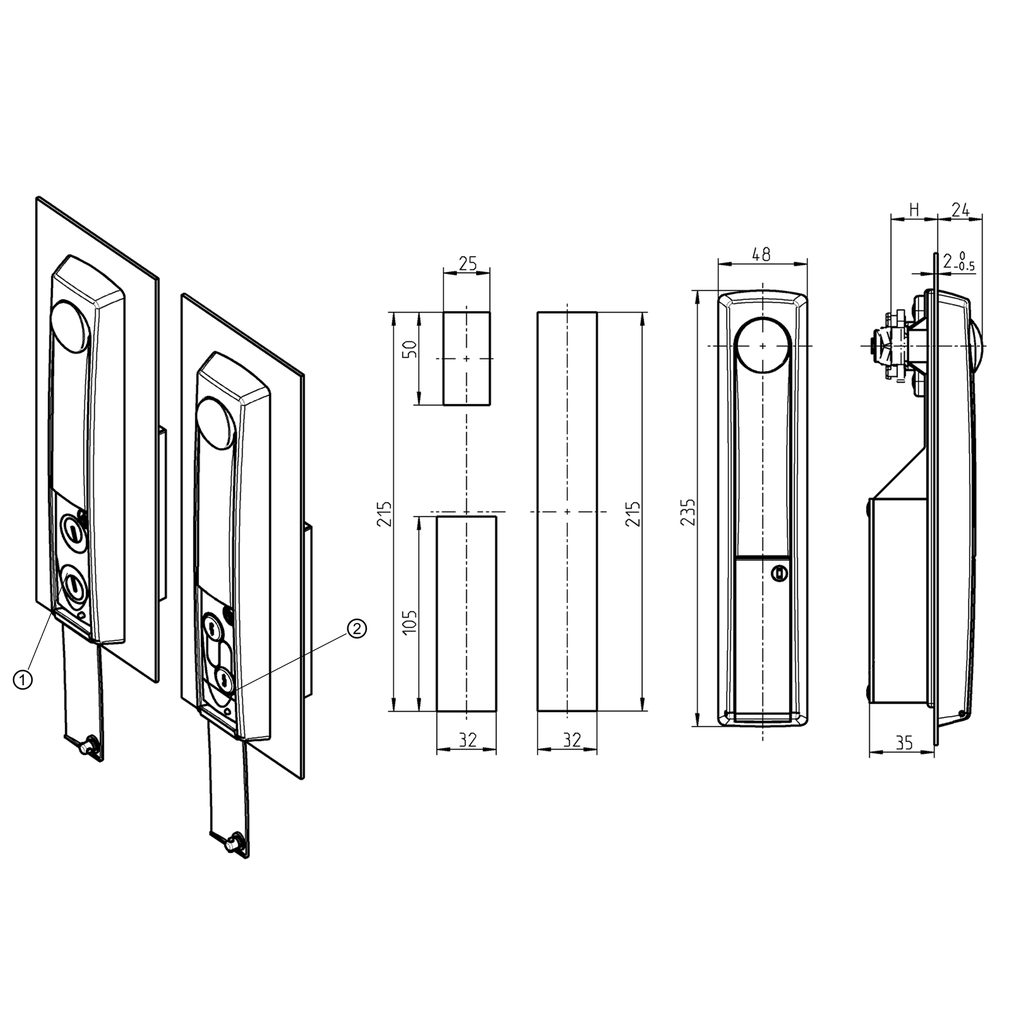

Escutcheon long with L-handle, keyed different, Polyamide black and zinc die black powder-coated
Adapter for cam and bridge, PBT GF and polyamide GF black
Internal Reference:
1225-U62
Product Type:
Swinghandle, Lifthandle
Program:
1225
Catalog sheet:
3G-320
Material of the module :
Zinc die
Surface of the module:
black powder-coated
Door return variable:
Yes
Number of Possible Locking Points:
1 point, 2 points, 3 point
Number of Locking:
Two locking sets, 1-key-operation
Mounting Positions :
Inside the sealing
Foamed gasket:
Yes
GH Mass:
18 mm
Handle Art(1):
Swinghandle
Suitable for door thickness from:
1.50 mm
Suitable for door thicknesses up to:
2 mm
Locking set:
KABA cylinder
locking set cover:
Yes
Swivel Handle:
24 mm
Pan Handle Length:
235 mm
Door revolvable / reversible:
Yes
Door Version :
Left,Right
Locking components:
Cam
