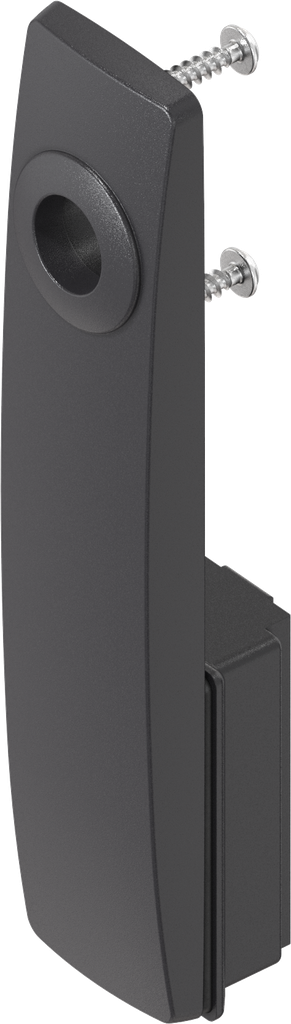

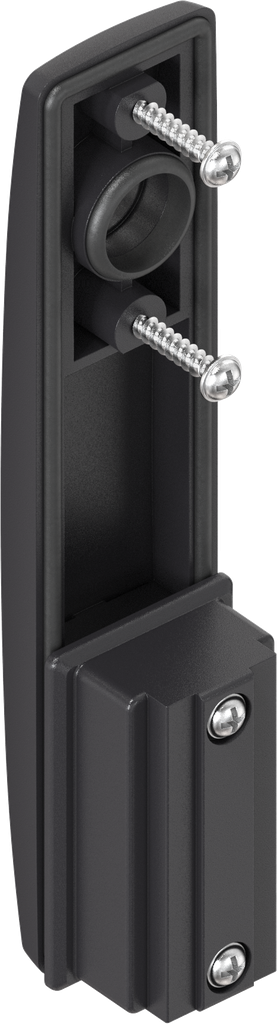

Escutcheon short for insert double bit, Polyamide GF black
Escutcheon long with L-handle, non-keyed, Polyamide black and zinc die black powder-coated
Internal Reference:
1221-U133
Product Type:
Escutcheon
Program:
1221
Catalog sheet:
3G-120
Material of the module :
Polyamide GF
Surface of the module:
black
Number of Possible Locking Points:
1 point, 2 points, 3 point, 4 point, More than 4 points available on request
Mounting Positions :
Inside the sealing,Outside the sealing
Grounding possible:
Yes
Foamed gasket:
Yes
Suitable for door thickness from:
1.50 mm
Suitable for door thicknesses up to:
2 mm
Locking means key tag:
Insert square, triangular, Daimler Benz, slot, etc.
Key Tag Size:
long
Locking components:
Rod control,Bearing bush with cam
No Specifications
View All Products

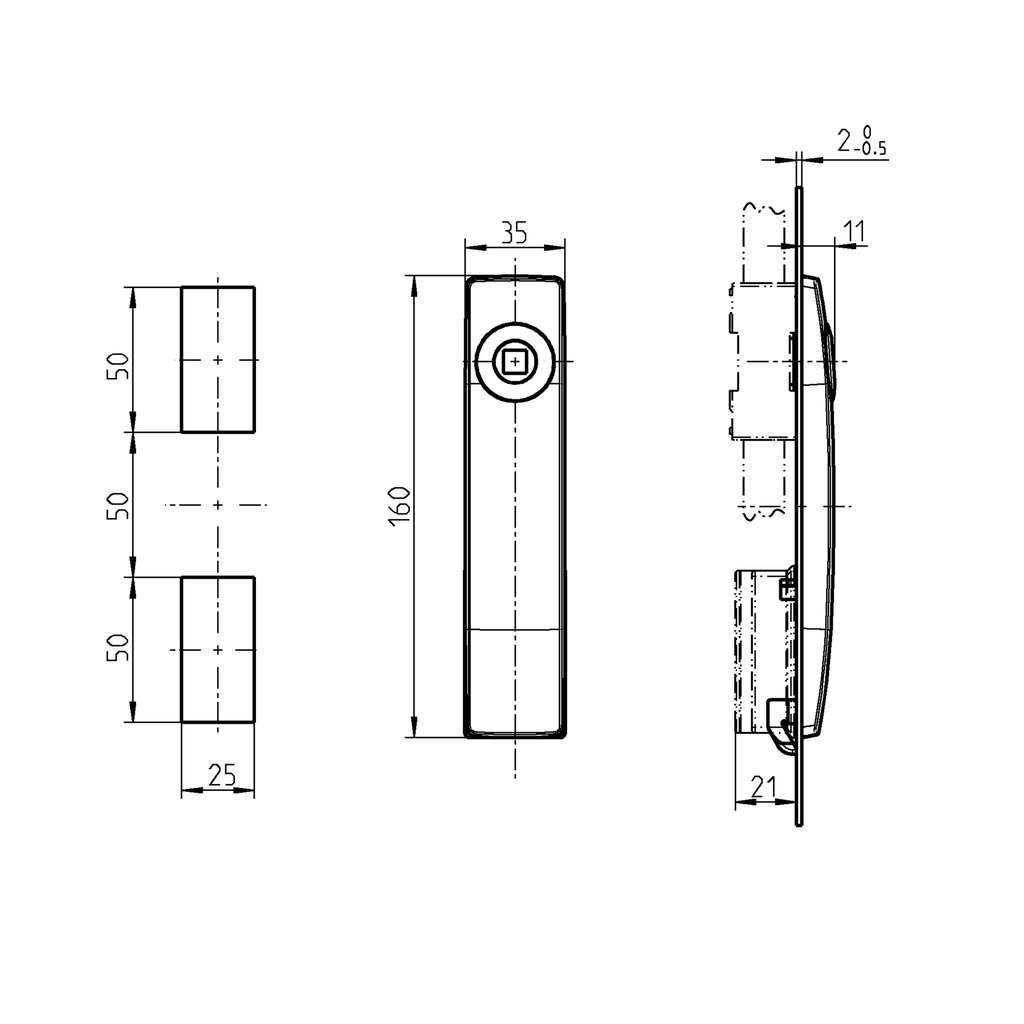

Here you can find the product data sheets and CAD files of this product
