EMKA Proflex aluminium window kit, Aluminium anodized
EMKA Proflex aluminium window, Aluminium anodized

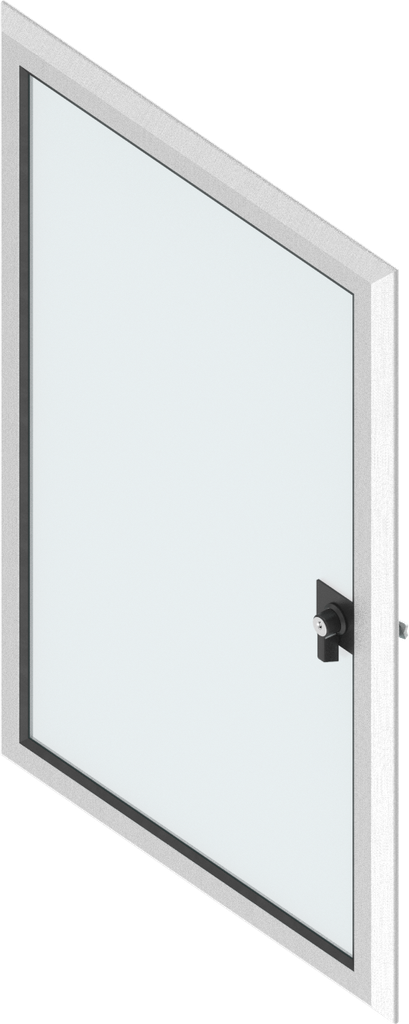

Aluminium window without frame with wing knob quarter turn at the front, keyed 2233X, Aluminium anodized; 1200-U60_BxH
Product information:

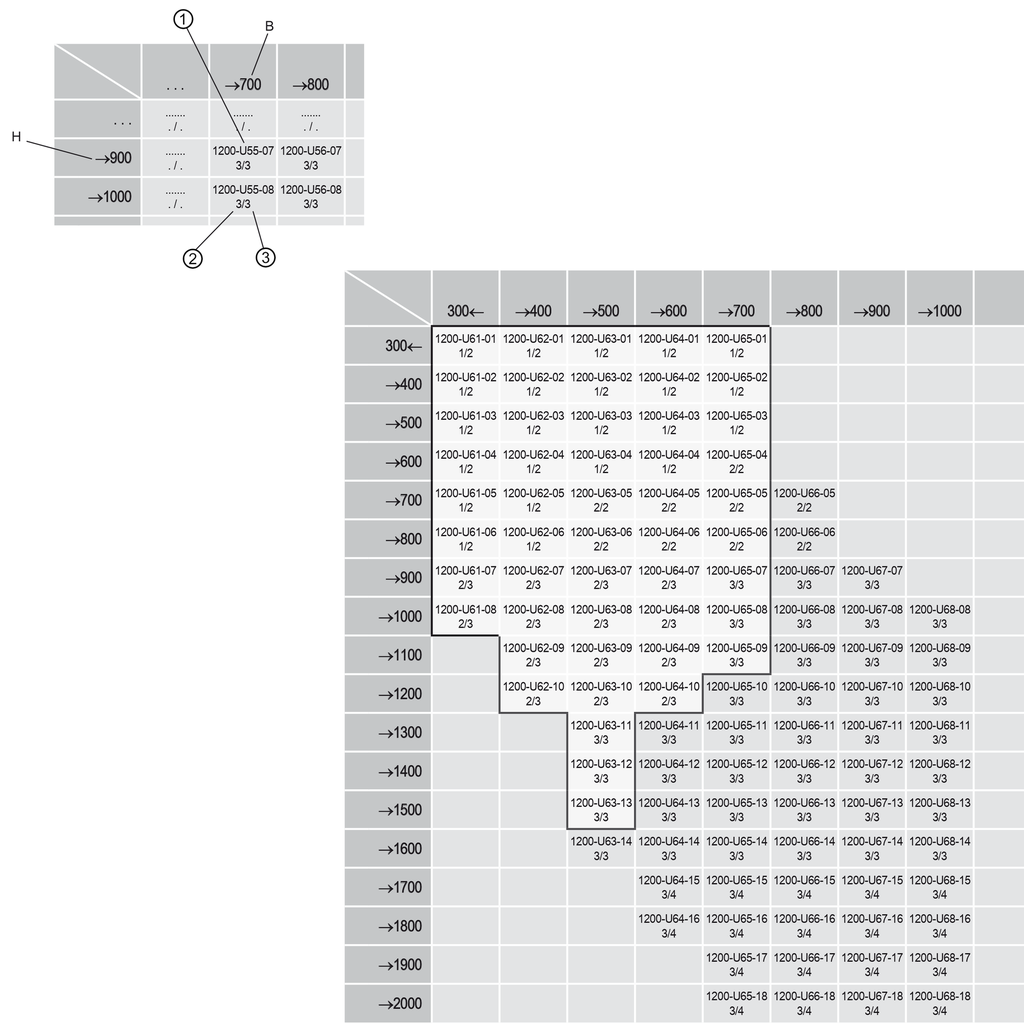

1 = Part no. 2 = Number of locks 3 = Number of hinges H = Height B = Width The framed parts are also available with safety glass or with aluminium composite panel. In case of bigger aluminium windows of this version with several locks only one lock is lockable Keyed different on request
B = Width
In case of bigger aluminium windows of this version with several locks only one lock is lockable
Keyed different on request
Order / Calculation example:
You need an aluminium window with the dimensions B = 620 mm, H = 840 mm. Please order: 1200-U65-07 620x840
Internal Reference:
1200-U60_BXH
Product Type:
Aluminium windows
Program:
1200
Material of the module :
Aluminium
Surface of the module:
anodized
Essay window art:
Aluminium window without frame
Dimension B max.:
1000 mm
Dimension B min:
300 mm
Fixing type:
Nut fixing / riveting from the front
Dimension H max.:
2000 mm
Dimension H min.:
300 mm
Opening Angle:
140°
Lock Type(2):
Knob handle
Shutter Position:
At the front in the window
No Specifications
No Matching Products
Here you can find the product data sheets and CAD files of this product
