Locking plate for shoe, Steel zinc-plated
Locking plate for shoe, Steel zinc-plated
Fixing material adapter and screw for cam for escutcheon;
Fixing material adapter and screw for cam for escutcheon;

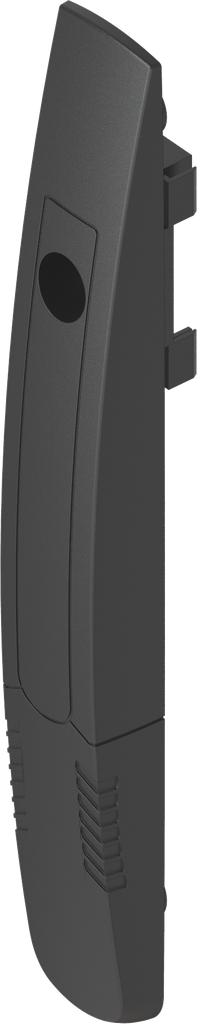

Escutcheon, Polyamide GF black; 1190-U3

https://20260223-uat.emka.opaas.sh/shop/1190-u3-escutcheon-polyamide-gf-black-227524 https://20260223-uat.emka.opaas.sh/web/image/product.template/227524/image_1920?unique=61a053d

2.54 € 2.54 EUR 2.54 €

0.00 €

Not Available For Sale

    This combination does not exist.

    Inside the sealing Outside the sealing Protection class IP 40
    Contact Us
    Terms and Conditions :
    100% original guarantee
    Return within 30days
    Free delivery on all orders
    Internal Reference: 1190-U3
    Standards: Protection class IP 40
    Barcode: 1190-U00003-0000000
    Product Type: Escutcheon
    Program: 1190
    Catalog sheet: 3F-220
    Material of the module : Polyamide GF
    Surface of the module: black
    Number of Possible Locking Points: 1 point, 2 points, 3 point, 4 point, More than 4 points available on request
    Mounting Positions : Inside the sealing,Outside the sealing
    Door thickness: 2 mm
    Locking components: Cam,Rod control
    No Specifications
    View All Products
    Insert
    Fixing material for swinghandle
    Here you can find the product data sheets and CAD files of this product
