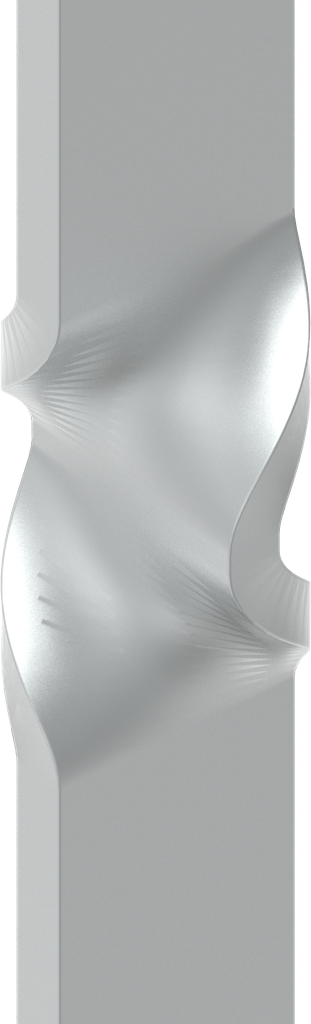

Flat rod with torsion for top, Aluminium; 1190-25-01TA

https://20260223-uat.emka.opaas.sh/shop/1190-25-01ta-flat-rod-with-torsion-for-top-aluminium-227408 https://20260223-uat.emka.opaas.sh/web/image/product.template/227408/image_1920?unique=029ff9a

1.72 € 1.72 EUR 1.72 €

0.00 €

Not Available For Sale

    This combination does not exist.

    Outside the sealing
    Contact Us
    No stock item, please ask for availability
    Terms and Conditions :
    100% original guarantee
    Return within 30days
    Free delivery on all orders

    Product information:

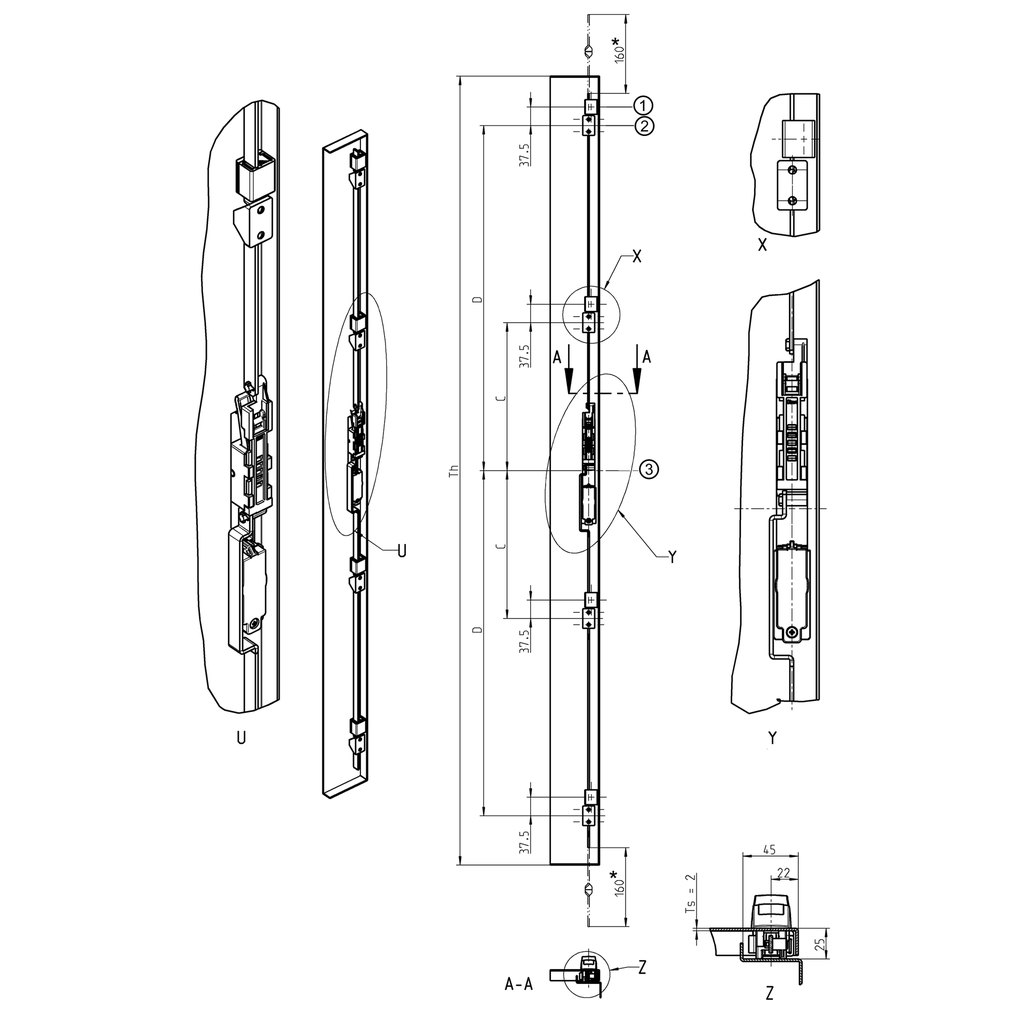

    Order respective upper and lower flat rod separately.

    * Flat rod must be shortened

    ① = Rod guide centre
    ② = Catch centre
    ③ = Door centre

    Akeneo Note:

    For door height 800 - 1200 the flat rod must be shortened; dimension D 300.
    Internal Reference: 1190-25-01TA
    Barcode: 1190-000025-00001ta
    Product Type: Rod
    Material: Aluminium
    Program: 1190
    Catalog sheet: 3ZA-560
    Connecting rod position: Outside the sealing, top or bottom
    Number of Possible Locking Points: 2 points
    Article with property rights: Yes
    C Dimension:
    D Dimension: 450
    Mounting Positions : Outside the sealing
    Flat Bar Outside: Flat rod with torsion
    For Door Height: 1200-1600
    No Specifications
    View All Products
    Rod guide
    Catch
    Rod control
    Swinghandle, Lifthandle
    Here you can find the product data sheets and CAD files of this product
