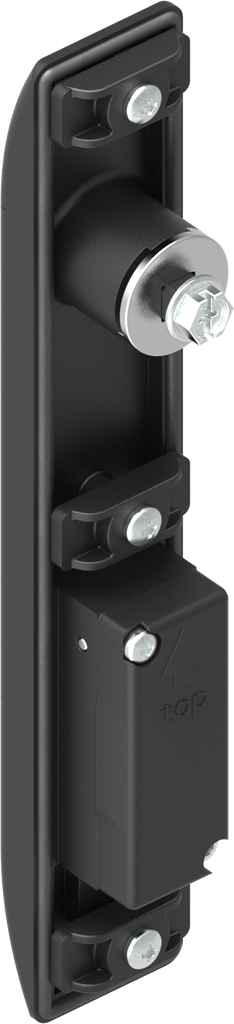

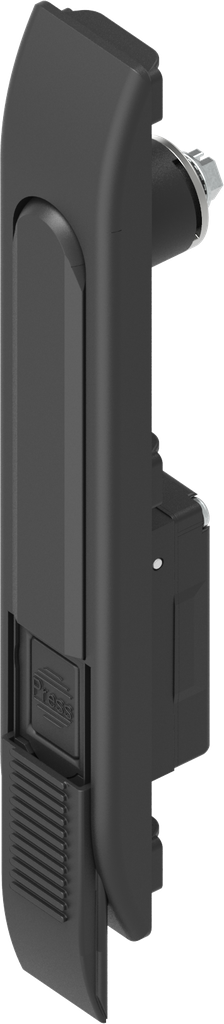

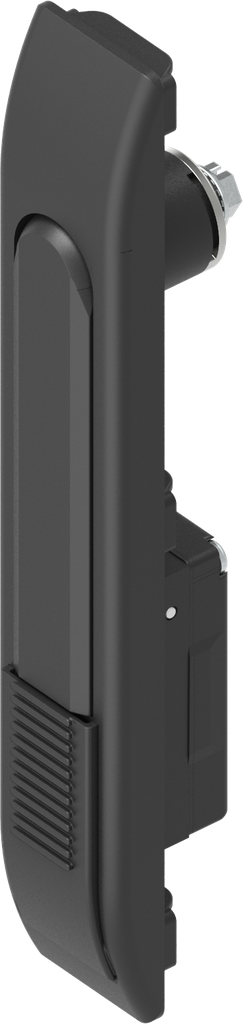

Swinghandle 1180 for 3-point locking system with push button, Polyamide and zinc die black powder-coated; 1180-U201
Internal Reference:
1180-U201
Product Type:
Swinghandle, Lifthandle
Program:
1180
Catalog sheet:
3E-320
Material of the module :
Polyamide and zinc die
Surface of the module:
black powder-coated
Door return variable:
Yes
Number of Possible Locking Points:
1 point, 2 points, 3 point
Number of Locking:
One locking set
Mounting Positions :
Inside the sealing
Foamed gasket:
Yes
Handle Art(1):
Swinghandle
Suitable for door thickness from:
1.50 mm
Suitable for door thicknesses up to:
2.50 mm
Locking set:
Push button
Locking set modular technology:
Profile half cylinder with cap, A = 30, mounted at the dish,ASSA cylinder with cap, mounted at the dish,Round cylinder with cap, mounted at the dish,Round cylinder without cap, mounted at the dish,Insert without cap, mounted at the dish
locking set cover:
Yes
Swivel Handle:
14 mm
Pan Handle Length:
215 mm
Door revolvable / reversible:
Yes
Door Version :
Left,Right
Locking components:
Cam
