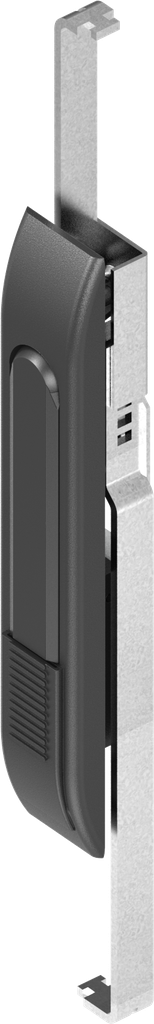

Swinghandle 1180 with rods with push button, Polyamide and zinc die black powder-coated; 1180-U1

https://20241023-uat.emka.opaas.sh/products/1180-u1 https://20241023-uat.emka.opaas.sh/web/image/product.template/65066/image_1920?unique=cf32ade


    This combination does not exist.

    Inside the sealing Outside the sealing Foamed seal Protection class IP 54 Left Right


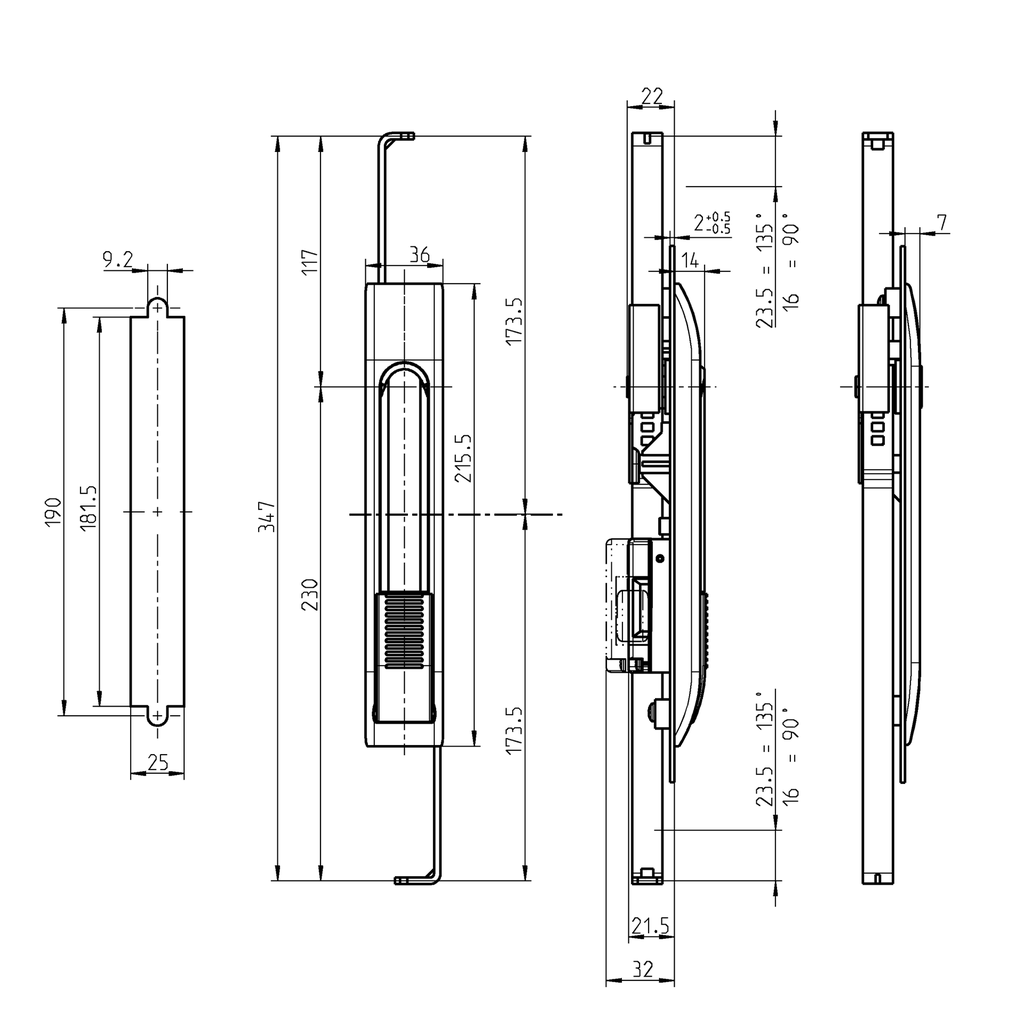

    Function:

    Turn 135° = Stroke 23.5 mm
    Turn 90° = Stroke 16 mm

    Internal Reference: 1180-U1
    Product Type: Swinghandle, Lifthandle
    Program: 1180
    Catalog sheet: 3E-120
    Material of the module : Polyamide and zinc die
    Surface of the module: black powder-coated
    Dimension A, Variable: 25 mm
    Door return variable: Yes
    Number of Possible Locking Points: 2 points, 4 point, More than 4 points available on request
    Number of Locking: One locking set
    Mounting Positions : Inside the sealing,Outside the sealing
    Foamed gasket: Yes
    Handle Art(1): Swinghandle
    With integrated rod control / 3-point cam: Yes
    Suitable for door thickness from: 1.50 mm
    Suitable for door thicknesses up to: 2.50 mm
    Locking set modular technology: Profile half cylinder with cap, A = 30, mounted at the dish,ASSA cylinder with cap, mounted at the dish,Push button without cap, mounted at the dish,Round cylinder without cap, mounted at the dish,Insert without cap, mounted at the dish
    locking set cover: Yes
    Swivel Handle: 14 mm
    Pan Handle Length: 215 mm
    Door revolvable / reversible: Yes
    Door Version : Left,Right
    Locking components: Rod control
    No Specifications
