Rod with torsion for top, Steel zinc-plated
Rod with torsion for top, Steel zinc-plated
Swinghandle 1180 with rods with push button, Polyamide and zinc die black powder-coated
Swinghandle 1180 with rods with push button, Polyamide and zinc die black powder-coated

Rod with torsion for bottom, Steel zinc-plated; 1180-09-05RA

https://20241023-uat.emka.opaas.sh/products/1180-09-05ra https://20241023-uat.emka.opaas.sh/web/image/product.template/65060/image_1920?unique=7db622d

    This combination does not exist.

    Outside the sealing
    Contact Us

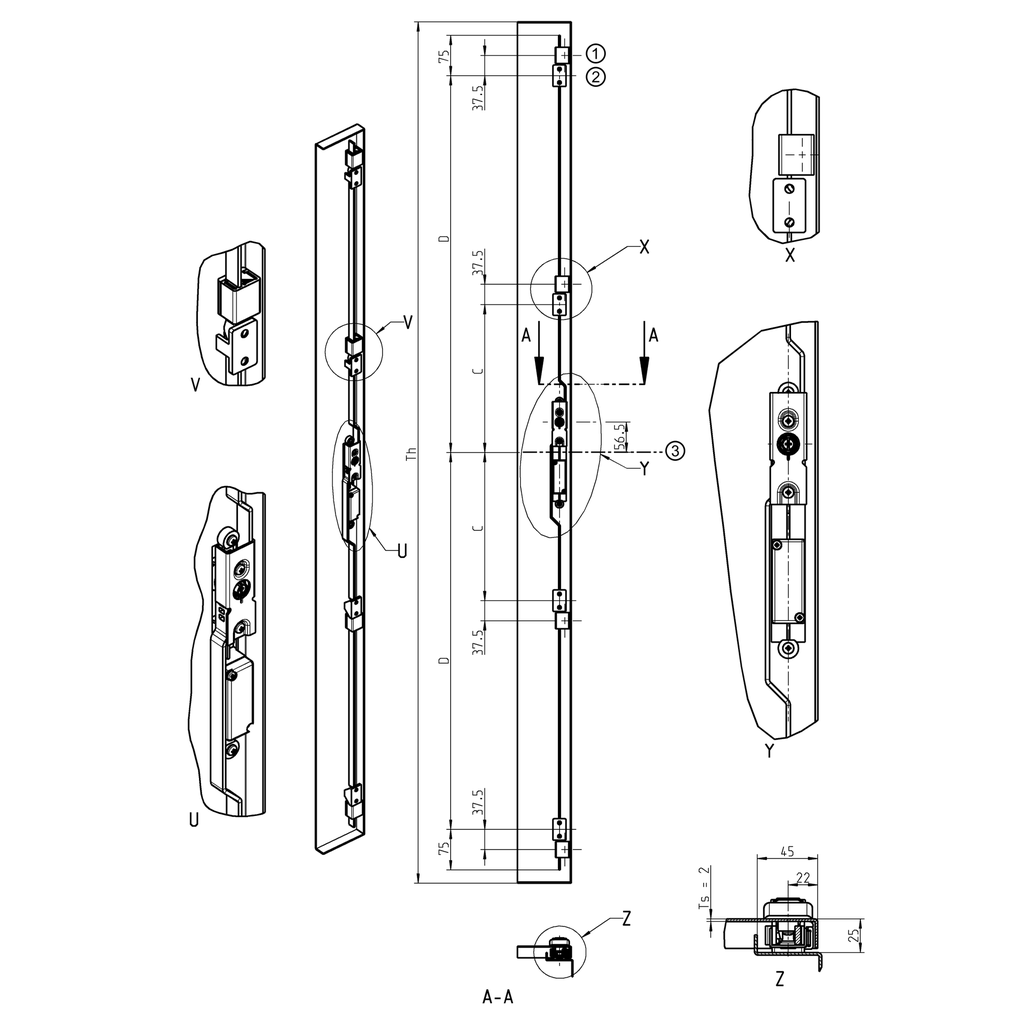

    Product information:

    ① = Rod guide centre
    ② = Catch centre
    ③ = Door centre
    Internal Reference: 1180-09-05RA
    Product Type: Rod
    Material: Steel
    Program: 1180
    Surface: zinc-plated
    Catalog sheet: 3ZA-520
    Connecting rod position: Outside the sealing, top or bottom
    Number of Possible Locking Points: 2 points
    Article with property rights: Yes
    C Dimension: 275
    D Dimension: 700
    Mounting Positions : Outside the sealing
    Flat Bar Outside: Flat rod with torsion
    For Door Height: 1600-1900
    No Specifications
    View All Products
    Rod guide
    Catch
    Rod control
    Swinghandle, Lifthandle
    Escutcheon
    Here you can find the product data sheets and CAD files of this product
    Main catalogue | 3ZA-520
    Product data sheet
    CAD file | 1180-09-05RA_igs
    CAD file | 1180-09-05RA_stp
