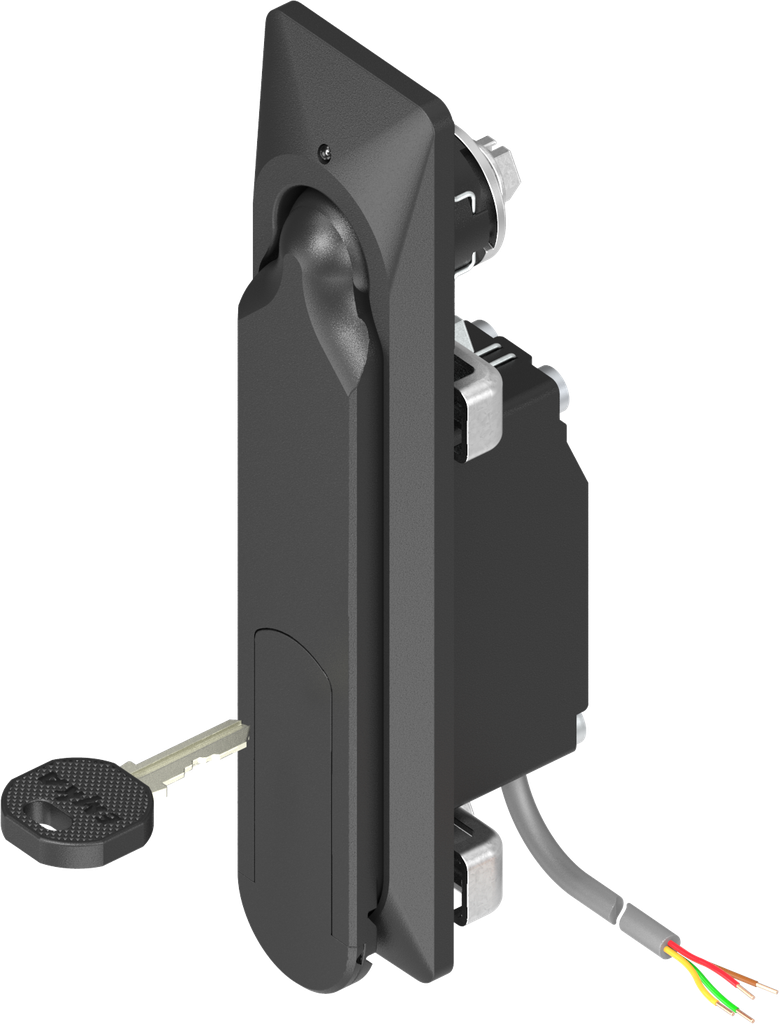

Swinghandle 1154 with electromagnetic release and emergency opening, keyed different, Zinc die black powder-coated
Swinghandle 1154 with electromagnetic release and emergency opening, keyed different, Zinc die black powder-coated
Swinghandle 1154 with electromagnetic release and emergency opening, keyed different, Zinc die black powder-coated; 1154-U6-3V
Function:
This handle is suitable for locking outdoor cabinets.
By applying a 12 V, 24 V or 48 V DC signal, the handle is released.

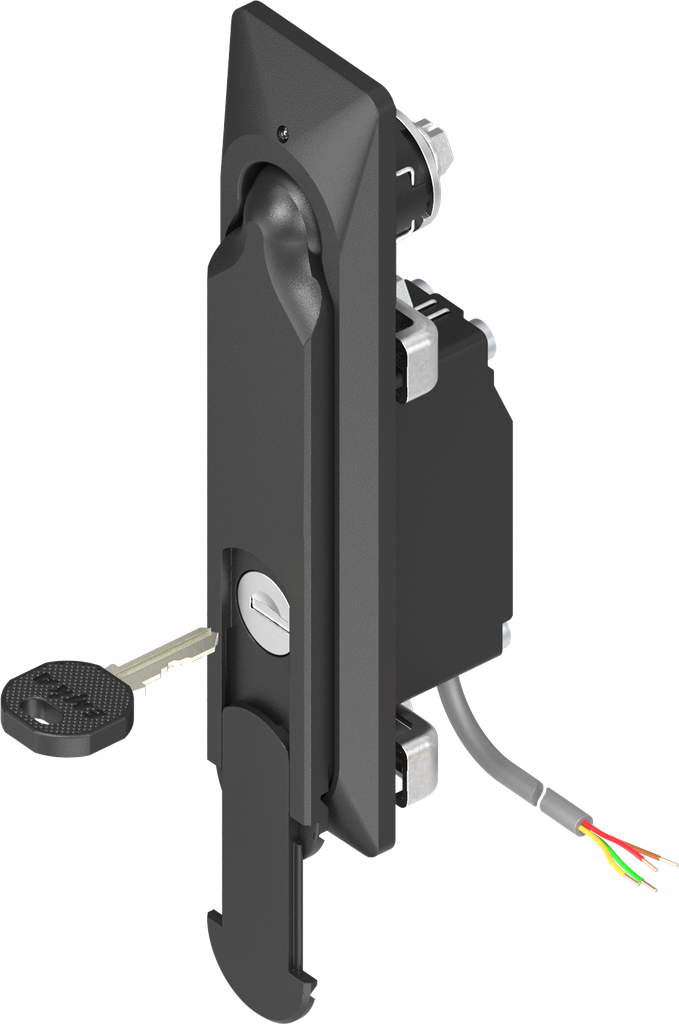

After pushing the handle briefly into the dish, it can be opened. The integrated reed contact is used for remote monitoring of the handle status. To lock the handle it must be pressed into the dish until the locking mechanism engages. The key provided is used to open the handle in case of power failure. To open the cylinder cover the screw M3 has to be removed. Then it is possible to unlock by means of round / pin cylinder
On release of the handle, the LED is illuminated.
The maximum power-on time is 1 minute.
Internal Reference:
1154-U6-3V
Product Type:
Swinghandle, Lifthandle
Program:
1154
Catalog sheet:
3C-240
Material of the module :
Zinc die
Surface of the module:
black powder-coated
Door return variable:
Yes
Number of Possible Locking Points:
1 point, 2 points, 3 point
Number of Locking:
One locking set and electromechanical version
Article with property rights:
Yes
Mounting Positions :
Inside the sealing
Electromechanical Unlocking :
12 V
Foamed gasket:
Yes

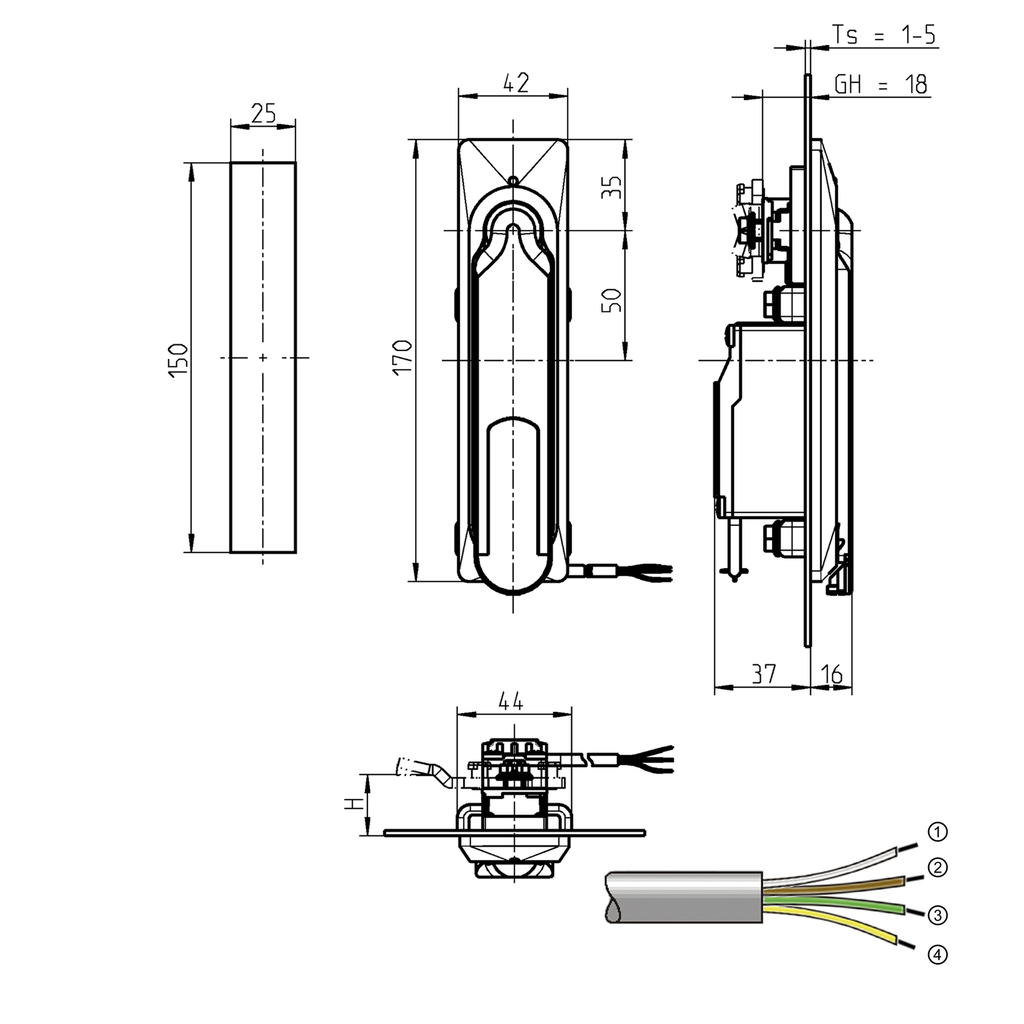

GH Mass:
18 mm
Handle Art(1):
Swinghandle
Emergency opening:
Yes
Suitable for door thickness from:
1 mm
Suitable for door thicknesses up to:
5 mm
Round Cylinder Type:
EMKA EK, differently keyed
Locking set:
Round cylinder
locking set cover:
Yes
Swivel Handle:
16 mm
Pan Handle Length:
170 mm
Door revolvable / reversible:
Yes
Door Version :
Left,Right
Locking components:
Cam
