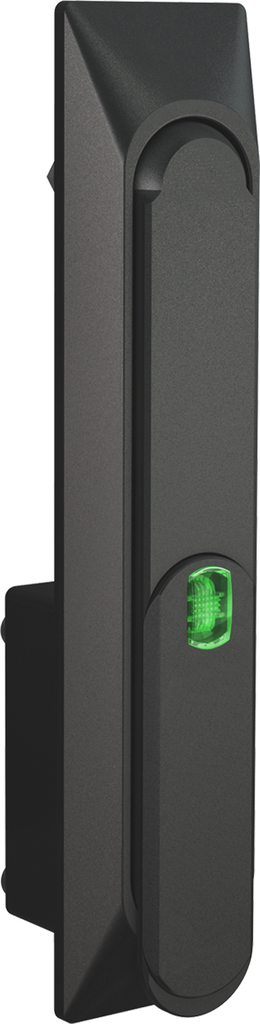

Swinghandle 1150 with electromagnetic release and emergency opening, keyed EH 333, Polyamide and zinc die black powder-coated
Rod control, Stainless steel AISI 316

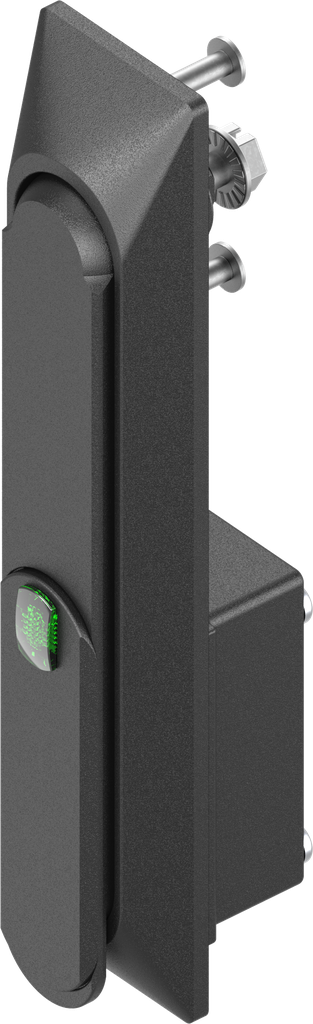

Swinghandle 1150 with electromagnetic release and emergency opening, keyed different, Polyamide and zinc die black powder-coated; 1150-U56-1V
with solenoid 24V; for rod control or cam
Product information:

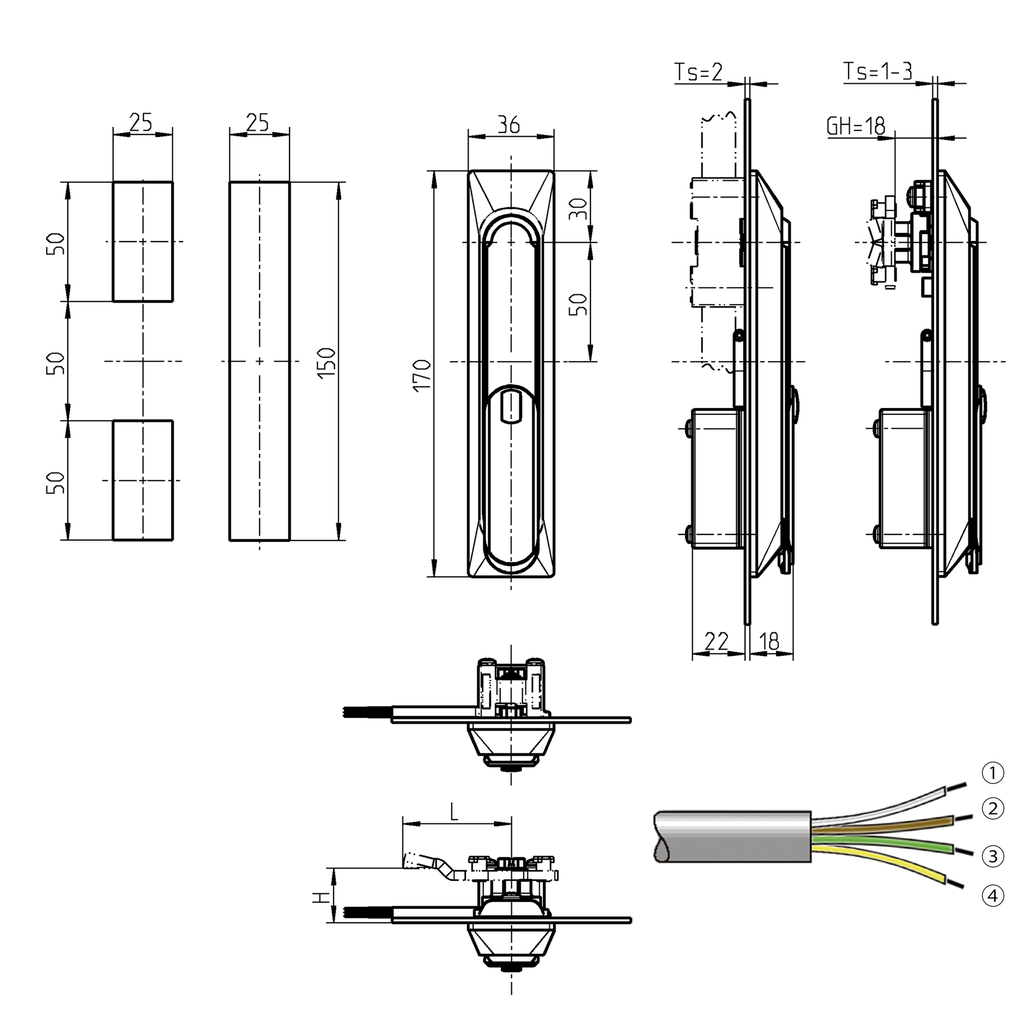

1 = white (+)
2 = brown (-)
3 = green contact
4 = yellow contact
After pushing the handle briefly into the dish, it can be opened.

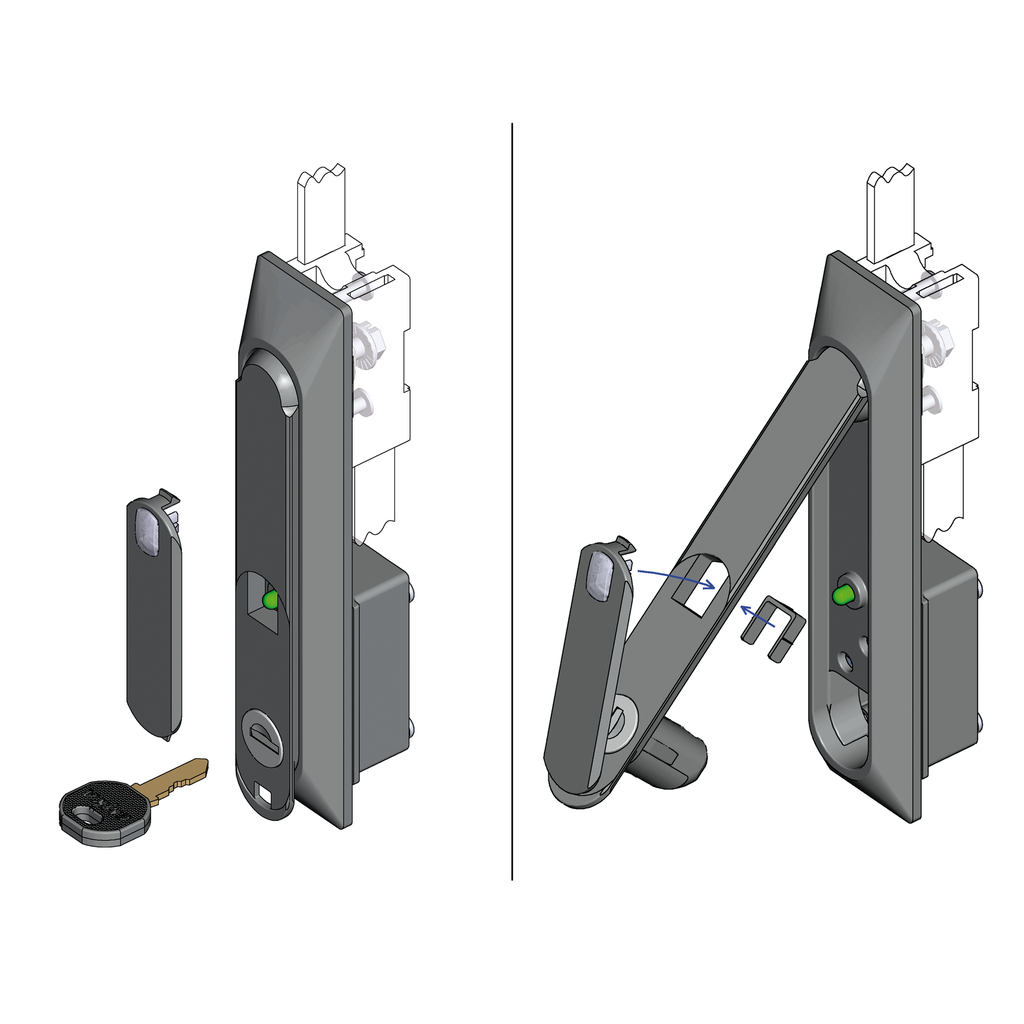

The integrated reed contact is used for remote monitoring of the handle status. To lock the handle it must be pressed into the dish until the locking mechanism engages. The provided key is used to open the handle in case of power failure. For this purpose the cover on the locking cylinder has to be removed. The cover will be destroyed thereby and must be replaced.
This handle can be connected to modules 3000-U32-02 and 3000-U47-02 or 3000-U47-07.
on release of the handle, the LED is illuminated
Function:
This handle is suitable for locking indoor cabinets. It is released by applying a voltage signal of 24 V DC. After pushing the handle briefly into the dish, it can be opened.The integrated reed contact is used for remote monitoring of the handle status. To lock the handle it must be pressed into the dish until the locking mechanism engages. The key provided is used to open the handle in case of power failure. For this purpose the cover on the locking cylinder has to be removed. The cover will be destroyed thereby and must be replaced.
This handle can be connected to modules 3000-U32-02 and 3000-U47-02 or 3000-U47-07.
On release of the handle, the LED is illuminated
Internal Reference:
1150-U56-1V
Standards:
Protection class IP 40
Product Type:
Swinghandle, Lifthandle
Program:
3000
Catalog sheet:
3C-160
Material of the module :
Polyamide and zinc die
Surface of the module:
black powder-coated
Door return variable:
Yes
Number of Possible Locking Points:
1 point, 2 points, 3 point, 4 point, More than 4 points available on request
Number of Locking:
One locking set and electromechanical version
Mounting Positions :
Inside the sealing,Outside the sealing
Electromechanical Unlocking :
24 V
Handle Art(1):
Swinghandle
Emergency opening:
Yes
Suitable for door thickness from:
1 mm
Suitable for door thicknesses up to:
3 mm
Round Cylinder Type:
EMKA EK, differently keyed
Locking set:
Round cylinder,Electromechanical release
locking set cover:
Yes
Swivel Handle:
18 mm
Pan Handle Length:
170 mm
Door revolvable / reversible:
Yes
Door Version :
Left,Right
Door thickness:
2 mm
Locking components:
Cam,Rod control
