Escutcheon with L-handle, non-keyed, Polyamide black and stainless steel
Escutcheon with L-handle, non-keyed, Polyamide black and stainless steel
Insert for padlock, Zinc die black powder-coated
Insert for padlock, Zinc die black powder-coated

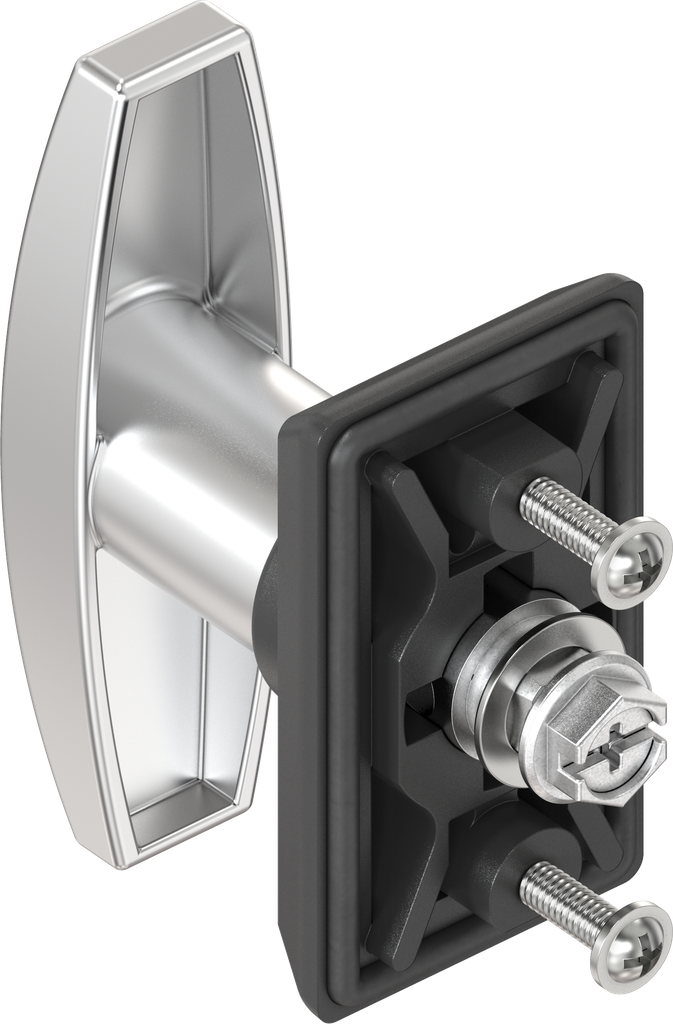

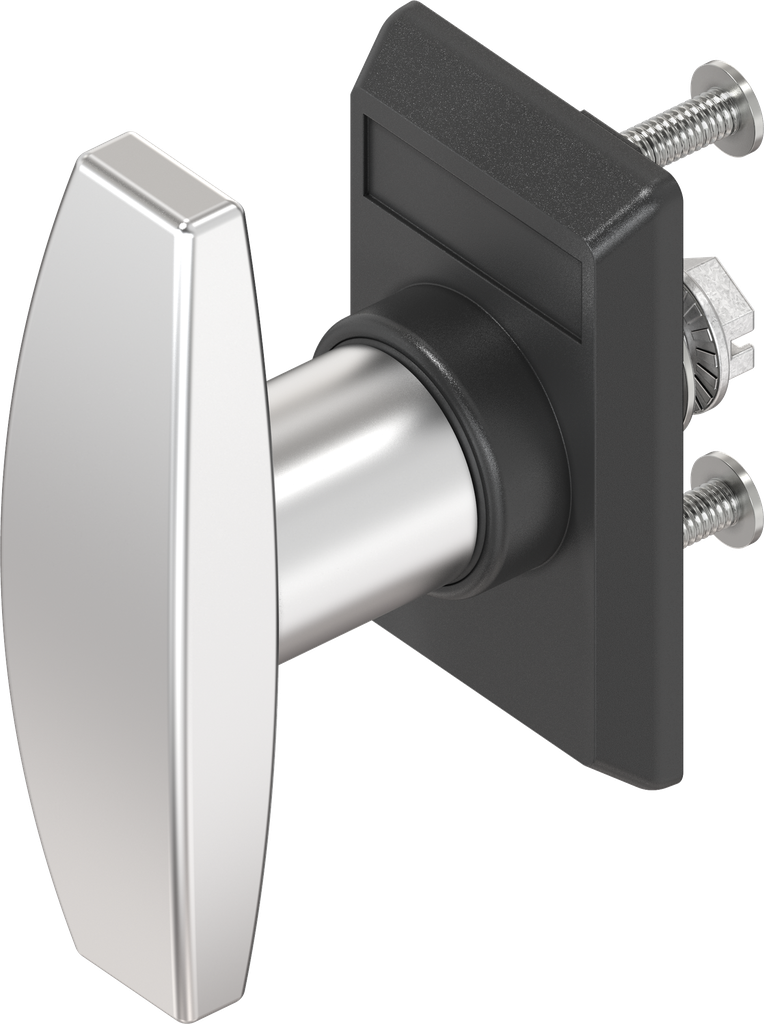

Escutcheon with T-handle, non-keyed, Stainless steel and polyamide black; 1123-U37-06

https://20241023-uat.emka.opaas.sh/products/1123-u37-06 https://20241023-uat.emka.opaas.sh/web/image/product.template/64581/image_1920?unique=c57f91b

    This combination does not exist.

    Inside the sealing Grounding possible Foamed seal Protection class IP 65
    Contact Us
    Internal Reference: 1123-U37-06
    Product Type: Escutcheon
    Program: 1123
    Catalog sheet: 3B-180
    Material of the module : Stainless steel and polyamide
    Surface of the module: black
    Number of Possible Locking Points: 1 point, 2 points, 3 point
    Mounting Positions : Inside the sealing
    Grounding possible: Yes
    Foamed gasket: Yes
    Handle Art: T-handle
    Locking means key tag: T-handle without lock
    Key Tag Size: short
    Door thickness: 2 mm
    Locking components: Rod control,Bearing bush with cam
    No Specifications
    View All Products
    Rod control
    Bearing bush
    Here you can find the product data sheets and CAD files of this product
    Main catalogue | 3B-180
    CAD file | 1123-U37-06_igs
    CAD file | 1123-U37-06_stp
