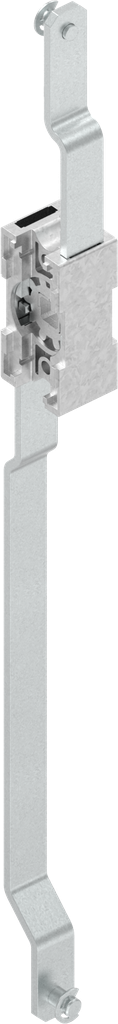

Rod control for flat rods, Zinc die and steel zinc-plated; 1121-U181-C

https://20241023-uat.emka.opaas.sh/products/1121-u181-c https://20241023-uat.emka.opaas.sh/web/image/product.template/348583/image_1920?unique=0705b63

    This combination does not exist.

    Inside the sealing Outside the sealing Left Right
    Contact Us

    Product information:

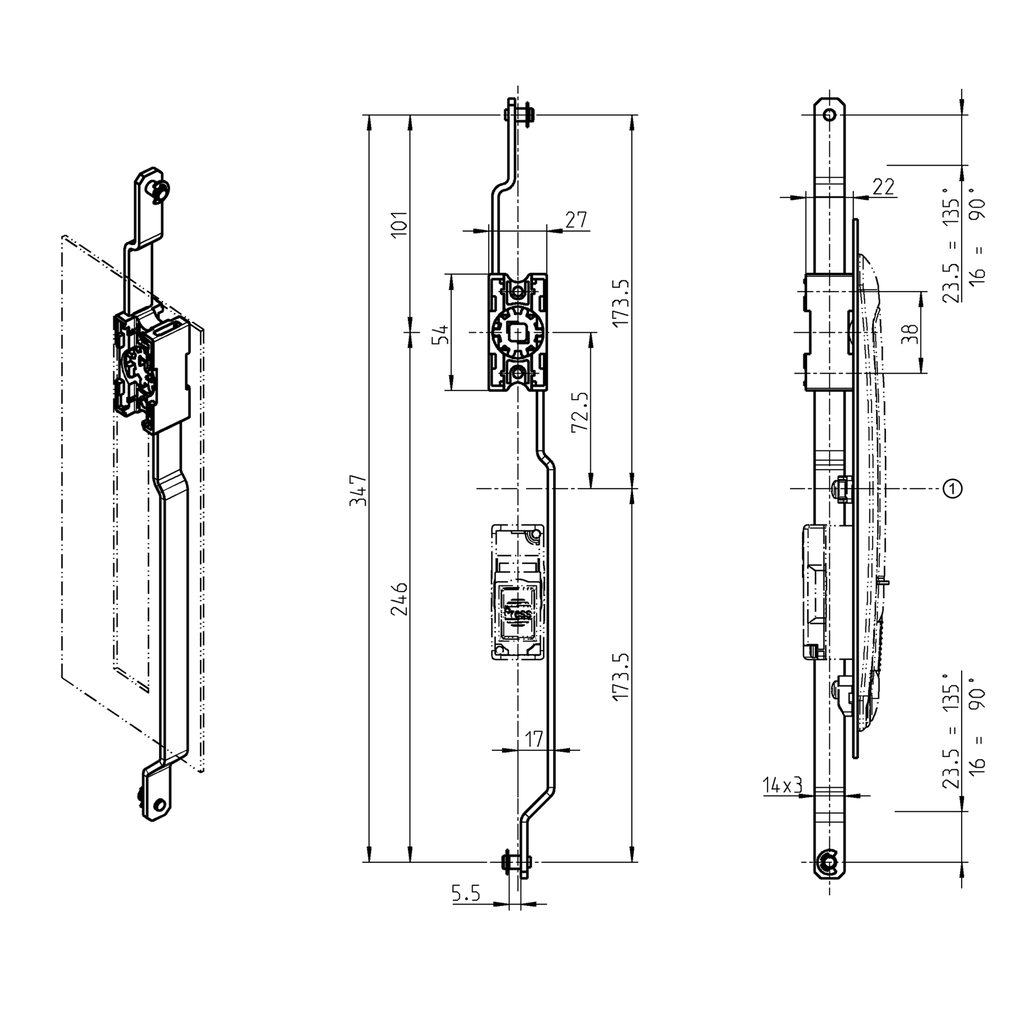

    ① = Center door

    Function:

    Turn 135° = Stroke 23.5 mm
    Turn 90° = Stroke 16 mm
    Internal Reference: 1121-U181-C
    Product Type: Rod control
    Program: 1121
    Catalog sheet: 3YA-480
    Material of the module : Zinc die and steel
    Surface of the module: zinc-plated
    Rod: Flat rod
    Connection rod mount: Rivet Ø 6 with circlip
    Article with property rights: Yes
    Mounting Positions : Inside the sealing,Outside the sealing
    Door Version : Left,Right
    No Specifications
    View All Products
    Cam
    Rod
    Adapter
    Swinghandle, Lifthandle
    Here you can find the product data sheets and CAD files of this product
    Main catalogue | 3YA-480
    Product data sheet
    CAD file | 1121-U181-C_igs
    CAD file | 1121-U181-C_stp
