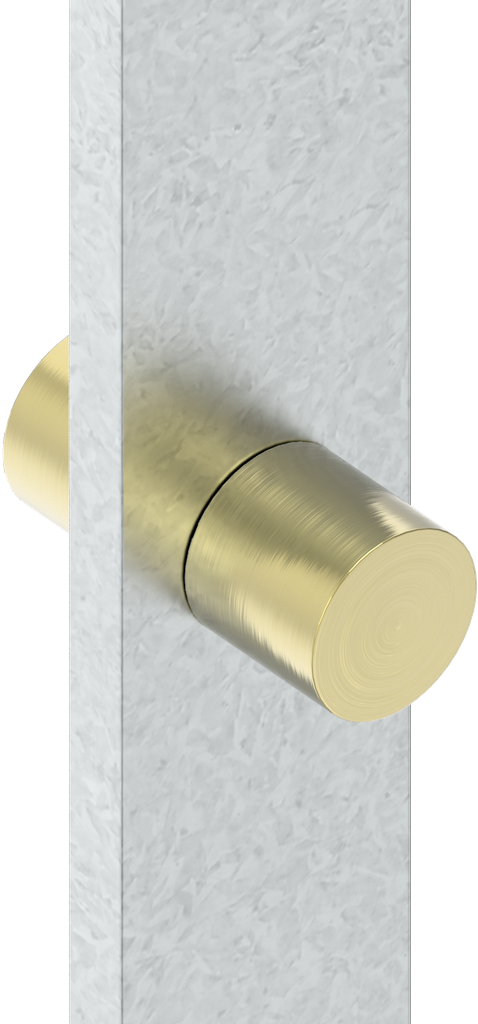

Flat rod L = 901 - 1000 mm, right version, Steel zinc-plated

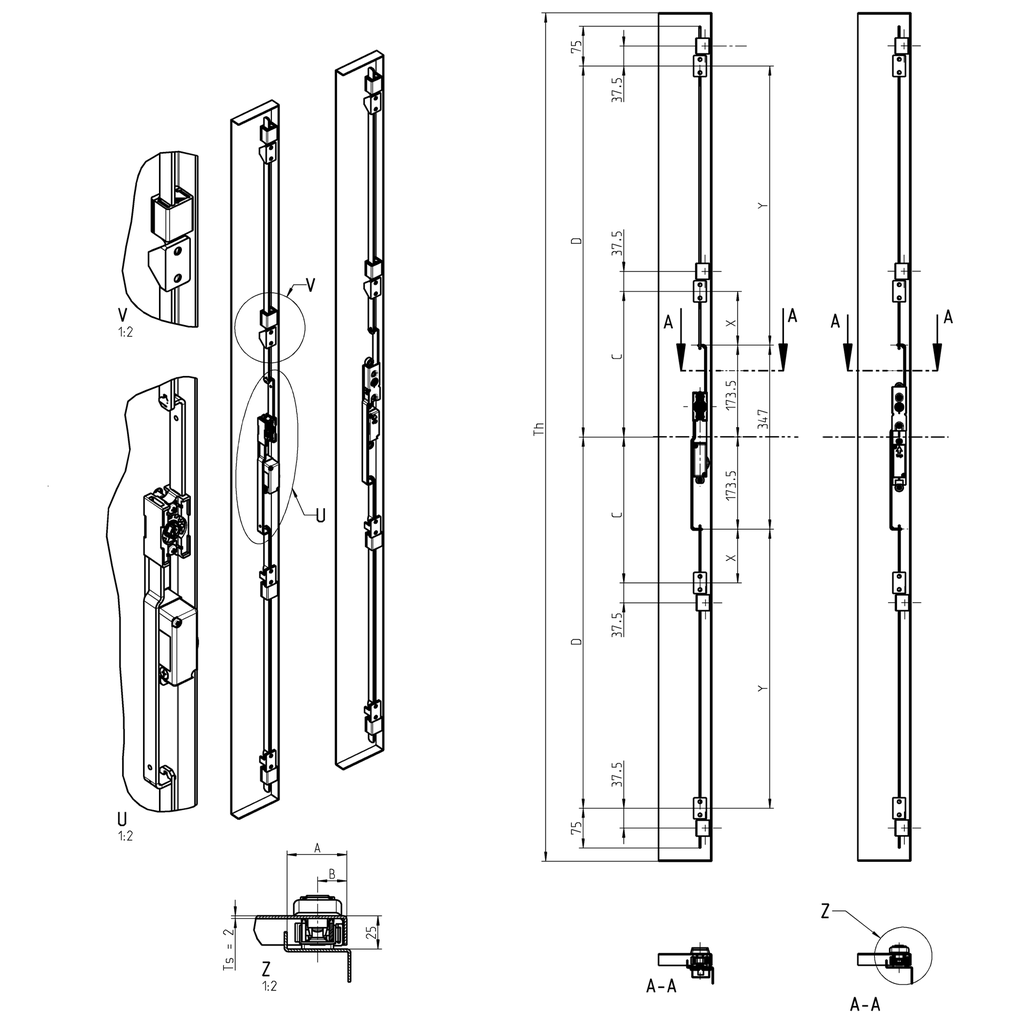

Flat rod with double roller for catch with catch bracket and extended catch area, Steel zinc-plated
Flat rod with double roller for catch with catch bracket and extended catch area, Steel zinc-plated; 1121-U155-01
Product information:

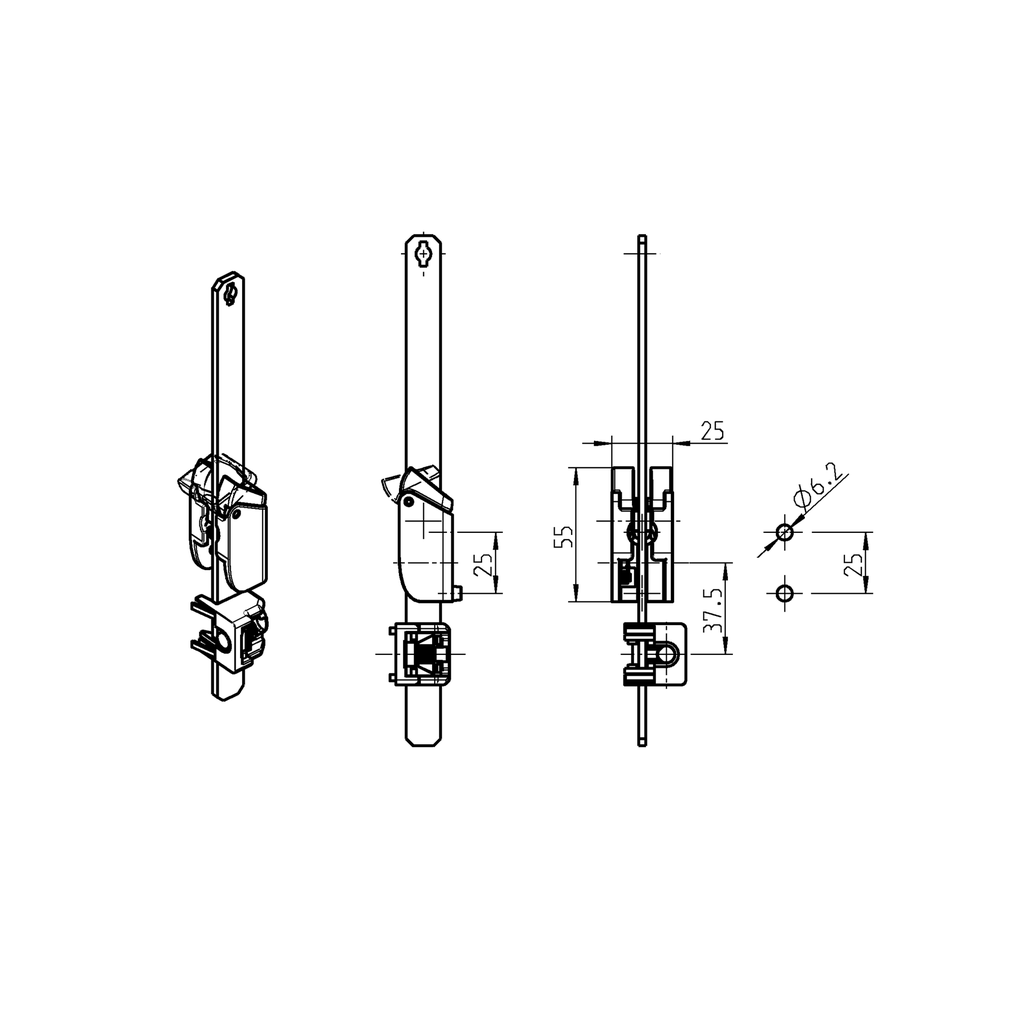

② = Flat rod with double roller for catch with catch bracket
③ = Catch bracket
④ = Rod guide
This flat rod can only be used together with the catch with catch bracket
Internal Reference:
1121-U155-01
Product Type:
Rod
Program:
1121
Catalog sheet:
3ZA-1210
Material of the module :
Steel
Surface of the module:
zinc-plated
Connecting rod position:
Outside the sealing, top or bottom
Number of Possible Locking Points:
1 point
C Dimension:
D Dimension:
300
Mounting Positions :
Outside the sealing
Flat Bar Outside:
Flat rod with double roller
For Door Height:
800-1200
X-Dimension:
Y-Dimension:
126.5
No Specifications
View All Products
Here you can find the product data sheets and CAD files of this product
