Flat rod L = 601 - 700 mm, right version, Steel zinc-plated
Flat rod L = 901 - 1000 mm, right version, Steel zinc-plated
Product information:

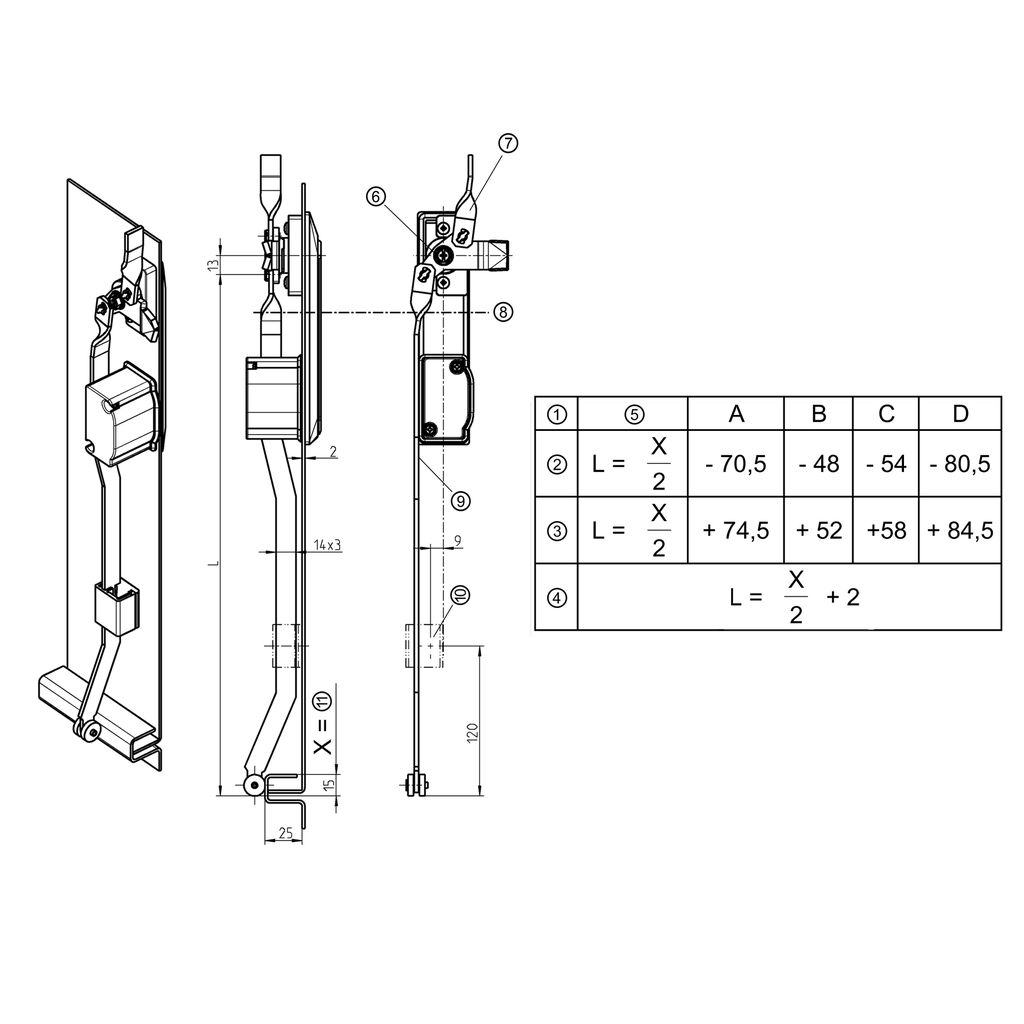

① = Calculation of rod length L
② = Rod, top
③ = Rod, bottom
④ = Centre of rotation at door centre, top and bottom same rod length
⑤ = Formula
⑥ = Centre of rotation
⑦ = Rod, top
⑧ = Door centre and clear height
⑨ = Rod, bottom
⑩ = Rod guide
⑪ = Clear height
A = Double cylinder swinghandle Program 1125; Swinghandle Program 1151 catalogue page 3C-420; Swinghandle Program 1154 catalogue page 3C-280
B = Swinghandle Program 1153 catalogue page 3C-320; Swinghandle Program 1154 catalogue page 3C-220 C = Swinghandle Program 1154 catalogue page 3C-260
D = Double cylinder swinghandle Program 1225
Ts = 2 mm, other door gauges on request
Order / Calculation example:
Order number for a flat rod with rollers and a length of 1034 mm = 1121-U147-L 1034
Internal Reference:
1121-U147-04
Product Type:
Rod
Program:
1121
Material of the module :
Steel
Surface of the module:
zinc-plated
Connecting rod position:
Inside the sealing, top or bottom
Mounting Positions :
Inside the sealing
Flat Bar Inside:
Flat rod with roller for cam
Dimension L up to:
800 mm
Dimension L from:
701 mm
No Specifications
View All Products
Here you can find the product data sheets and CAD files of this product
