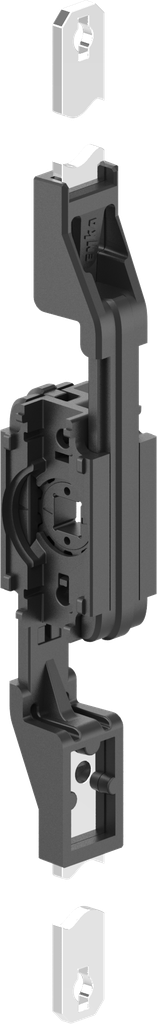

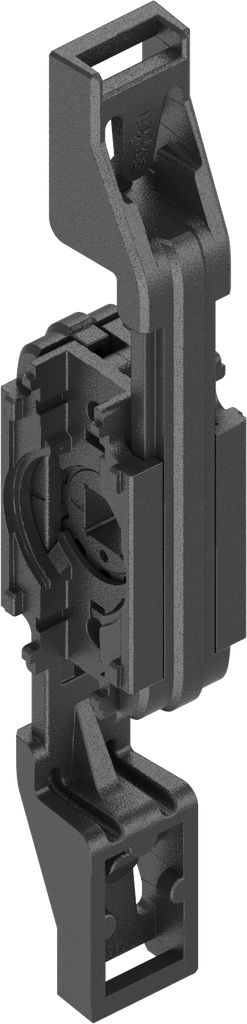

Rod control for flat rods, Made of high-quality plastic combination black; 1121-U1-K

https://20241023-uat.emka.opaas.sh/products/1121-u1-k https://20241023-uat.emka.opaas.sh/web/image/product.template/64483/image_1920?unique=c15332e

    This combination does not exist.

    Inside the sealing Outside the sealing Left Right
    Contact Us

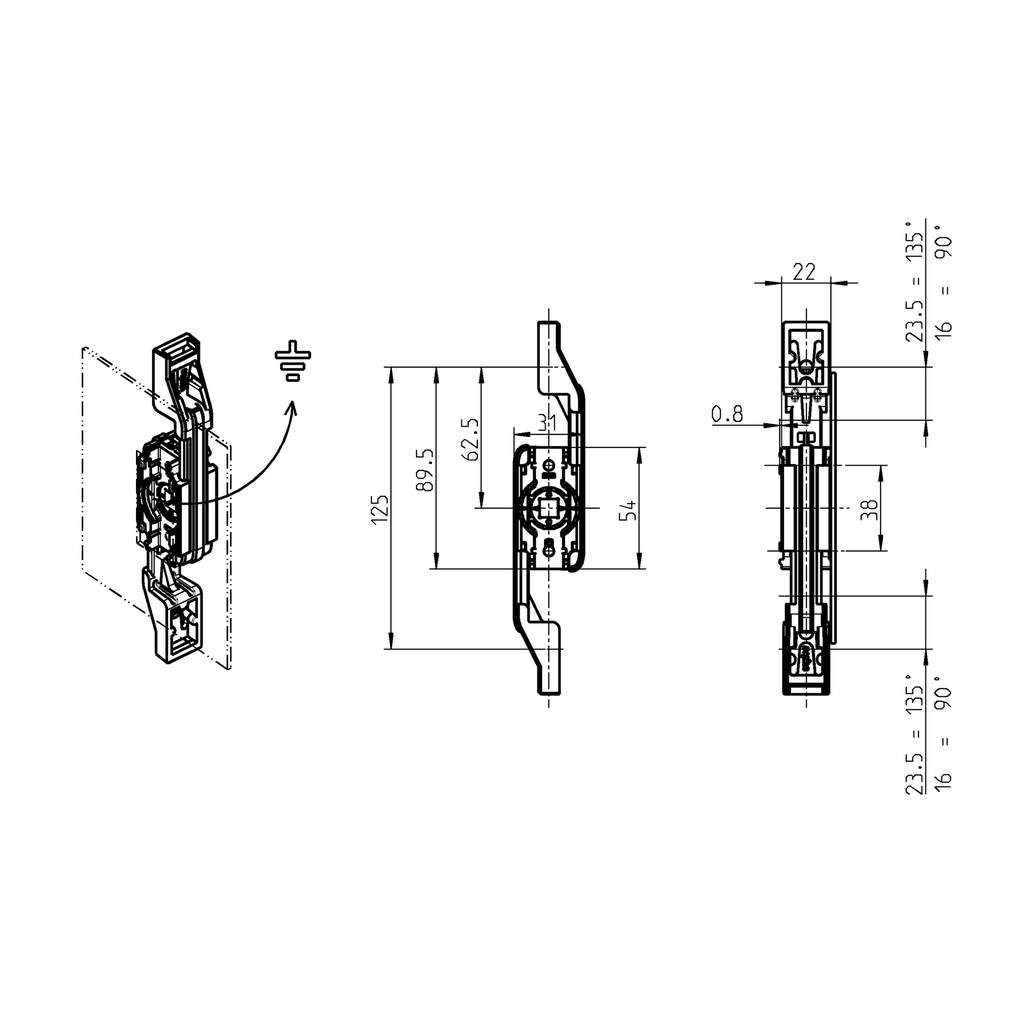

    Function:

    Turn 135° = Stroke 23.5 mm
    Turn 90° = Stroke 16 mm
    Internal Reference: 1121-U1-K
    Product Type: Rod control
    Program: 1121
    Catalog sheet: 3YA-115
    Material of the module : Made of high-quality plastic combination
    Surface of the module: black
    Rod: Flat rod
    Connection rod mount: Rivet clip-in, quick mounting
    Article with property rights: Yes
    Mounting Positions : Inside the sealing,Outside the sealing
    Grounding device possible: Yes
    Quick assembly of rod: Yes
    Door Version : Left,Right
    No Specifications
    View All Products
    Cam
    Rod control accessories

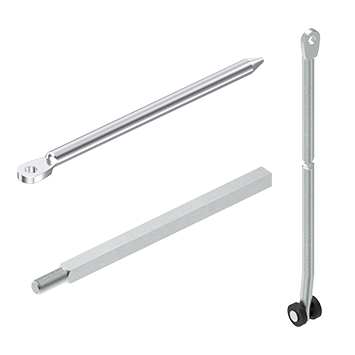

    Rod
    Adapter
    Escutcheon
    Here you can find the product data sheets and CAD files of this product
    Main catalogue | 3YA-115
    Product data sheet
    CAD file | 1121-U1-K_igs
    CAD file | 1121-U1-K_stp
