Rod guide for flat rod 14 x 3, clip-in, Polyamide GF V0 black
Rod guide for flat rod 14 x 3, clip-in, Polyamide GF V0 black
Rod guide for flat rod 14 x 3 for small bending area, clip-in, Polyamide black
Rod guide for flat rod 14 x 3 for small bending area, clip-in, Polyamide black

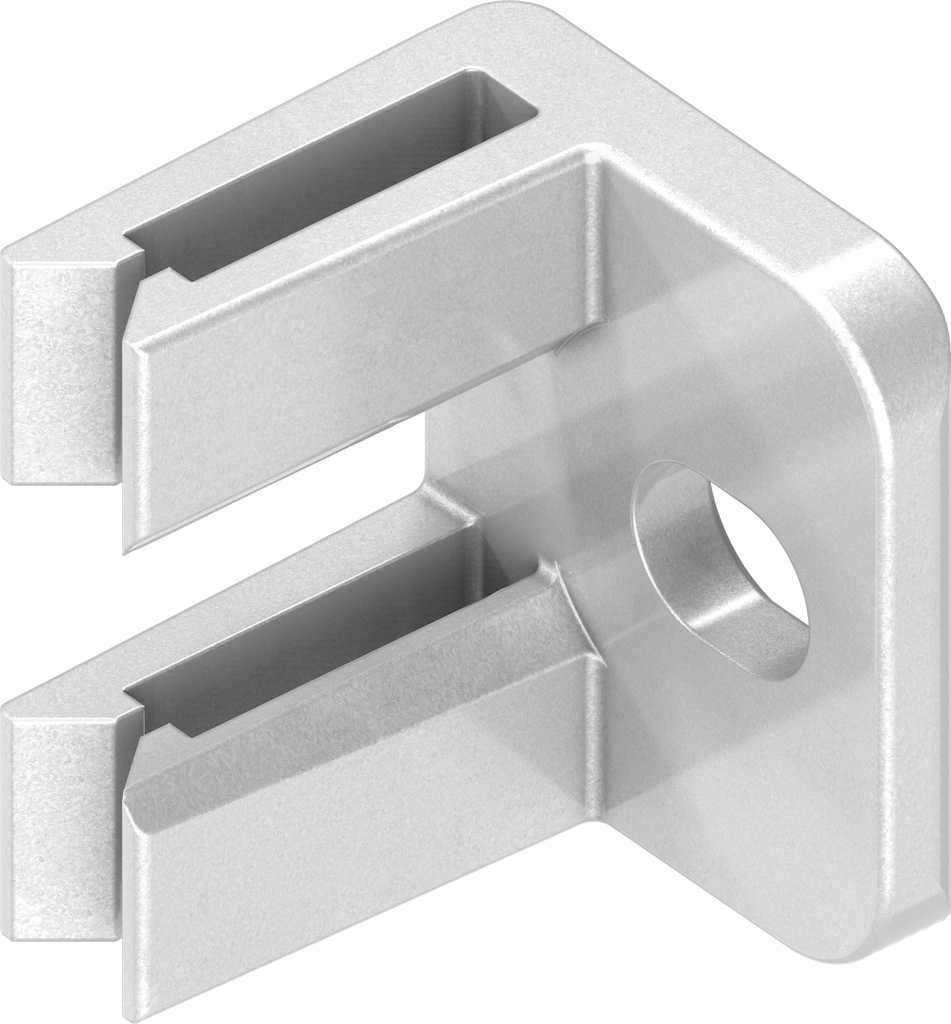

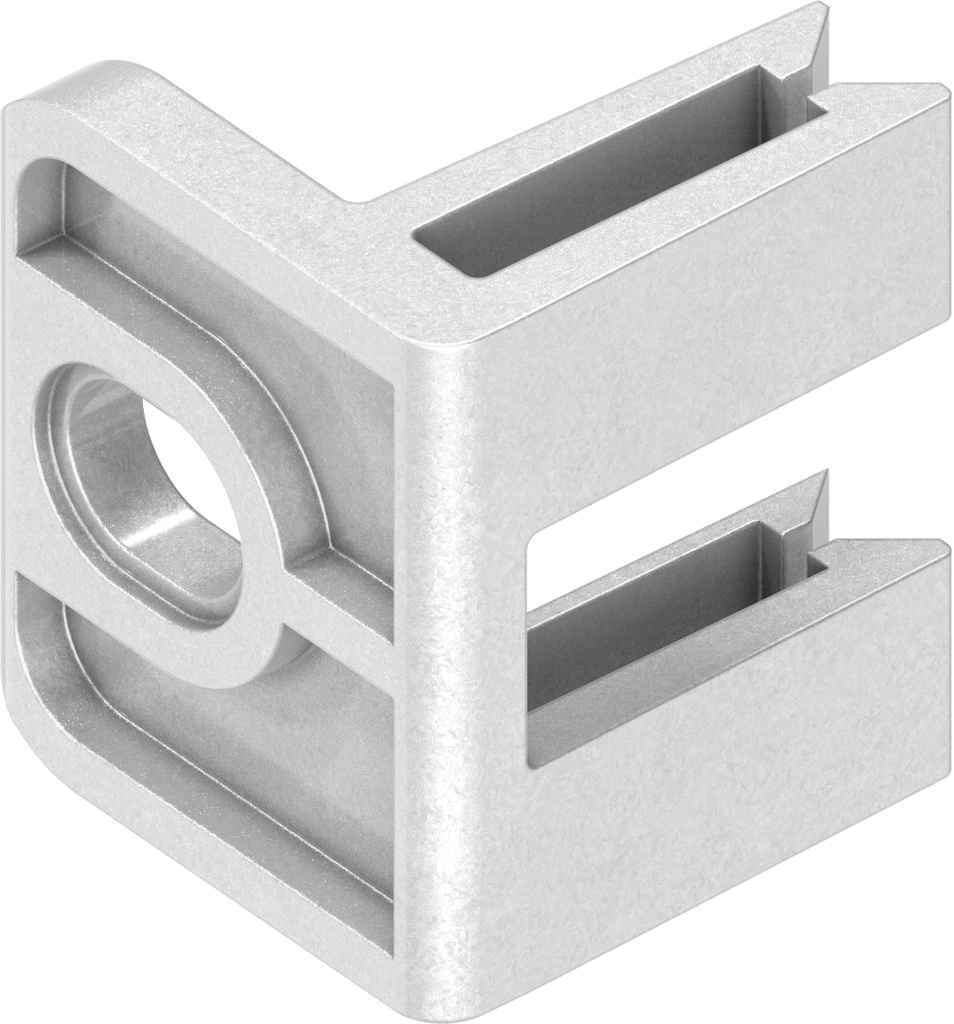

Rod guide for flat rod 14 x 3, clip-in, Polyamide GF silver grey metallic; 1121-89-CX

https://20241023-uat.emka.opaas.sh/products/1121-89-cx https://20241023-uat.emka.opaas.sh/web/image/product.template/64365/image_1920?unique=f86255a

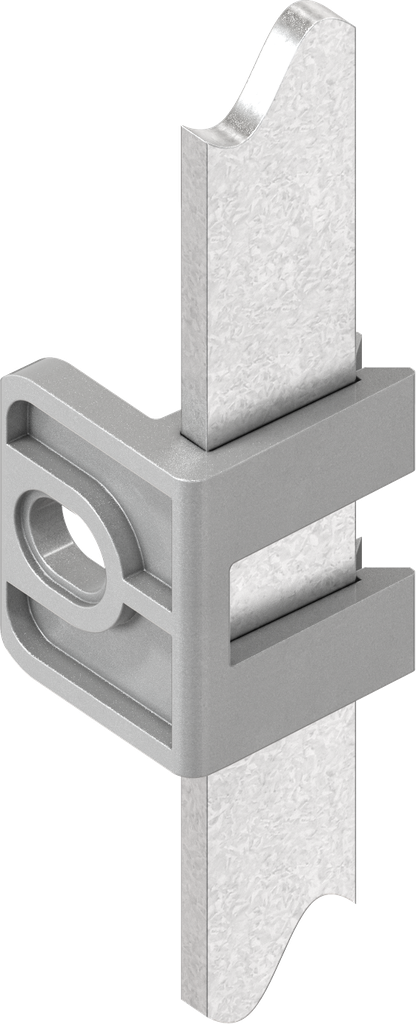

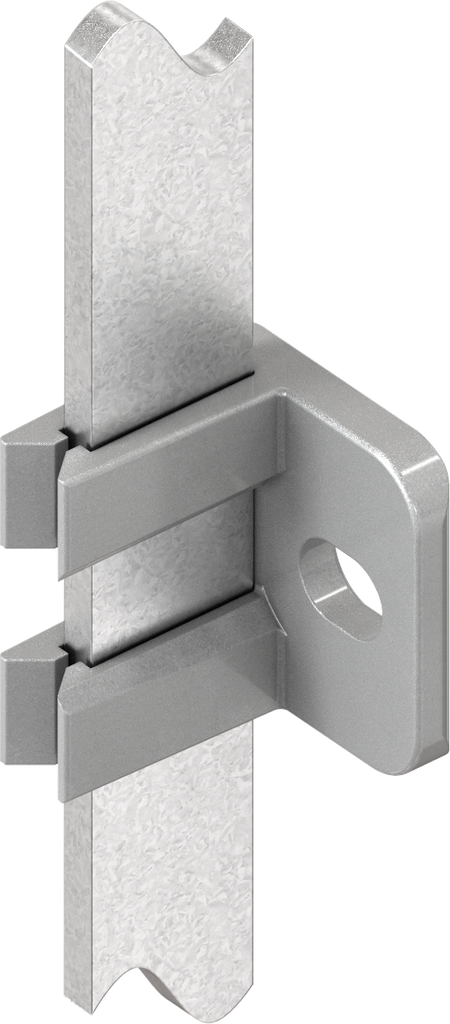

Flat rod will clip-in

    This combination does not exist.

    Contact Us
    Internal Reference: 1121-89-CX
    Product Type: Rod guide
    Material: Polyamide GF
    Program: 1121
    Surface: silver grey metallic
    Catalog sheet: 3ZC-120
    Fixing of rod guide: Weld stud M6 x 12
    For Flat Bars: 14 x 3
    Assembly: Pre-assembly of rod guide,Flat rod will clip-in
    No Specifications
    View All Products
    Rod
    Rod control
    Here you can find the product data sheets and CAD files of this product
    Main catalogue | 3ZC-120
    Product data sheet
