Flat rod with torsion, Steel zinc-plated
Flat rod with torsion, Steel zinc-plated
Rod guide for flat rod 14 x 3, clip-in, Polyamide GF silver grey metallic
Rod guide for flat rod 14 x 3, clip-in, Polyamide GF silver grey metallic

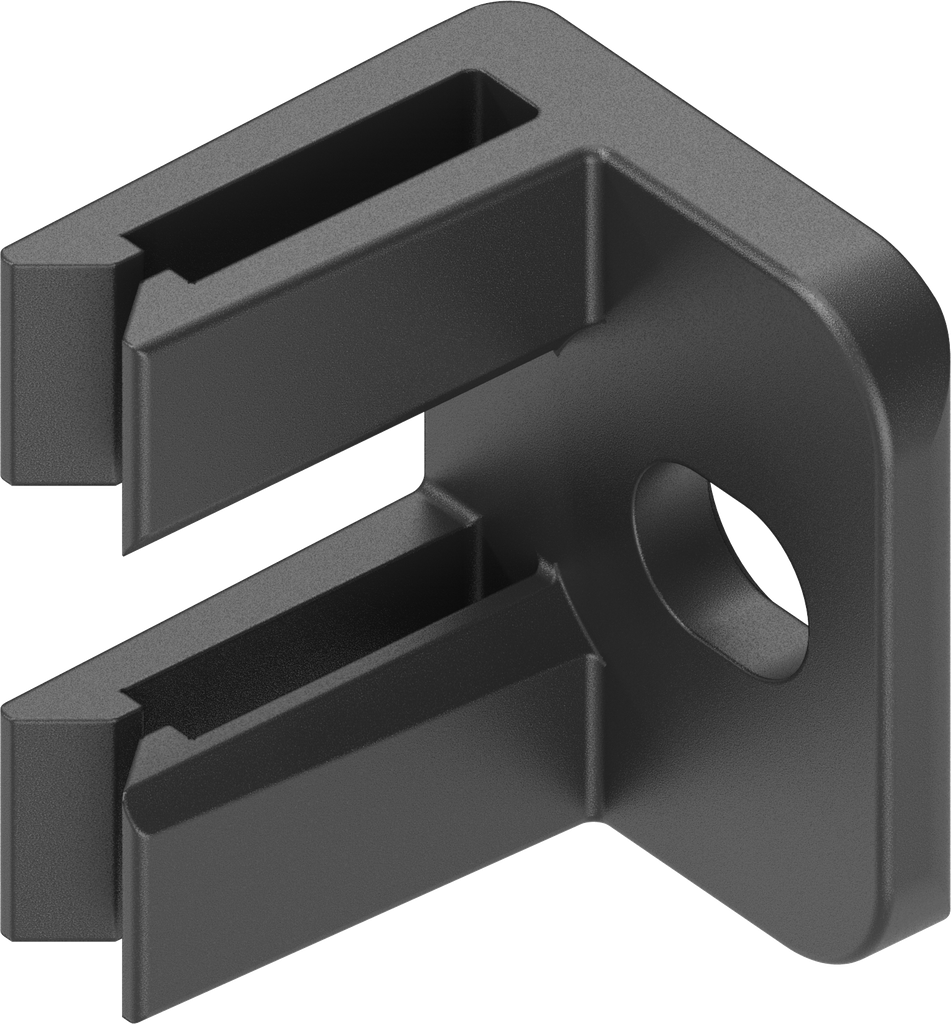

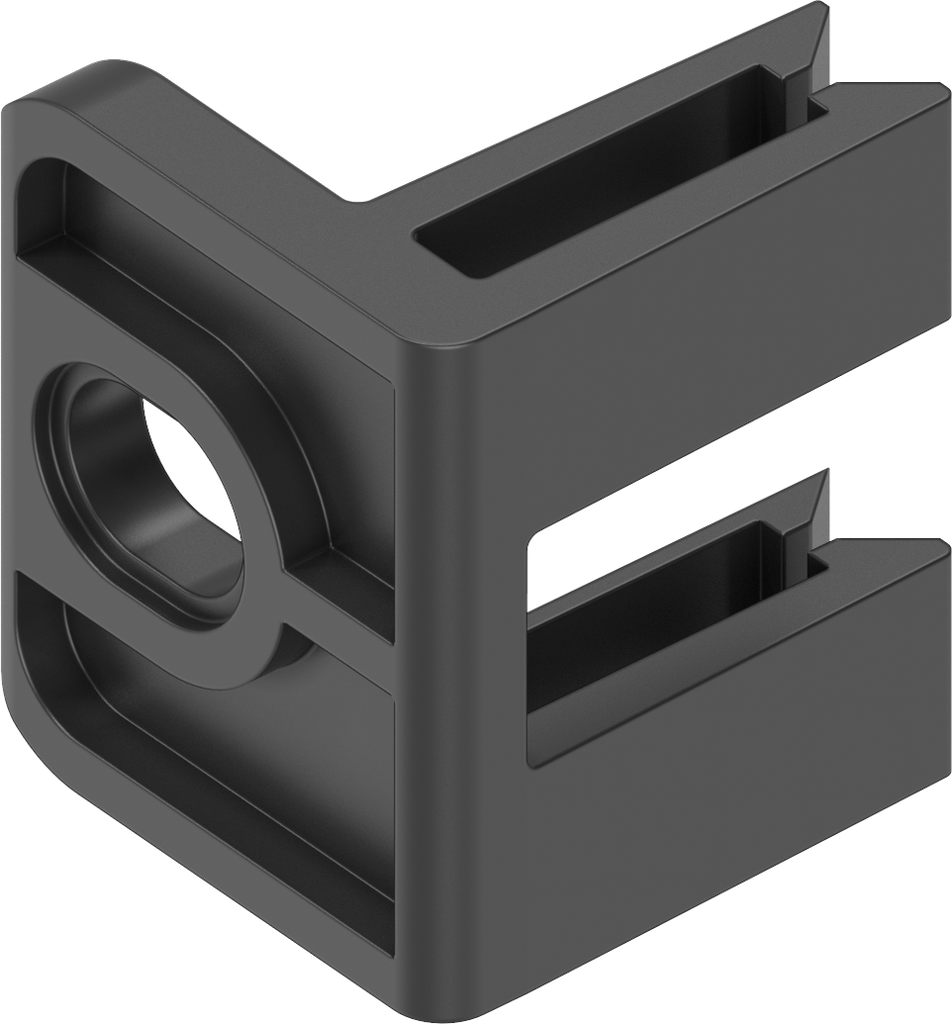

Rod guide for flat rod 14 x 3, clip-in, Polyamide GF V0 black; 1121-89

https://20241023-uat.emka.opaas.sh/products/1121-89 https://20241023-uat.emka.opaas.sh/web/image/product.template/64364/image_1920?unique=e48b6db

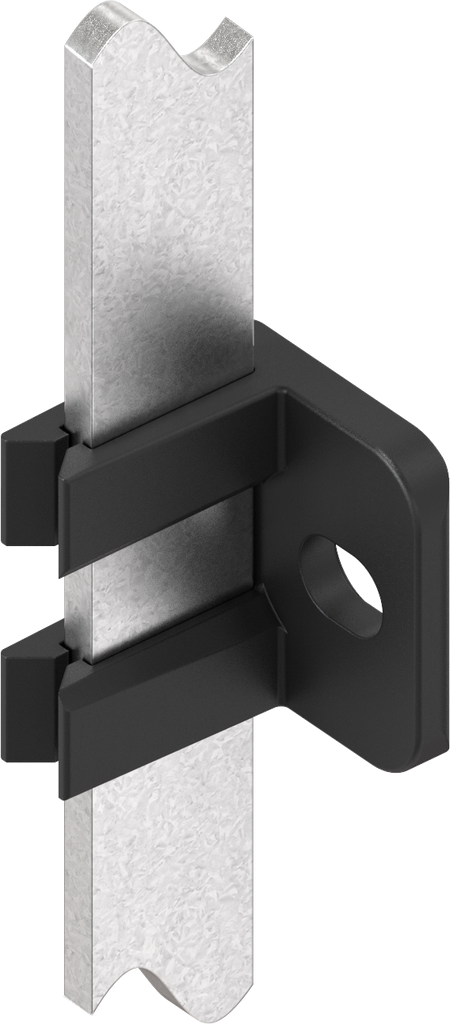

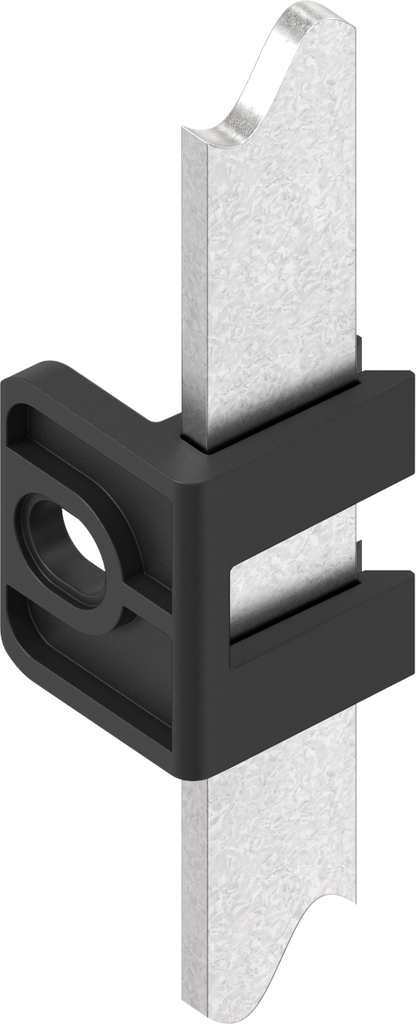

Flat rod will clip-in

    This combination does not exist.

    Contact Us
    Internal Reference: 1121-89
    Product Type: Rod guide
    Material: Polyamide GF V0
    Program: 1121
    Surface: black
    Catalog sheet: 3ZC-120
    Fixing of rod guide: Weld stud M6 x 12
    For Flat Bars: 14 x 3
    Assembly: Pre-assembly of rod guide,Flat rod will clip-in
    No Specifications
    View All Products
    Rod
    Rod control
    Here you can find the product data sheets and CAD files of this product
    Main catalogue | 3ZC-120
    Product data sheet
    CAD file | 1121-89_igs
    CAD file | 1121-89_stp
