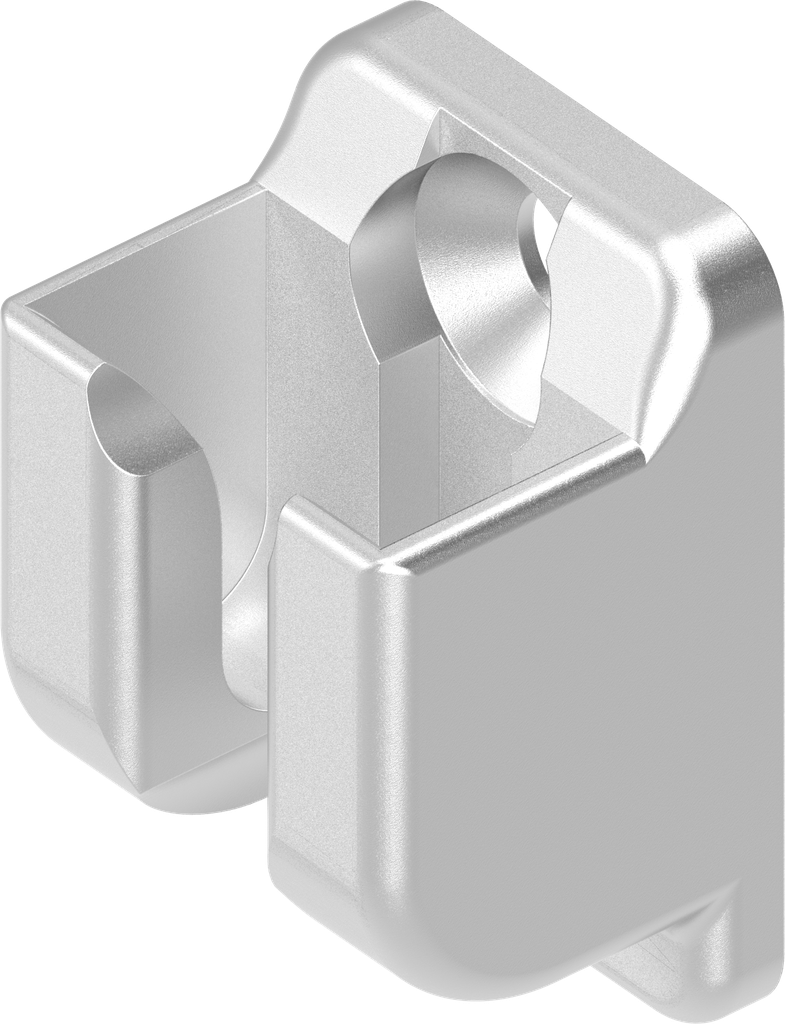

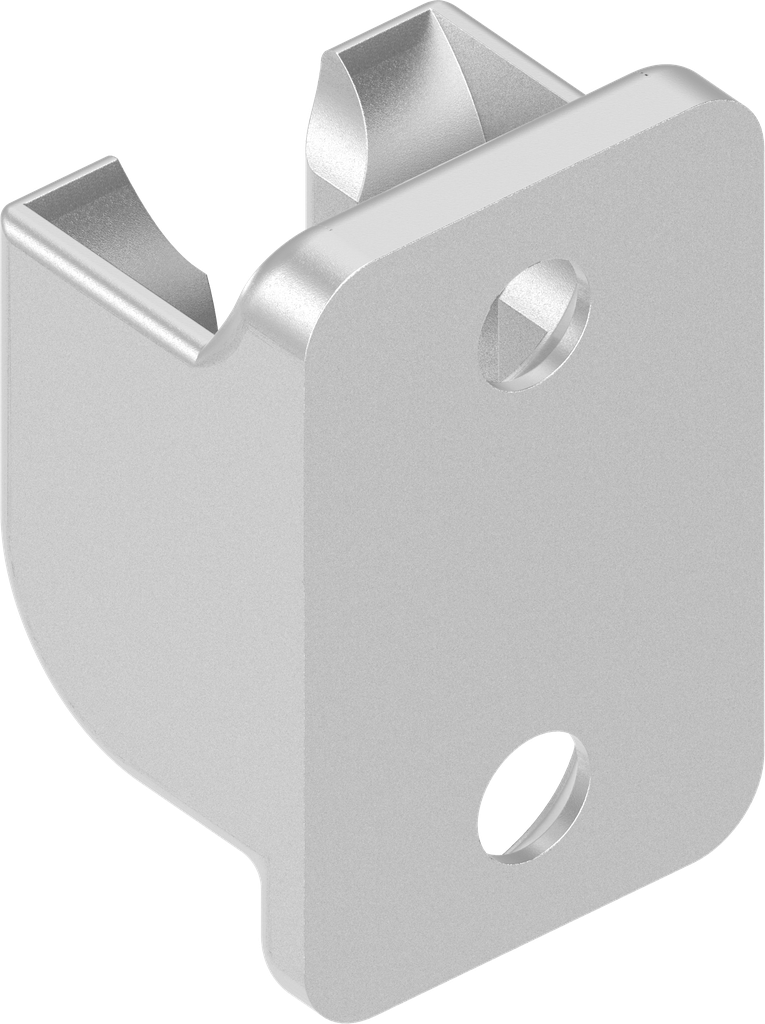

Catch for flat rod with double roller, Zinc die black powder-coated
Rod guide for flat rod 14 x 3, Polyamide V0 black
Product information:
Catch interchangeable with 120° hinge, catalogue page 4A-190, or 180° hinge, catalogue page 4A-210
Internal Reference:
1121-18-02PH
Product Type:
Catch
Material:
Stainless steel AISI 316
Program:
1121
Catalog sheet:
3ZA-1220
Type of fastening:
for countersunk screw M6
Mounting Positions :
Outside the sealing
Flat Bar Size:
Flat rod 14 x 3
Countersinking for standard countersunk screws:
Countersink for countersunk screw M6x... according to DIN ISO 2009, 2010, 7046-1, 7046-2, 7047
Locking system type:
Flat rod with double roller
No Specifications
View All Products
Here you can find the product data sheets and CAD files of this product
