Shaft unit E2, Zinc die and steel zinc-plated
180° Hinge, Stainless steel AISI 316
Product information:

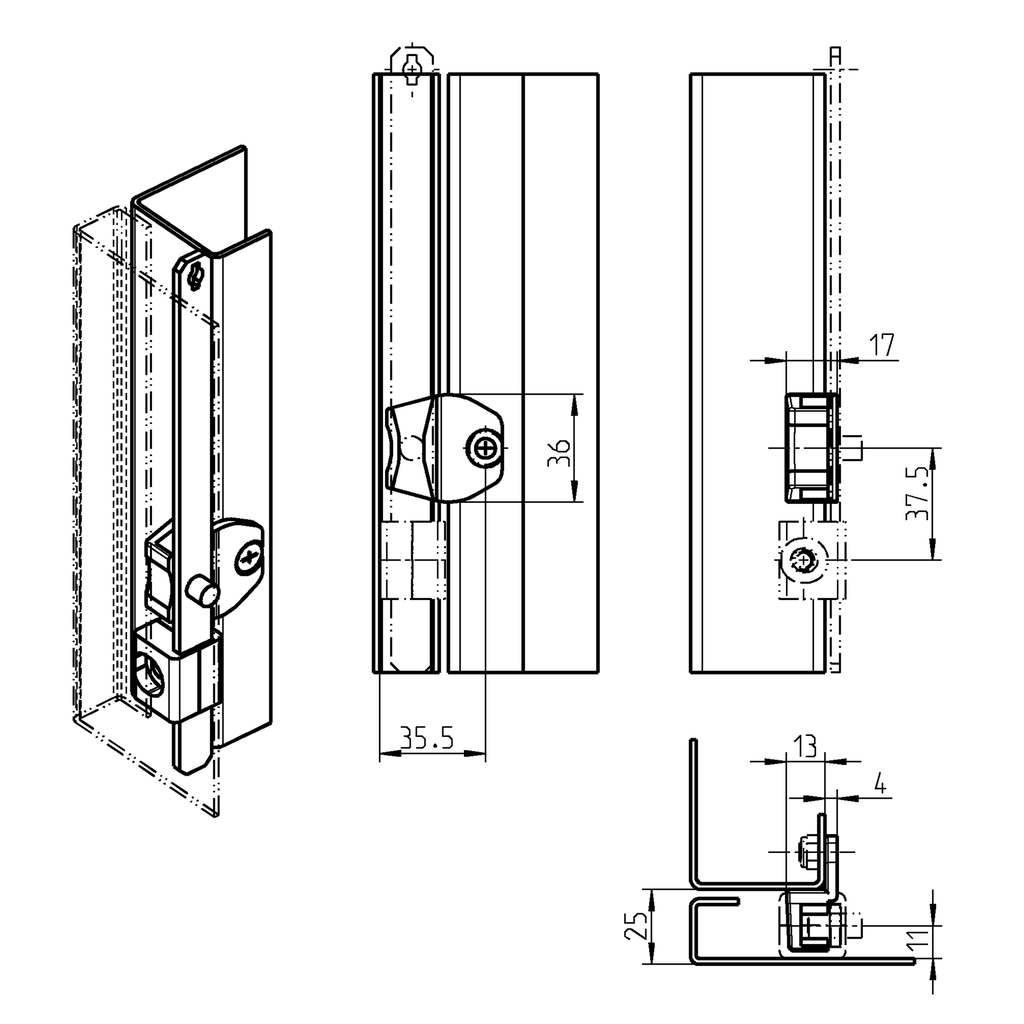

Lateral fixing at the frame inside the gasket

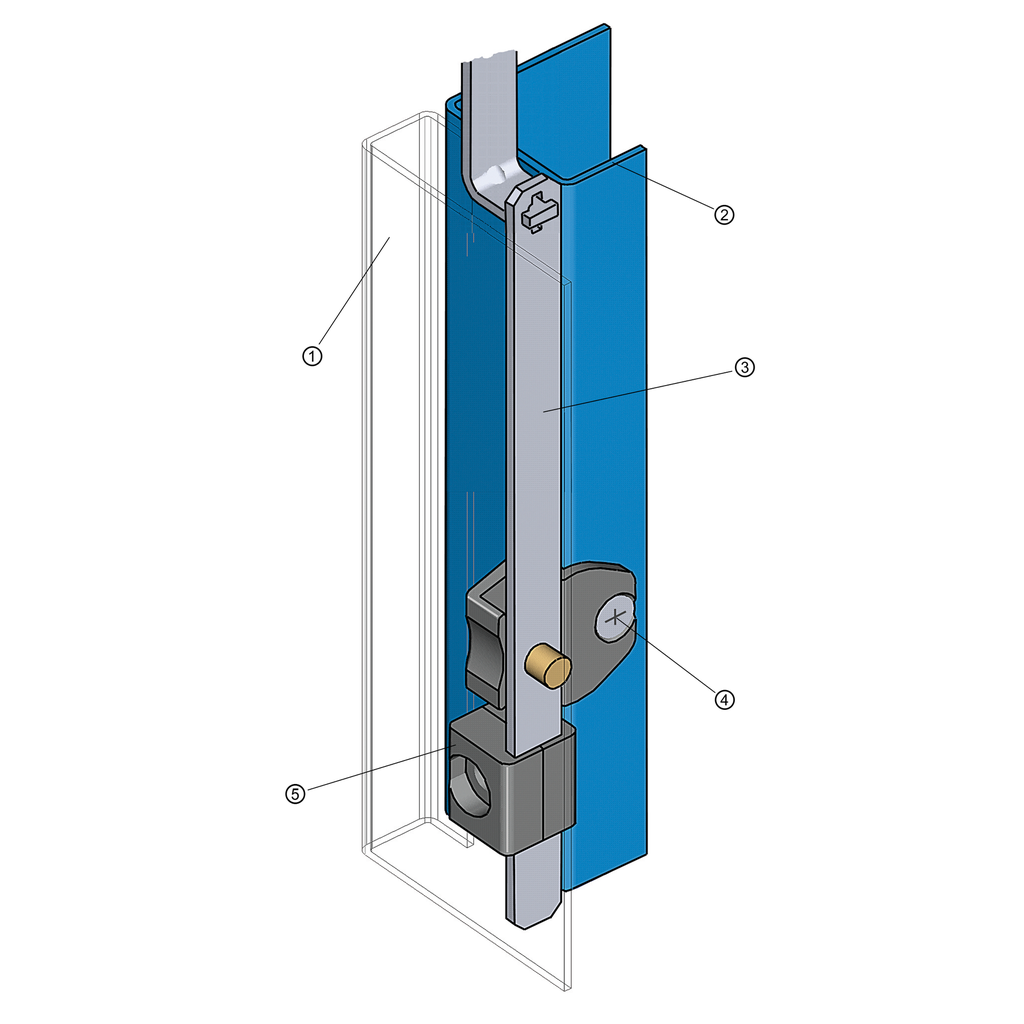

① = Door depicted transparent
② = Frame
③ = Rod (depicted below)
④ = Countersunk screw M6 (not included in delivery)
⑤ = Rod guide
Internal Reference:
1121-108-AA

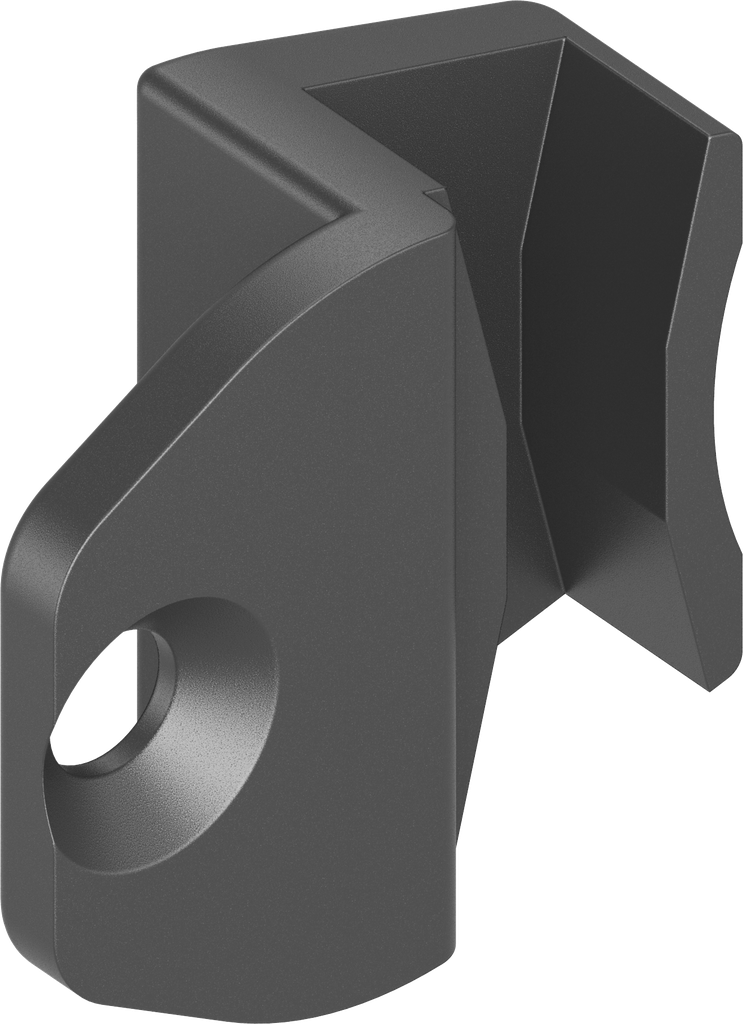

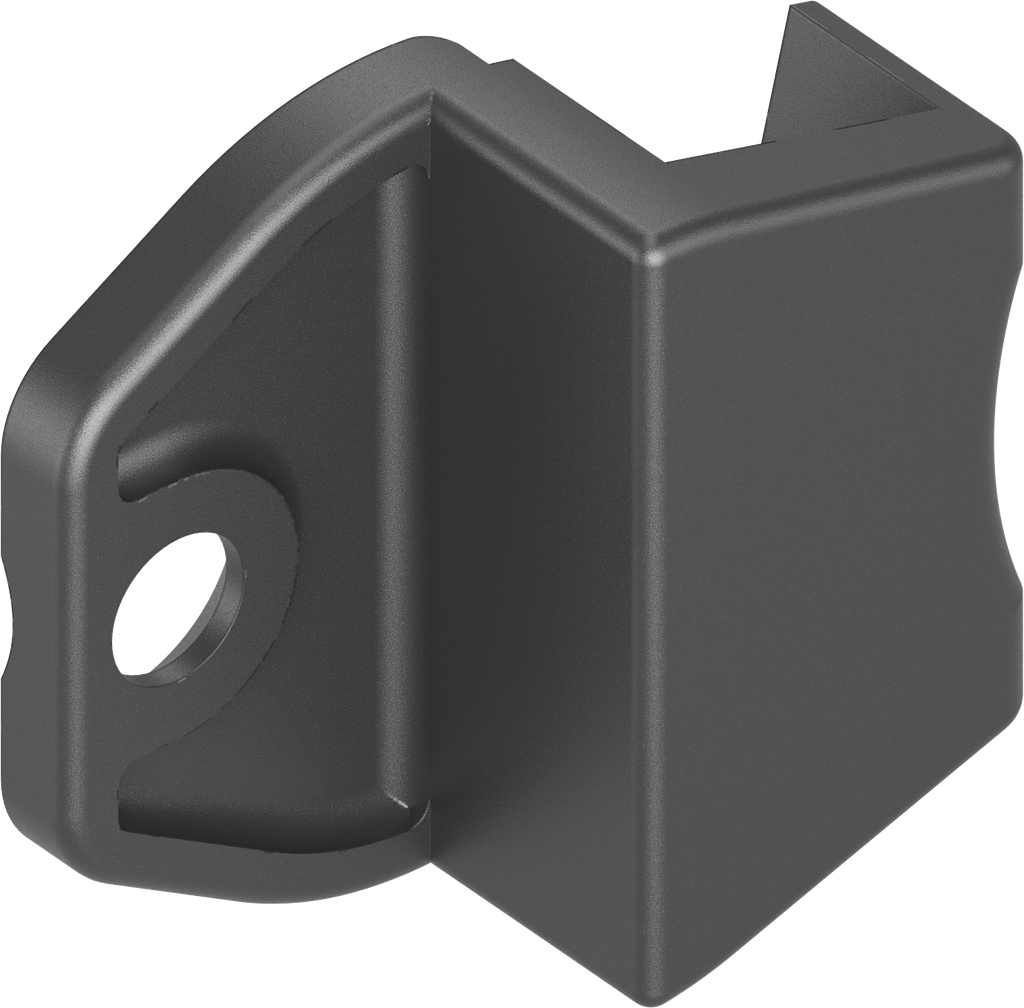

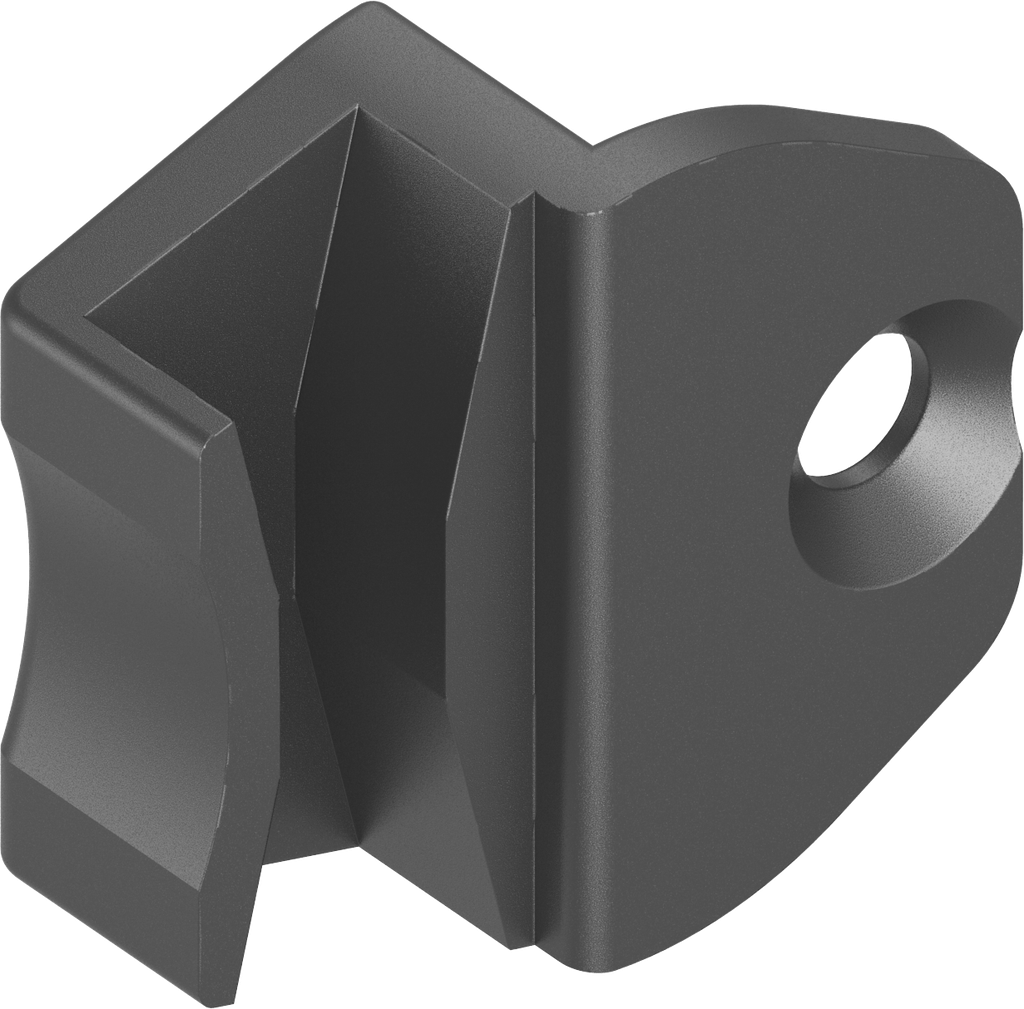

Product Type:
Catch
Material:
Zinc die
Program:
1121
Surface:
black powder-coated
Catalog sheet:
3ZA-1240
Type of fastening:
for countersunk screw M6
Mounting Positions :
Inside the sealing
Flat Bar Size:
Flat rod 14 x 3
Countersinking for standard countersunk screws:
Countersink for countersunk screw M6x... according to DIN ISO 2009, 2010, 7046-1, 7046-2, 7047
Locking system type:
Flat rod with double roller,Flat rod with single roller
No Specifications
