180° Hinge, Zinc die and steel black powder-coated

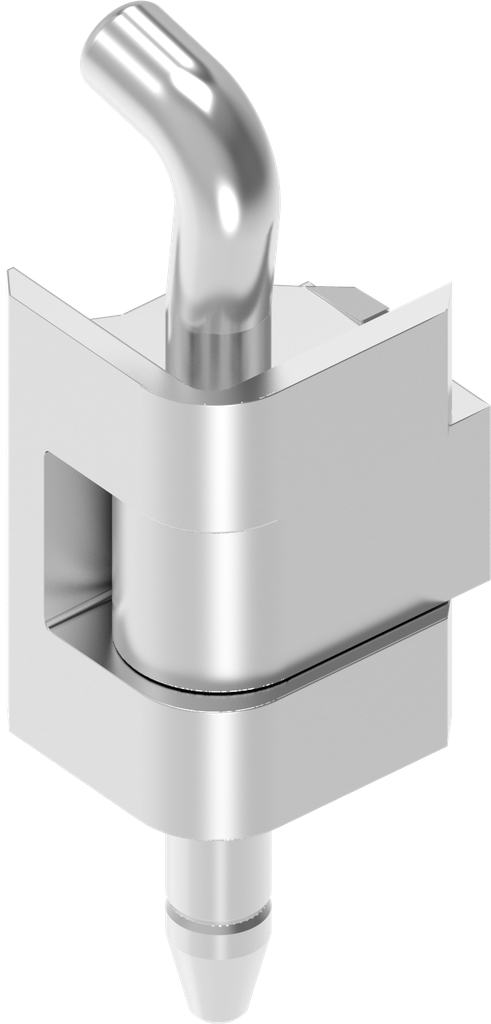

180° Hinge, Stainless steel AISI 316
180° Hinge, Stainless steel AISI 316; 1110-U50
100% original guarantee
Return within 30days
Free delivery on all orders
Internal Reference:
1110-U50
Barcode:
1110-U00050-0000000
Product Type:
Hinge
Program:
1110
Catalog sheet:
4A-150
Material of the module :
Stainless steel AISI 316
Dimension A, Variable:
20 mm
Type of attachment to the frame:
clamp-on / clip fix
Type of fastening on the door:
screw-on from inside, with female thread M6
Hole pattern required in the door:
Notch in the door
Max Opening Angle:
180°
Suitable for door thickness from:
1.50 mm
Suitable for door thicknesses up to:
2 mm
Cabinet type :
Single cabinets
Door position:
prominent
Door Version :
Left,Right
No Specifications
No Matching Products

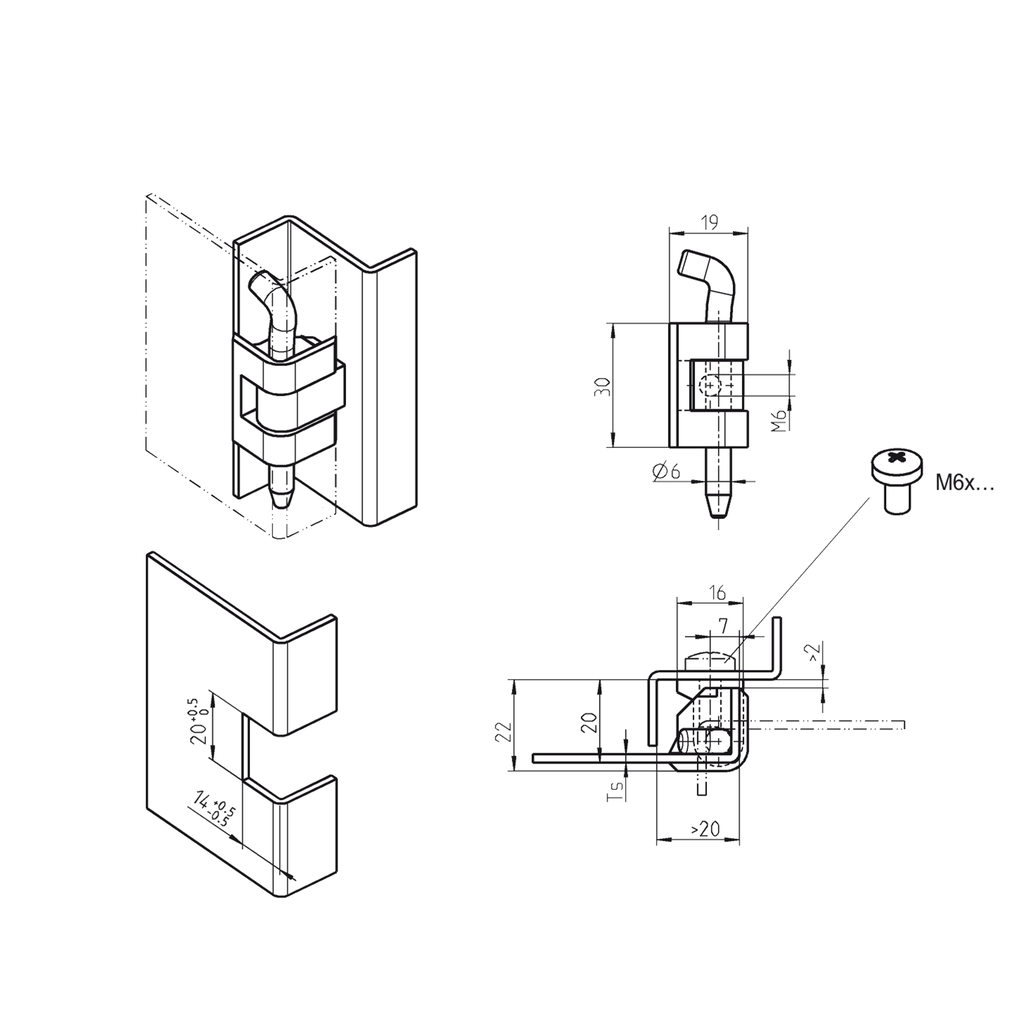

Here you can find the product data sheets and CAD files of this product
