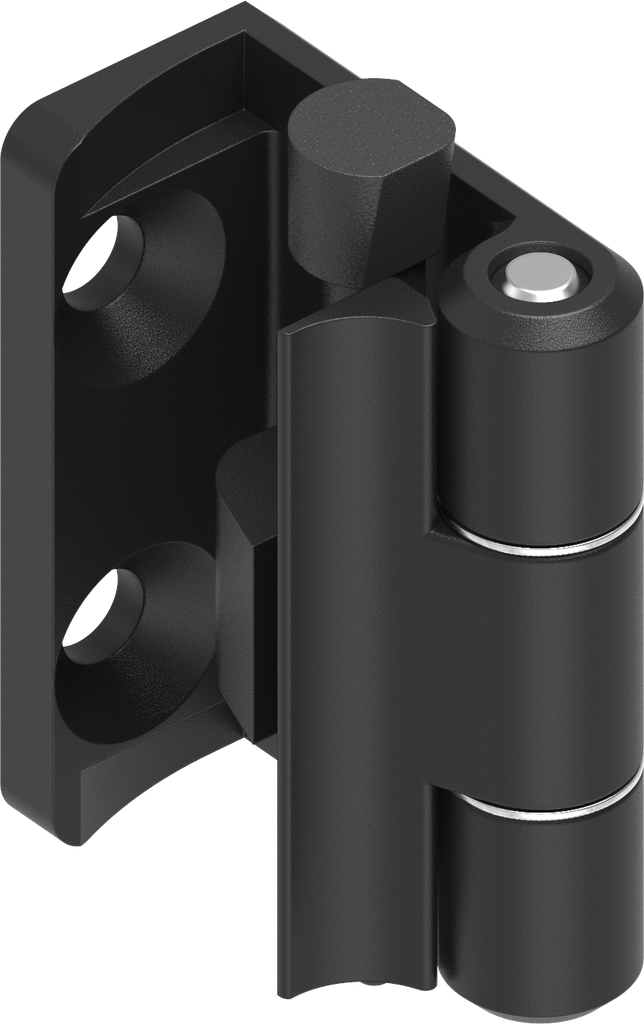

180° Hinge, Zinc die and polyamide black

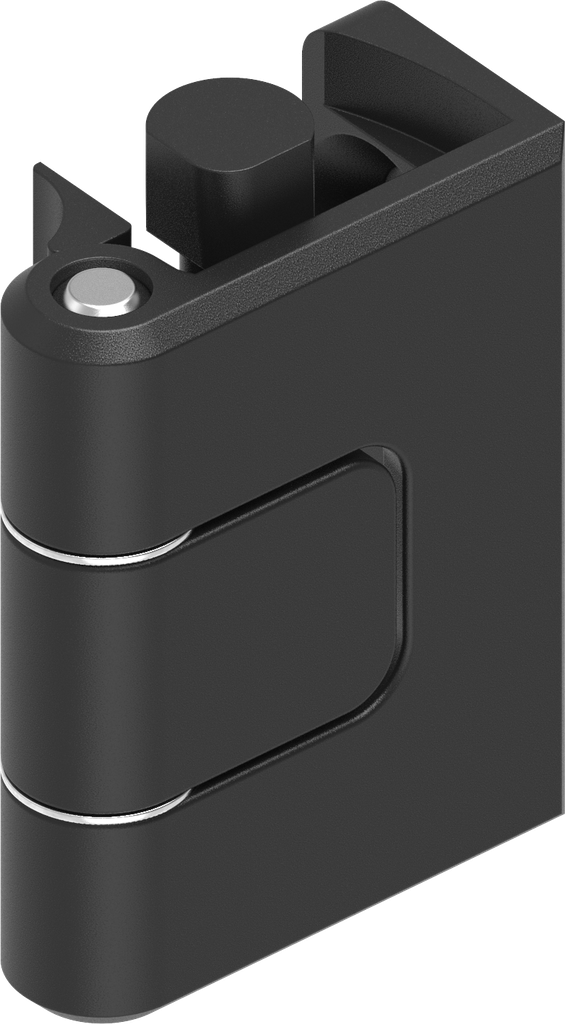

180° Hinge, Zinc die and steel black powder-coated
Assembly instruction:
Hinge is fixed by driving in the clamping pin.
Internal Reference:
1110-U140
Product Type:
Hinge
Program:
1110
Catalog sheet:
4A-139
Material of the module :
Zinc die
Surface of the module:
black powder-coated
Dimension A, Variable:
25 mm
Type of attachment to the frame:
clamp-on / clip fix
Type of fastening on the door:
screw-on from outside, for countersunk screw small head M6
Hole pattern required in the door:
Notch in the door
Max Opening Angle:
180°
Suitable for door thickness from:
1.20 mm
Suitable for door thicknesses up to:
2 mm
Cabinet type :
Single cabinets,In-line cabinets with single door,In-line cabinets with double door
Countersinking for standard countersunk screws:
Countersink for countersunk screw M6x... according to DIN ISO 2009, 2010, 7046-1, 7046-2, 7047
Door position:
prominent
Door Version :
Left,Right
Cannot be disassembled from the outside:
Yes
No Specifications
