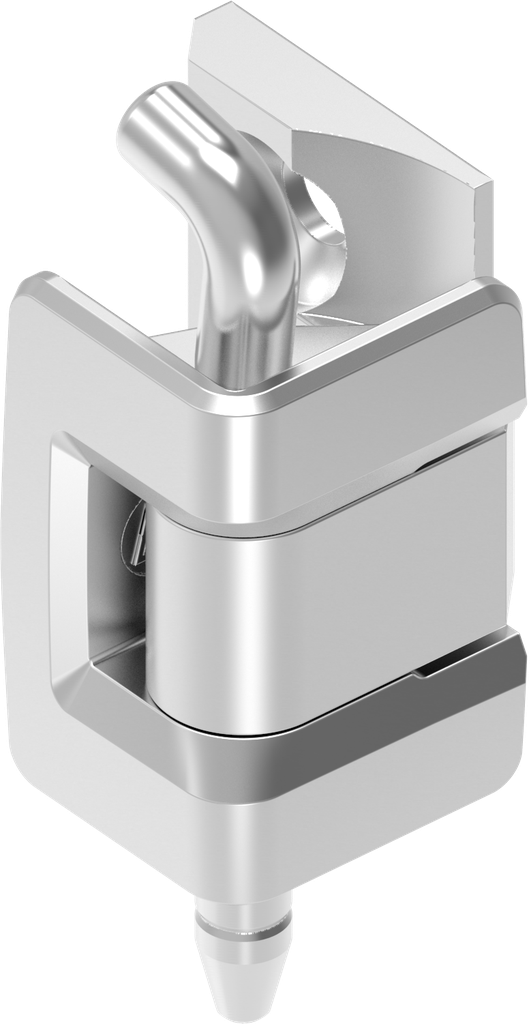

180° Hinge, Stainless steel AISI 316; 1110-U137

https://20241023-uat.emka.opaas.sh/products/1110-u137 https://20241023-uat.emka.opaas.sh/web/image/product.template/218947/image_1920?unique=0705b63

    This combination does not exist.

    Single cabinets Left Right
    Contact Us
    Internal Reference: 1110-U137
    Product Type: Hinge
    Program: 1110
    Catalog sheet: 4A-145
    Material of the module : Stainless steel AISI 316
    Dimension A, Variable: 25 mm
    Execution: B
    Type of attachment to the frame: clamp-on / clip fix
    Type of fastening on the door: screw-on from outside, for countersunk screw small head M6
    Hole pattern required in the door: Notch in the door
    Max Opening Angle: 180°
    Suitable for door thickness from: 1.50 mm
    Suitable for door thicknesses up to: 2 mm
    Cabinet type : Single cabinets
    Countersinking for standard countersunk screws: Countersink for countersunk screw M6x... according to DIN ISO 2009, 2010, 7046-1, 7046-2, 7047
    Door position: prominent
    Door Version : Left,Right
    No Specifications
    View All Products
    2D nut
    Here you can find the product data sheets and CAD files of this product
    Main catalogue | 4A-145
    Product data sheet
    CAD file | 1110-U137_igs
    CAD file | 1110-U137_stp
