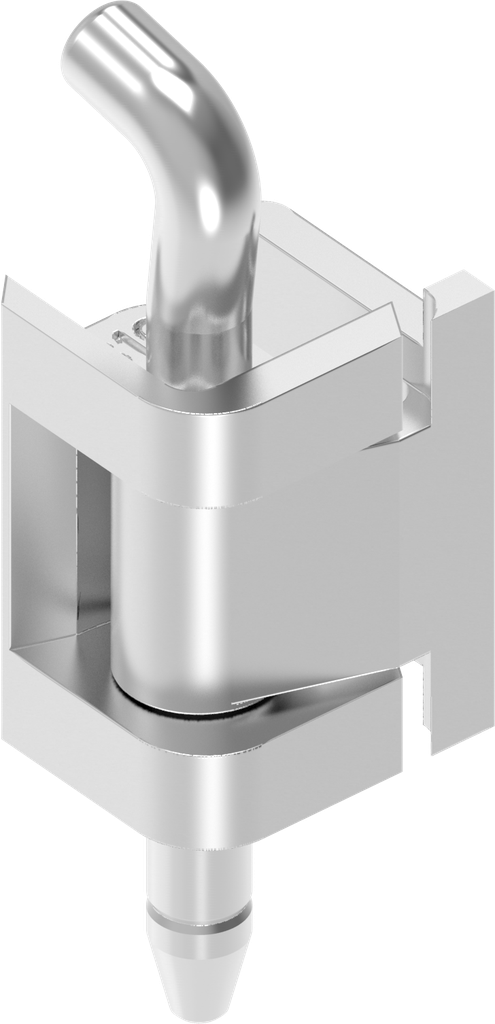

180° Hinge, Stainless steel AISI 316
180° Hinge, Zinc die and polyamide black
Product information:
Frame part with M6 thread and centring pin
For frame thickness 1.5:
Washer DIN ISO 7089 - 6 and
Hexagon head screw DIN ISO 4017 M6 x 6
Internal Reference:
1110-U132
Product Type:
Hinge
Program:
1110
Catalog sheet:
4A-160
Material of the module :
Stainless steel AISI 316
Dimension A, Variable:
20 mm
Type of attachment to the frame:
clamp-on / clip fix
Type of fastening on the door:
screw-on from inside, with female thread M6

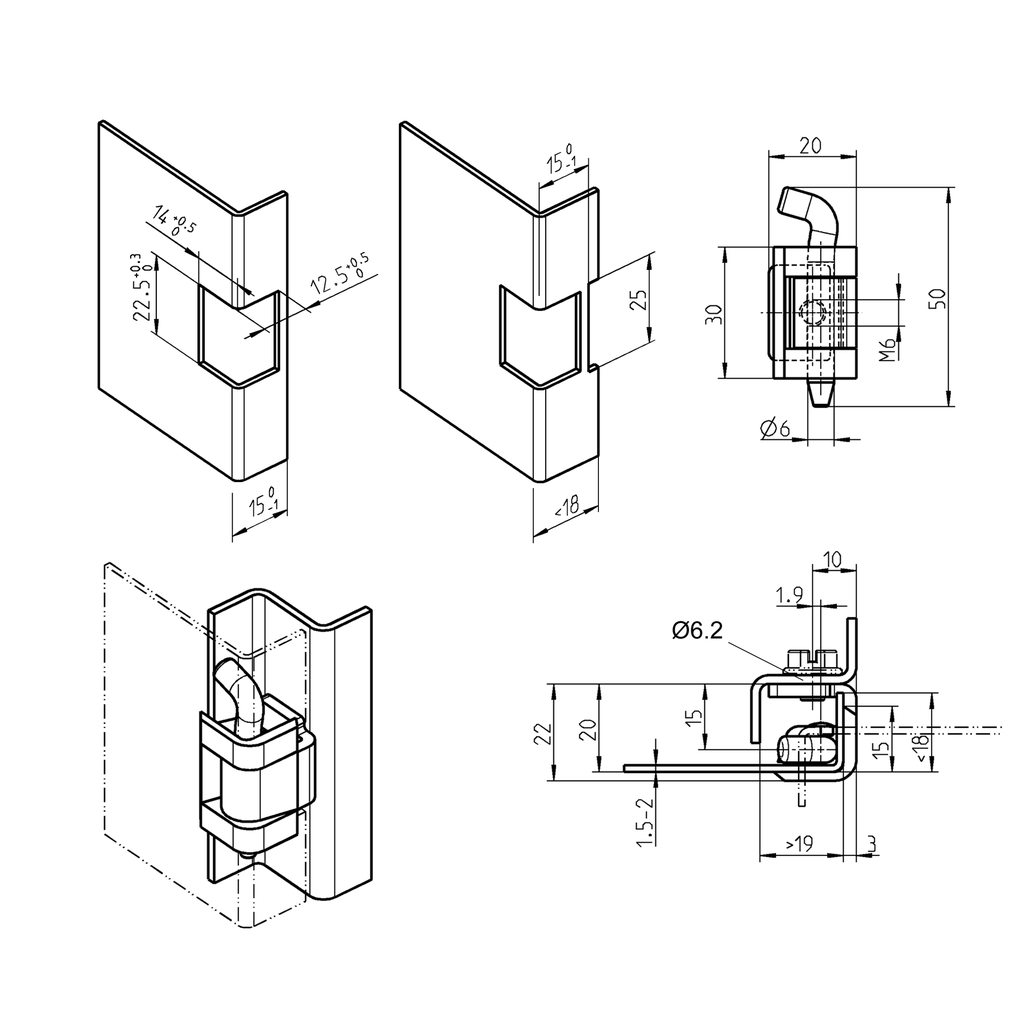

Hole pattern required in the door:
Notch in the door
Max Opening Angle:
180°
Cabinet type :
Single cabinets
Door position:
prominent
Door Version :
Left,Right
Door thickness:
2 mm
No Specifications
No Matching Products
Here you can find the product data sheets and CAD files of this product
