180° Hinge, Polyamide GF black

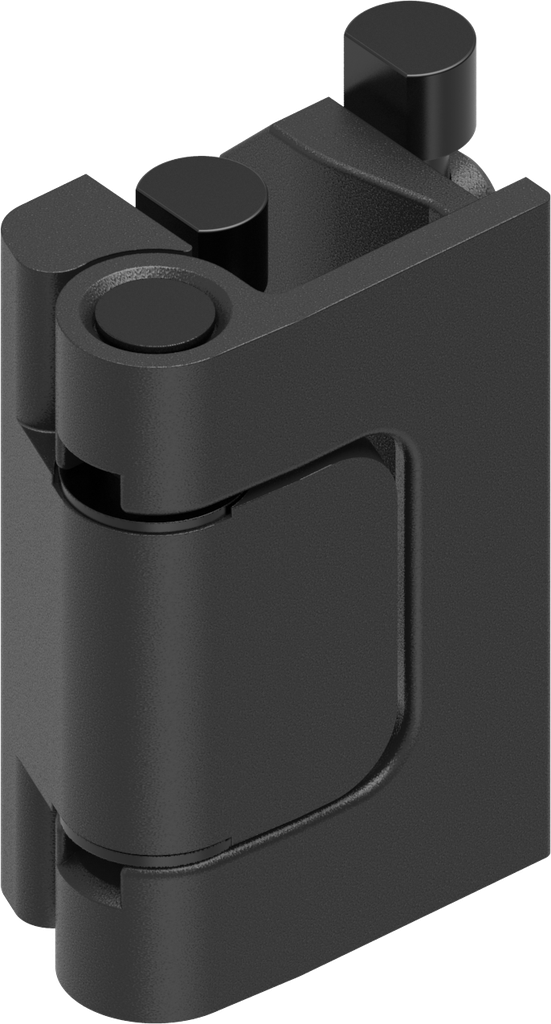

180° Hinge, Zinc die black powder-coated
Product information:
Can be lifted off at 90° opening angle
Internal Reference:
1110-U126
Product Type:
Hinge
Program:
1110
Catalog sheet:
4A-215
Material of the module :
Zinc die
Surface of the module:
black powder-coated
Dimension A, Variable:
25 mm
Article with property rights:
Yes
Execution:
C+D
Detachable:
with tools, for 90° opening angle
Type of attachment to the frame:
clamp-on / clip fix
Type of fastening on the door:
clamp-on / clip fix
Hole pattern required in the door:
Bore holes in the door
Max Opening Angle:
180°
Cabinet type :
Single cabinets,In-line cabinets with single door
Door position:
prominent
Door Version :
Left,Right
Door thickness:
2 mm
No Specifications
