3-point cam, Steel zinc-plated
3-point cam, Steel zinc-plated

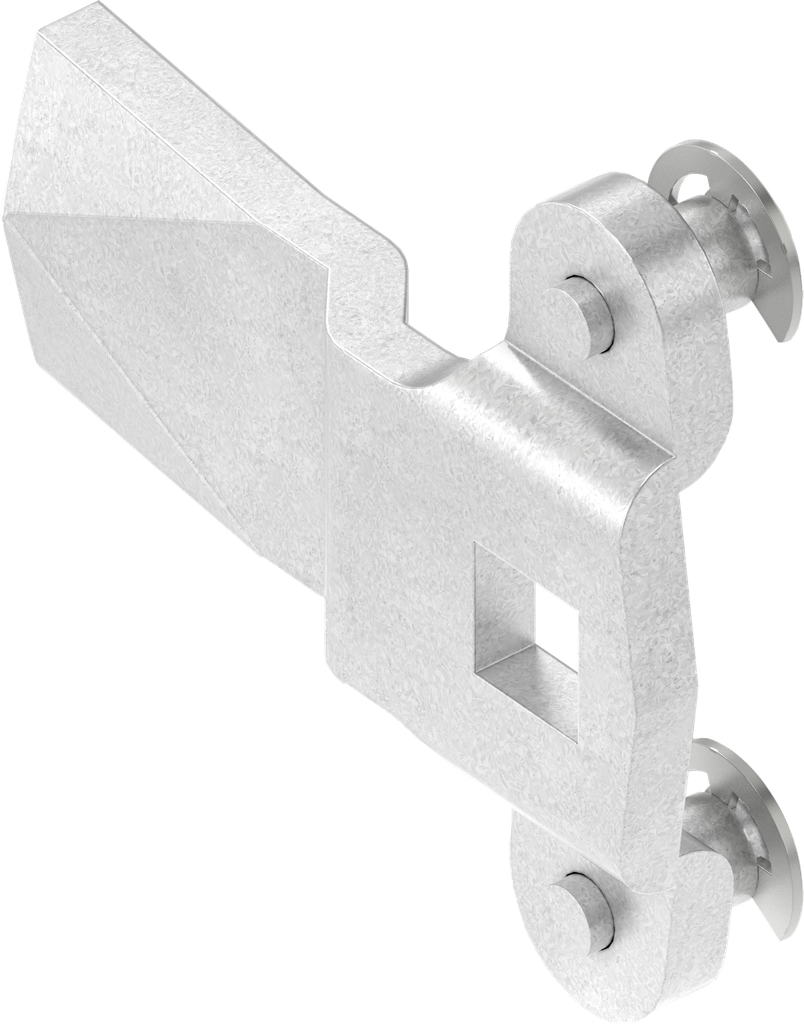

3-point cam, Steel zinc-plated; 1107-U5

https://20241023-uat.emka.opaas.sh/products/1107-u5 https://20241023-uat.emka.opaas.sh/web/image/product.template/62423/image_1920?unique=3e91cc4

Offset h = 4 mm

    This combination does not exist.

    Inside the sealing
    Contact Us
    Internal Reference: 1107-U5
    Product Type: Cam
    Program: 1107
    Catalog sheet: 3YC-120
    Material of the module : Steel
    Surface of the module: zinc-plated
    Number of Possible Locking Points: 3 point
    Mounting Positions : Inside the sealing
    Stroke of the drive: Stroke 18 mm
    Compression Value : 3 mm
    Offset: positive
    offset of cam: 4 mm
    Dimension L: 45 mm
    Spoon: Yes
    No Specifications
    View All Products
    Housing
    Rod
    Ramp
    Quarter turn
    Adapter for round rod
    Bearing bush
    Fixing material for swinghandle
    Adapter
    Here you can find the product data sheets and CAD files of this product
    Main catalogue | 3YB-420
    Product data sheet
    CAD file | 1107-U5_igs
    CAD file | 1107-U5_stp
