L-handle non-keyed, Zinc die chrome-plated
L-handle non-keyed, Zinc die chrome-plated
L-handle keyed EK 333, Zinc die chrome-plated
L-handle keyed EK 333, Zinc die chrome-plated

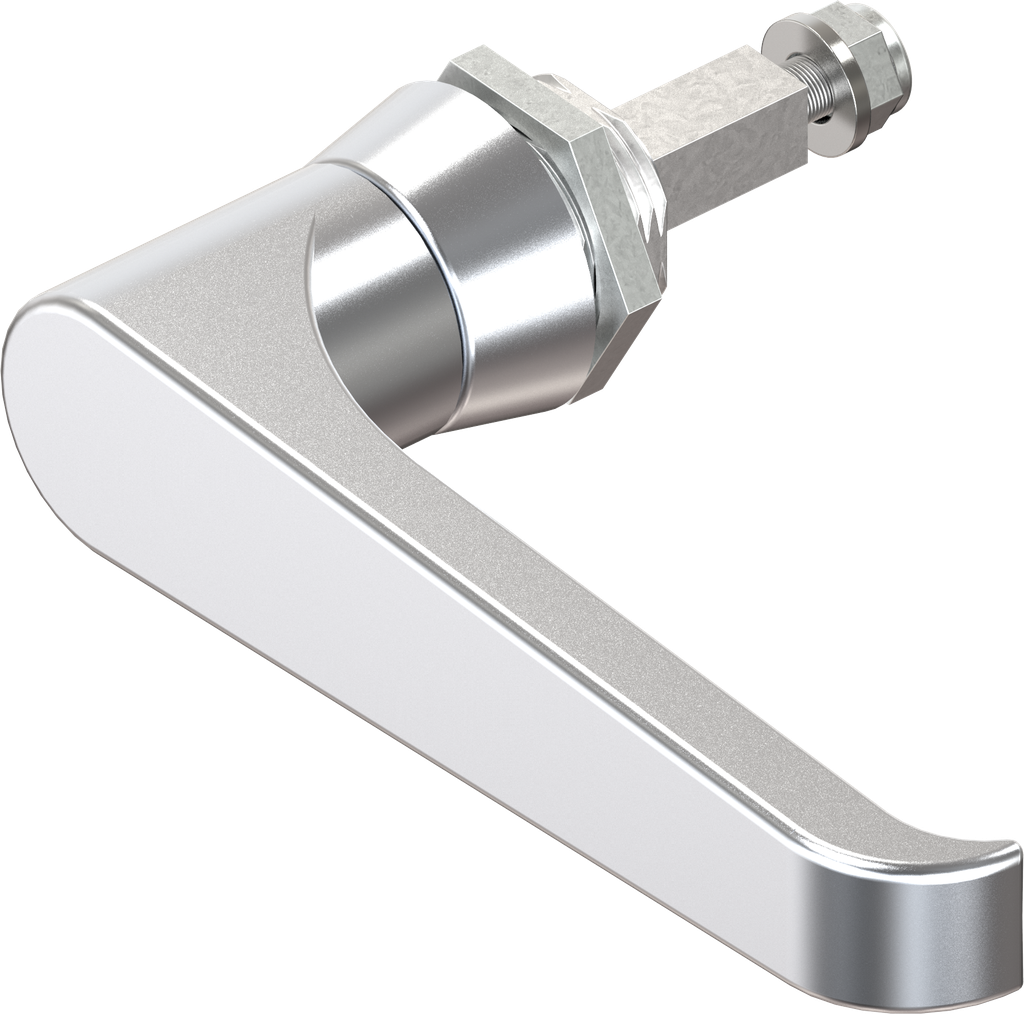

L-handle non-keyed, Zinc die chrome-plated; 1103-U2

https://20241023-uat.emka.opaas.sh/products/1103-u2 https://20241023-uat.emka.opaas.sh/web/image/product.template/62324/image_1920?unique=9881947

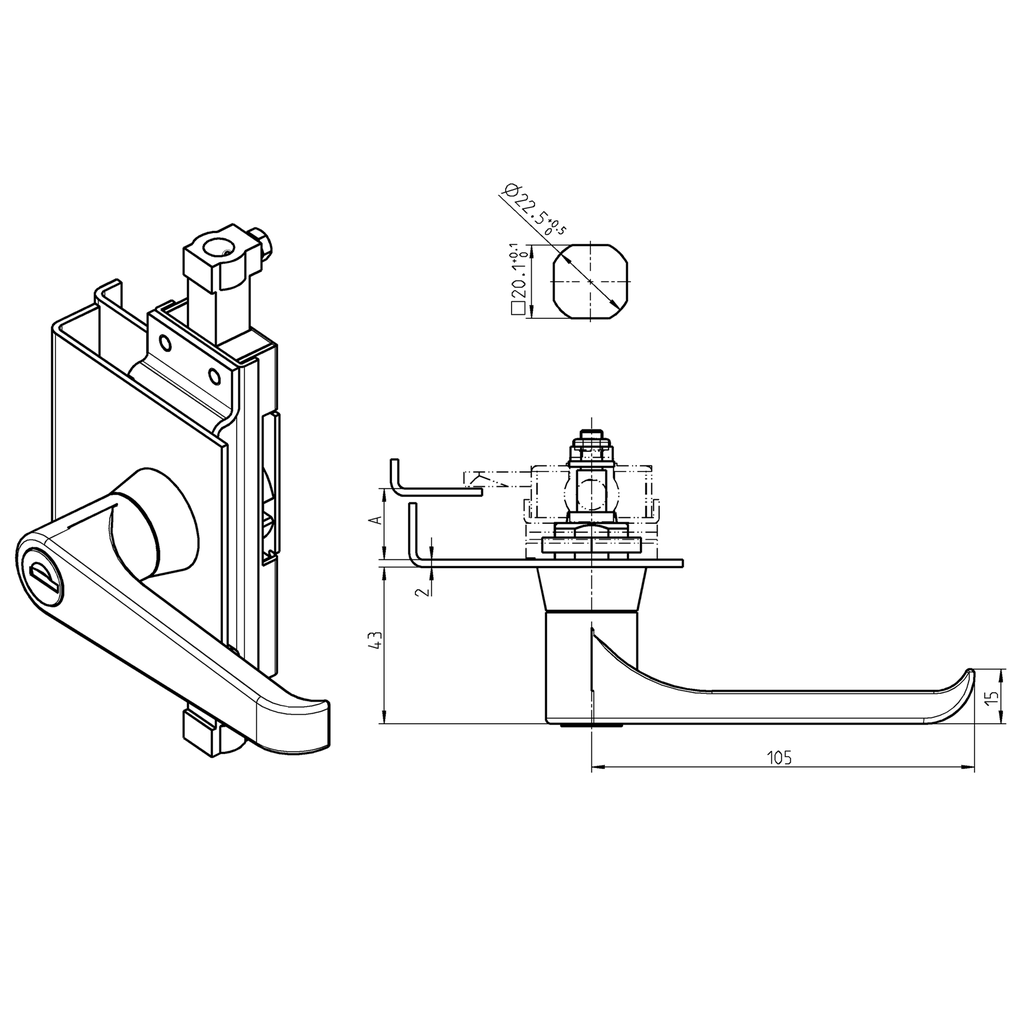

for screw-on version, A = 26 mm

    This combination does not exist.

    Protection class IP 65 Left Right
    Contact Us
    Internal Reference: 1103-U2
    Product Type: Quarter turn
    Program: 1103
    Catalog sheet: 2A-140
    Material of the module : Zinc die
    Surface of the module: chrome-plated
    Dimention A: A 26
    Fixing type of housing : nut fixing
    Housing Head Shape: Round
    Handle Art: L-handle
    Locking set: No locking set, blind
    Door Version : Left,Right
    Door thickness is or up to: 2
    Locking components: Rod control for heavy duty
    No Specifications
    View All Products
    Quarter turn accessories
    Rod control accessories
    Adapter
    Accessories general
    Rod control
    Here you can find the product data sheets and CAD files of this product
    Main catalogue | 2A-140
    Product data sheet
    CAD file | 1103-U2_igs
    CAD file | 1103-U2_stp
