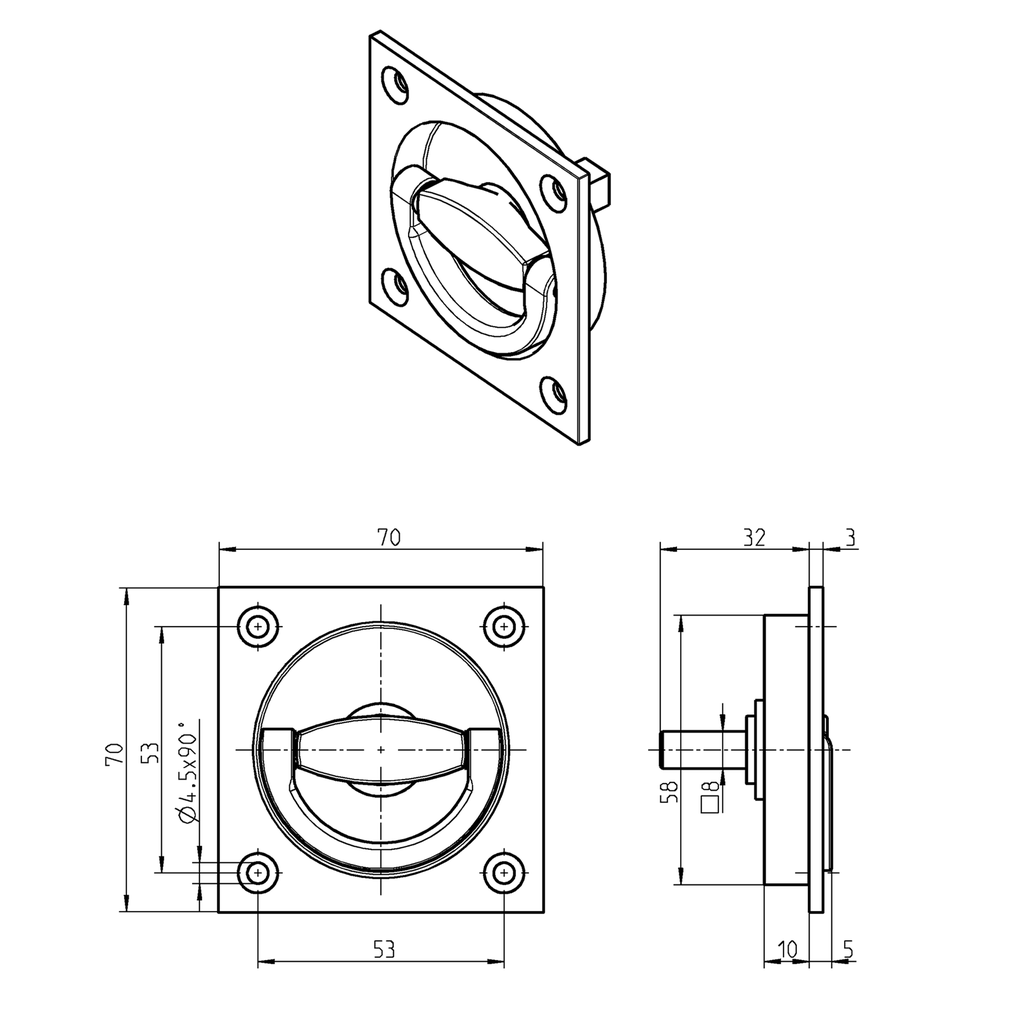

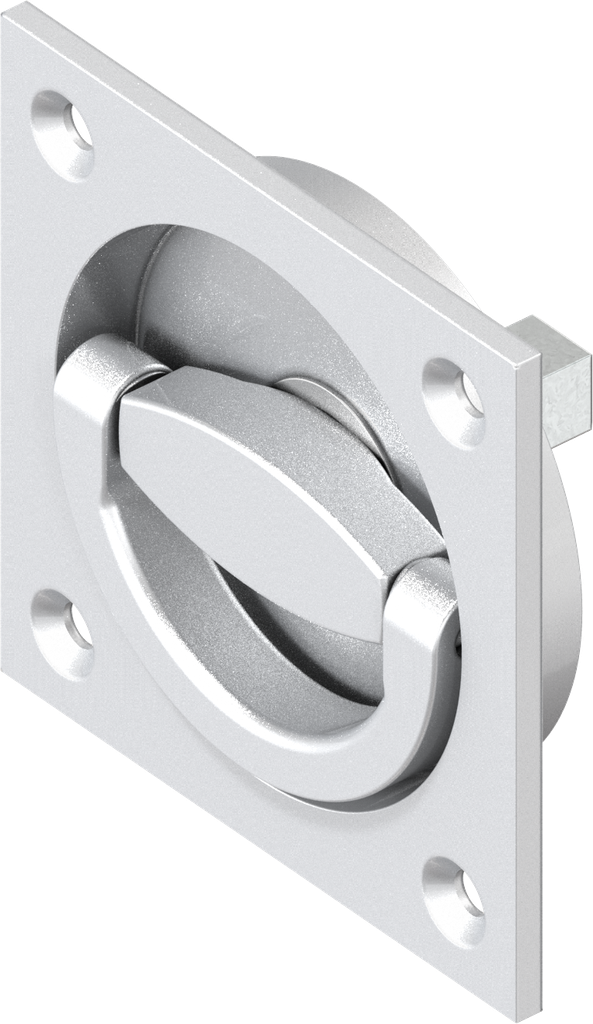

Ring-handle insert, Zinc die silver powder-coated; 1098-U1

https://20241023-uat.emka.opaas.sh/products/1098-u1 https://20241023-uat.emka.opaas.sh/web/image/product.template/62311/image_1920?unique=e14b336

for weld-on versionm A = 20 mm and 26 mm

    This combination does not exist.

    Left Right
    Contact Us

    Product information:

    The ring-handle insert is for countersunk screw small head M4 acc. to DIN ISO 2009, 2010, 7046-1, 7046-2, 7047
    Internal Reference: 1098-U1
    Product Type: Quarter turn
    Program: 1098
    Catalog sheet: 2B-190
    Material of the module : Zinc die
    Surface of the module: silver powder-coated
    Dimention A: A 20,A 26
    Housing Head Shape: Square
    Handle Art: Ring handle
    Locking set: No locking set, blind
    Door Version : Left,Right
    No Specifications
    View All Products
    Rod control accessories
    Rod control
    Here you can find the product data sheets and CAD files of this product
    Main catalogue | 2B-190
    Product data sheet
    CAD file | 1098-U1_igs
    CAD file | 1098-U1_stp
