Bow-type handle, Stainless steel AISI 316L
Machine handle, Aluminium black

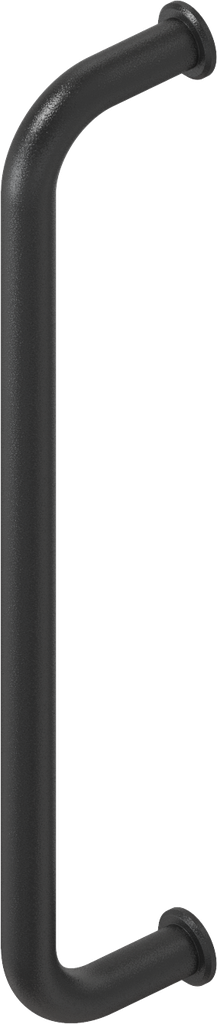

Bow-type handle, Steel black plastic-coated; 1095-U35-200RA

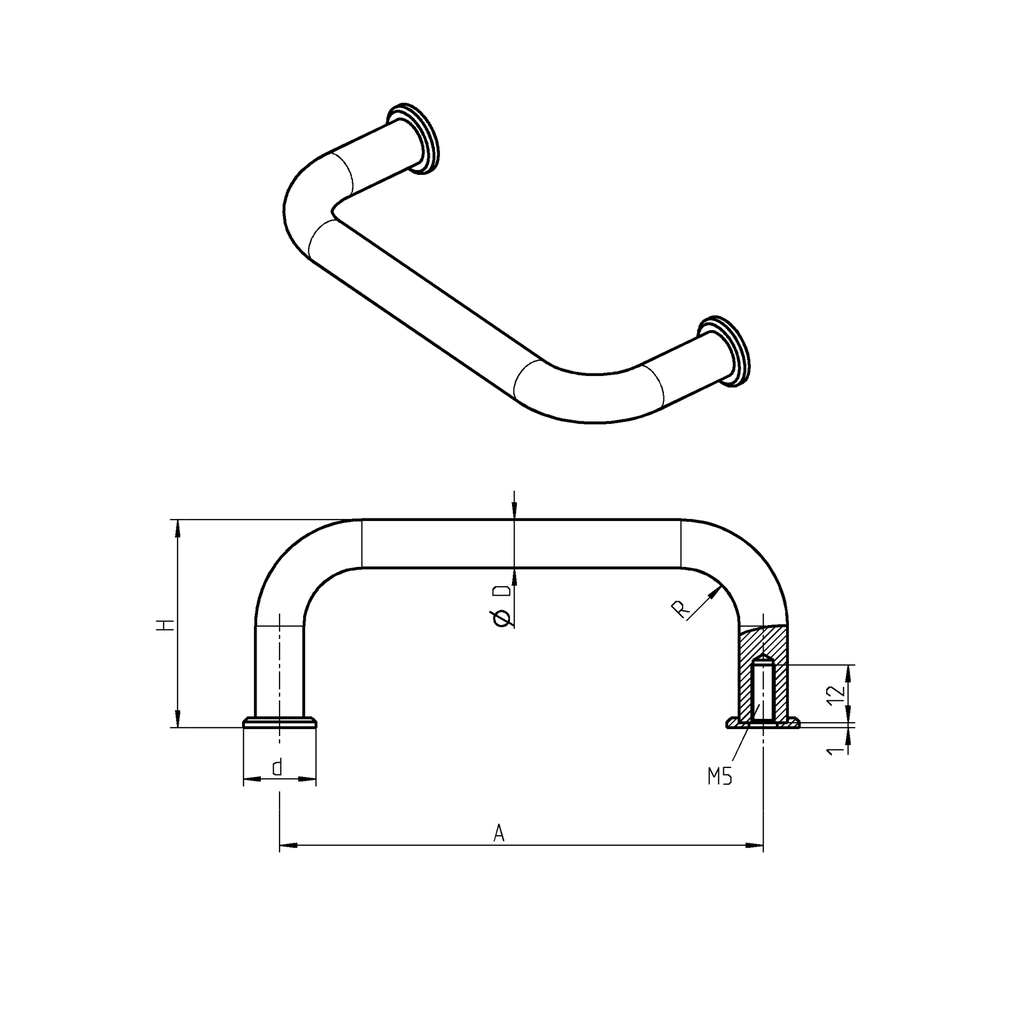

A = 200 mm
100% original guarantee
Return within 30days
Free delivery on all orders
Internal Reference:
1095-U35-200RA
Barcode:
1095-u00035-00200ra
Product Type:
Handle
Material:
Steel
Program:
1095
Surface:
black plastic-coated
Catalog sheet:
6A-190
Dimension A:
200 mm
Fixing type of handle:
screw-on from inside
Dimension d:
15 mm
Dimension D:
10 mm
Handle Art(2):
Fixed handle, tube handle, bow-type handle and machine handle
Dimension H:
43 mm
Dimension R:
12 mm
No Specifications
No Matching Products
Here you can find the product data sheets and CAD files of this product
