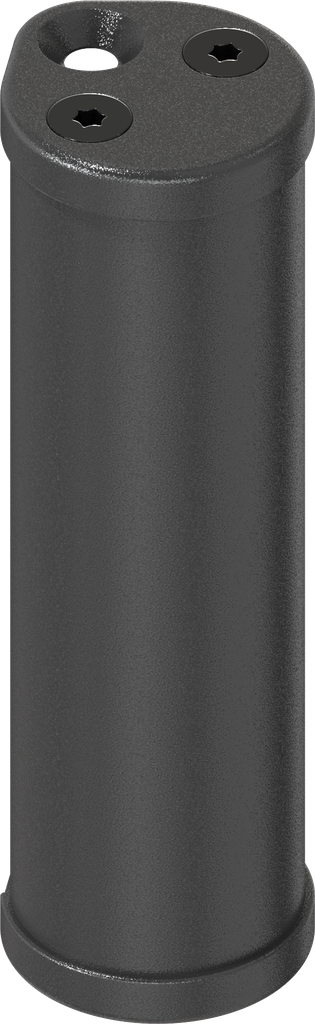

Edge handle, Aluminium black; 1095-U33-100AA

https://20241023-uat.emka.opaas.sh/products/1095-u33-100aa https://20241023-uat.emka.opaas.sh/web/image/product.template/215463/image_1920?unique=f86255a

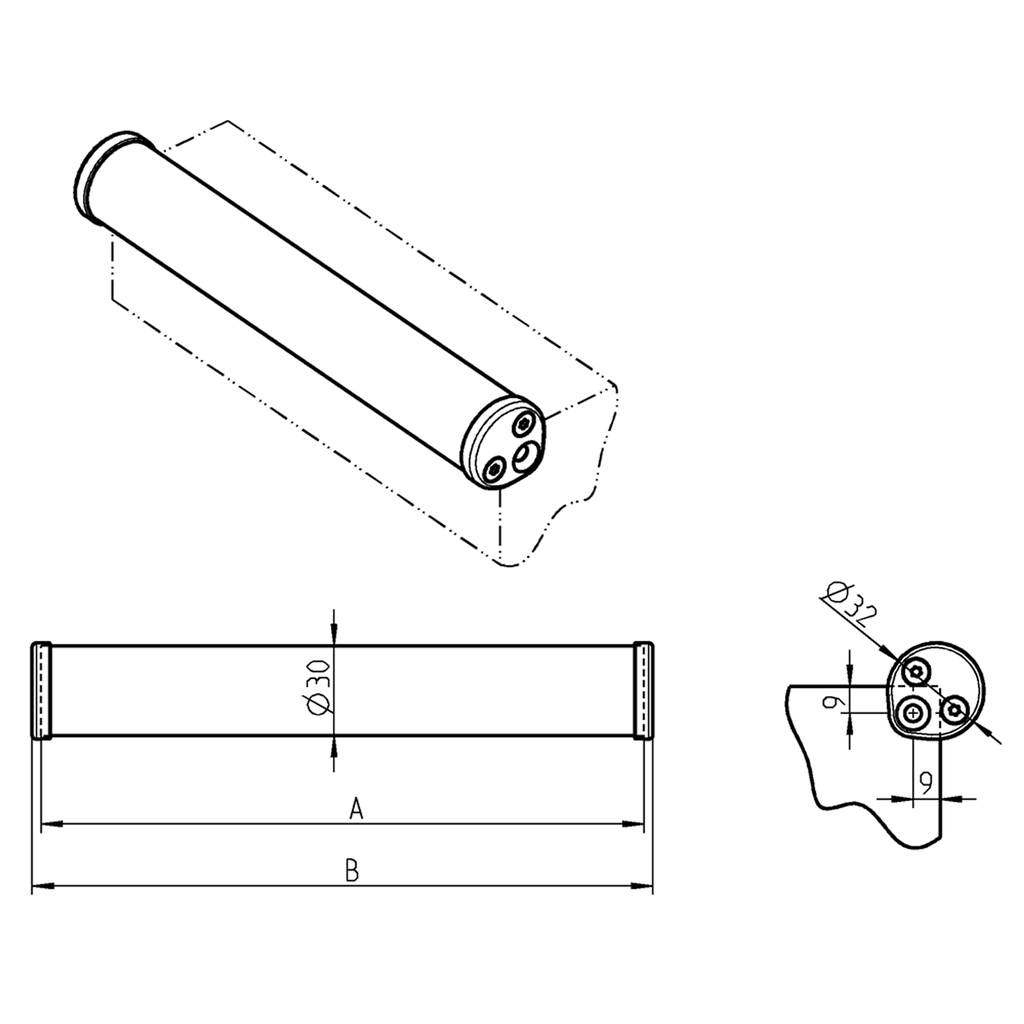

A = 100 mm

    This combination does not exist.

    Contact Us

    Akeneo Note:

    Fixing material is not included in scope of delivery.
    Internal Reference: 1095-U33-100AA
    Product Type: Handle
    Program: 1095
    Catalog sheet: 6A-420
    Material of the module : Aluminium
    Surface of the module: black
    Dimension A: 100 mm
    Dimension B: 106 mm
    Fixing type of handle: screw-on from outside
    Handle Art(2): Case-handle
    Countersinking for standard countersunk screws: Countersink for countersunk screw M5x... according to DIN ISO 2009, 2010, 7046-1, 7046-2, 7047
    No Specifications
    No Matching Products
    Here you can find the product data sheets and CAD files of this product
    Main catalogue | 6A-420
    CAD file | 1095-U33-100AA_igs
    CAD file | 1095-U33-100AA_stp
