Tube handle, Aluminium black plastic-coated
Tube handle, Aluminium black plastic-coated

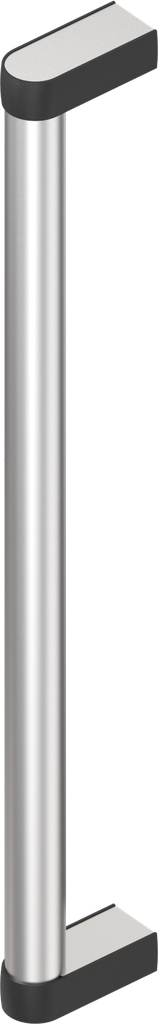

Tube handle, Aluminium anodized; 1095-U30-500NA
A = 500 mm
100% original guarantee
Return within 30days
Free delivery on all orders
Internal Reference:
1095-U30-500NA
Barcode:
1095-U00030-00500na
Product Type:
Handle
Material:
Aluminium
Program:
1095
Surface:
anodized

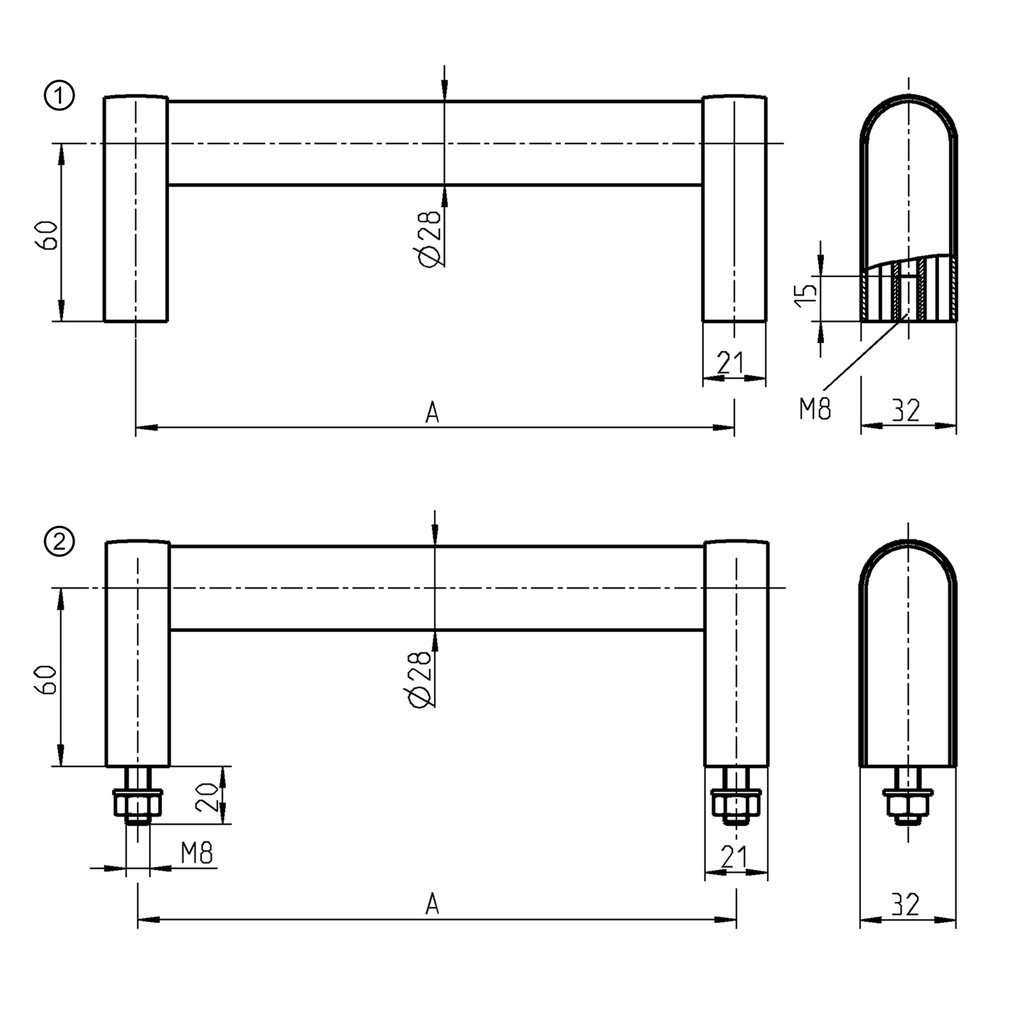

Catalog sheet:
6A-360
Dimension A:
500 mm
Execution:
①
Fixing type of handle:
screw-on from inside
G = thread specification:
M8x15
Handle Art(2):
Fixed handle, tube handle, bow-type handle and machine handle
No Specifications
No Matching Products
Here you can find the product data sheets and CAD files of this product
