Tube handle, Aluminium anodized
Tube handle, Aluminium anodized
Tube handle, Aluminium anodized
Tube handle, Aluminium anodized

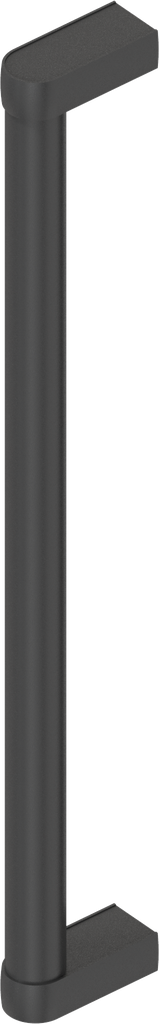

Tube handle, Aluminium black plastic-coated; 1095-U30-500AA

https://20241023-uat.emka.opaas.sh/products/1095-u30-500aa https://20241023-uat.emka.opaas.sh/web/image/product.template/215451/image_1920?unique=2a18f4f

A = 500 mm

    This combination does not exist.

    Contact Us
    Internal Reference: 1095-U30-500AA
    Product Type: Handle
    Material: Aluminium
    Program: 1095
    Surface: black plastic-coated
    Catalog sheet: 6A-360
    Dimension A: 500 mm

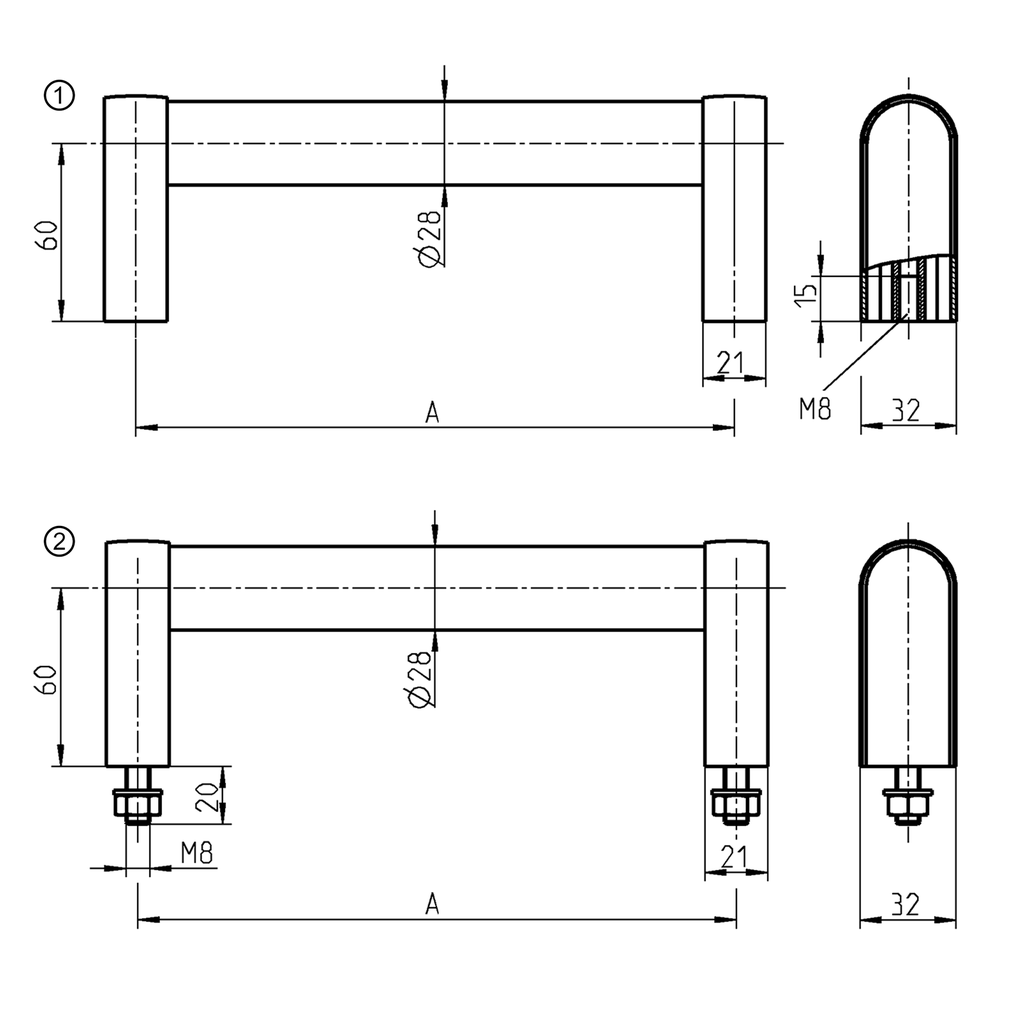

    Execution: ①
    Fixing type of handle: screw-on from inside
    G = thread specification: M8x15
    Handle Art(2): Fixed handle, tube handle, bow-type handle and machine handle
    No Specifications
    No Matching Products
    Here you can find the product data sheets and CAD files of this product
    Main catalogue | 6A-360
    CAD file | 1095-U30-500AA_igs
    CAD file | 1095-U30-500AA_stp
