Bow-type handle, Aluminium blank
Bow-type handle, Aluminium blank

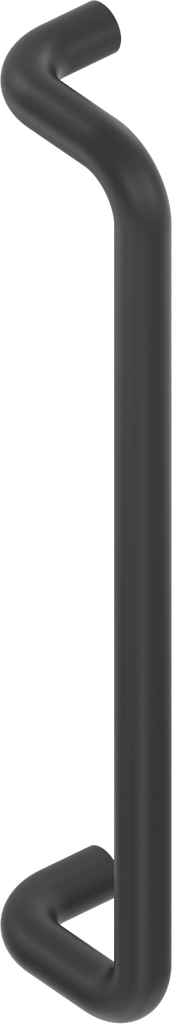

Bow-type handle, Aluminium black plastic-coated; 1095-U25-500AA
A = 500 mm
100% original guarantee
Return within 30days
Free delivery on all orders
Internal Reference:
1095-U25-500AA
Barcode:
1095-U00025-00500aa
Product Type:
Handle
Material:
Aluminium
Program:
1095
Surface:
black plastic-coated
Catalog sheet:
6A-140

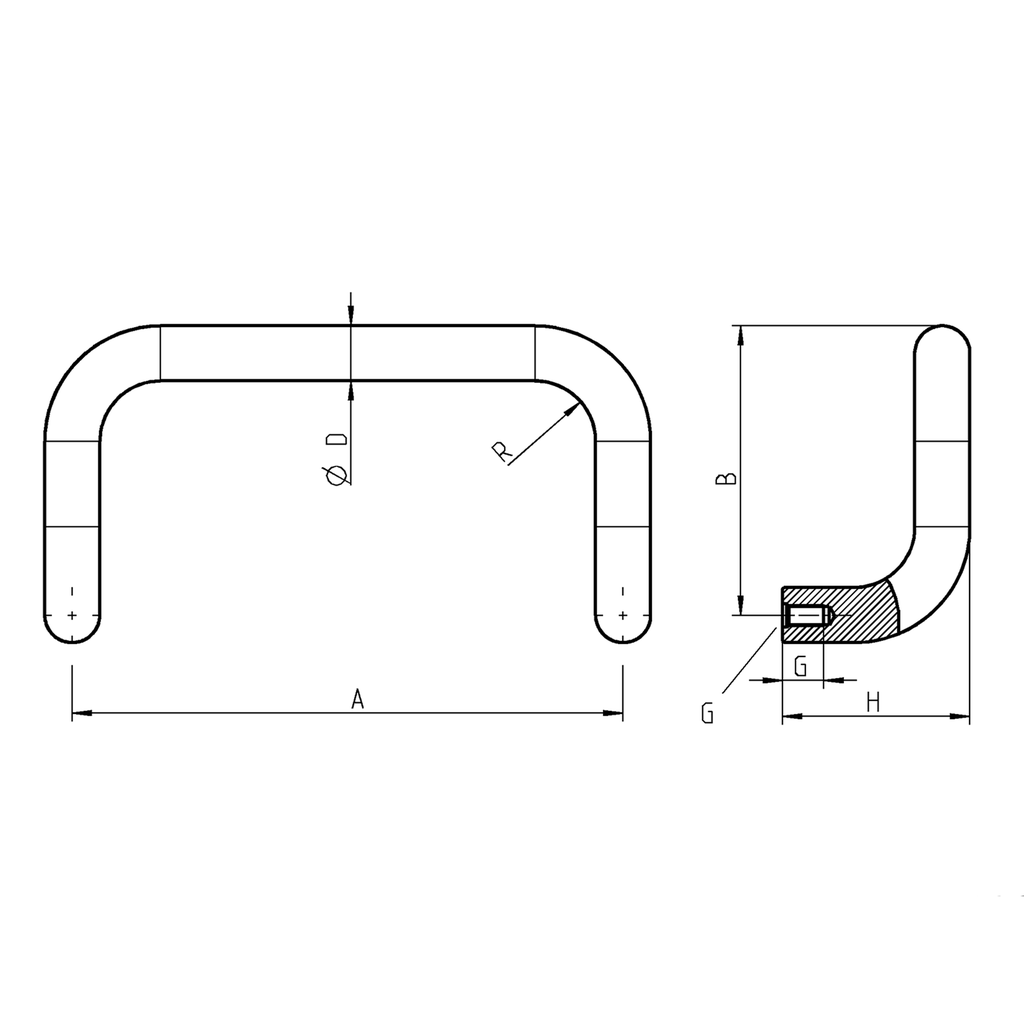

Dimension A:
500 mm
Dimension B:
120 mm
Fixing type of handle:
screw-on from inside
Dimension D:
28 mm
G = thread specification:
M10x15
Handle Art(2):
Fixed handle, tube handle, bow-type handle and machine handle
Dimension H:
78 mm
Dimension R:
32 mm
No Specifications
No Matching Products
Here you can find the product data sheets and CAD files of this product
