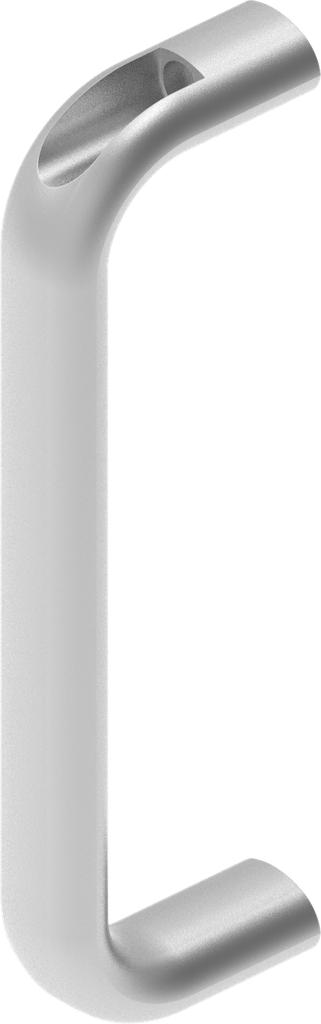

Bow-type handle, Aluminium blank; 1095-42-160KB

https://20241023-uat.emka.opaas.sh/products/1095-42-160kb https://20241023-uat.emka.opaas.sh/web/image/product.template/215284/image_1920?unique=4ac6004

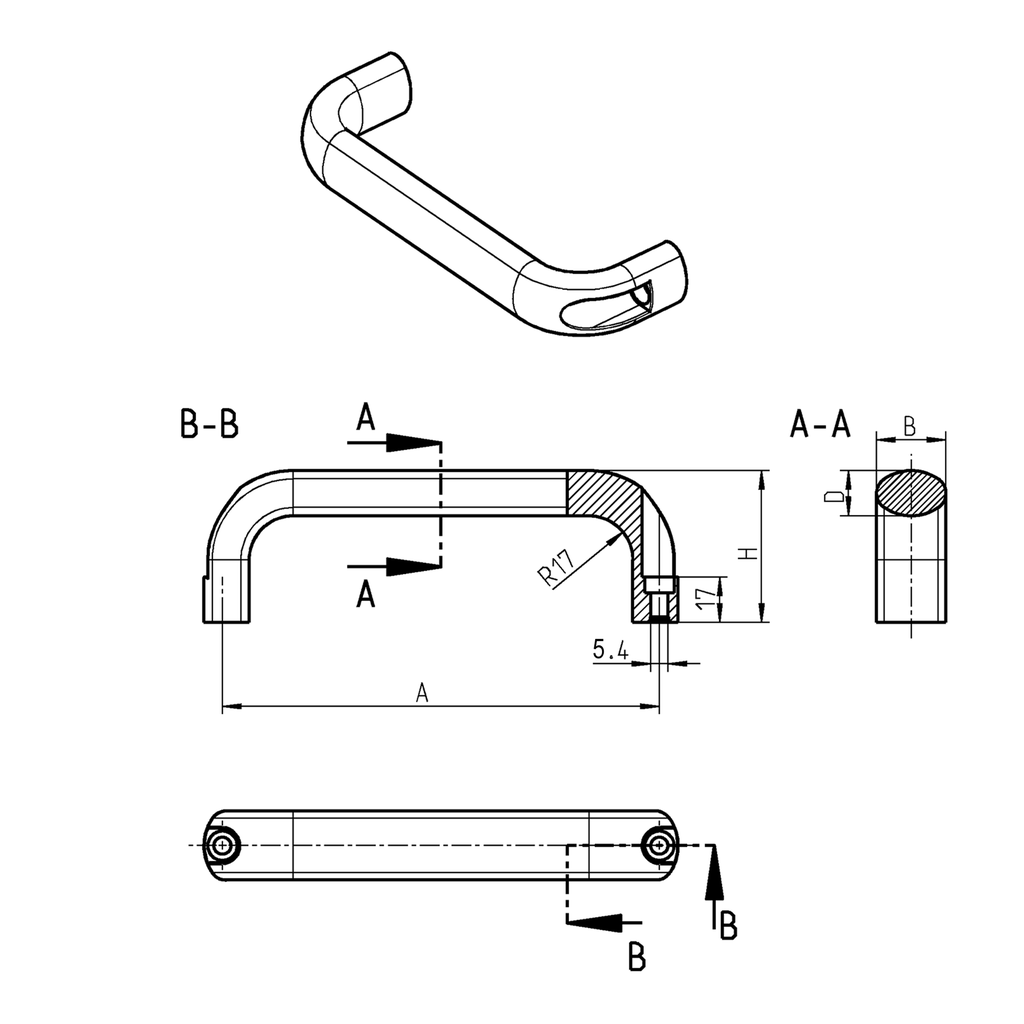

A = 160 mm

    This combination does not exist.

    Contact Us

    Product information:

    Bore hole for hexagon socket head cap screw DIN 4762
    Internal Reference: 1095-42-160KB
    Product Type: Handle
    Material: Aluminium
    Program: 1095
    Surface: blank
    Catalog sheet: 6A-160
    Dimension A: 160 mm
    Dimension B: 30 mm
    Fixing type of handle: screw-on from outside
    Dimension D: 13 mm
    Handle Art(2): Fixed handle, tube handle, bow-type handle and machine handle
    Dimension H: 51 mm
    Dimension R: 13 mm
    No Specifications
    No Matching Products
    Here you can find the product data sheets and CAD files of this product
    Main catalogue | 6A-160
    CAD file | 1095-42-160KB_igs
    CAD file | 1095-42-160KB_stp
