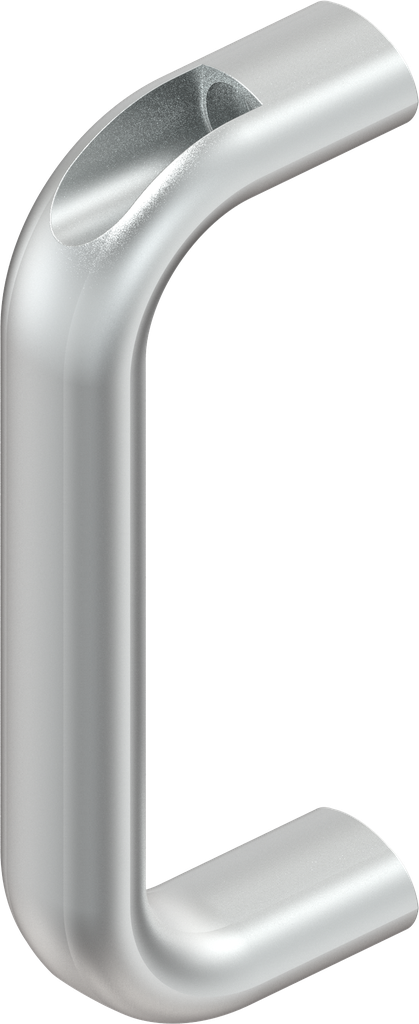

Bow-type handle, Aluminium blank; 1095-42-112KB

https://20241023-uat.emka.opaas.sh/products/1095-42-112kb https://20241023-uat.emka.opaas.sh/web/image/product.template/215276/image_1920?unique=f86255a

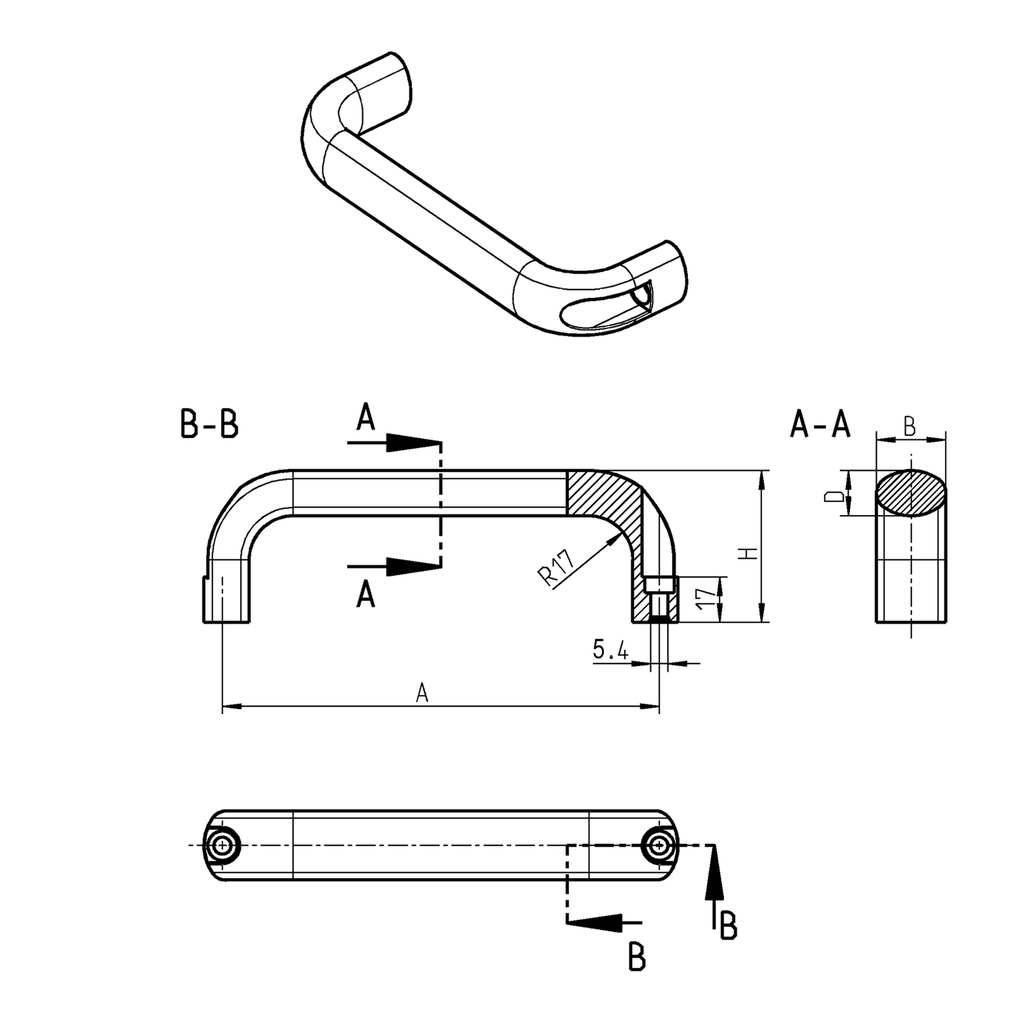

A = 112 mm

    This combination does not exist.

    Contact Us

    Product information:

    Bore hole for hexagon socket head cap screw DIN 4762
    Internal Reference: 1095-42-112KB
    Product Type: Handle
    Material: Aluminium
    Program: 1095
    Surface: blank
    Catalog sheet: 6A-160
    Dimension A: 112 mm
    Dimension B: 20 mm
    Fixing type of handle: screw-on from outside
    Dimension D: 13 mm
    Handle Art(2): Fixed handle, tube handle, bow-type handle and machine handle
    Dimension H: 49 mm
    Dimension R: 13 mm
    No Specifications
    No Matching Products
    Here you can find the product data sheets and CAD files of this product
    Main catalogue | 6A-160
    CAD file | 1095-42-112KB_igs
    CAD file | 1095-42-112KB_stp
